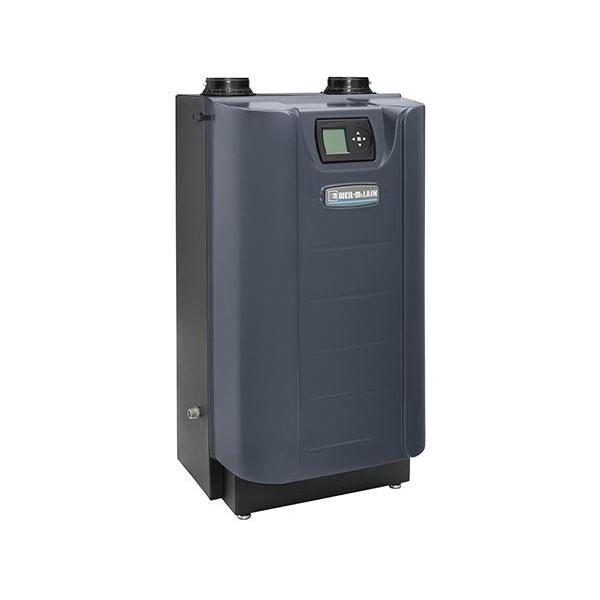

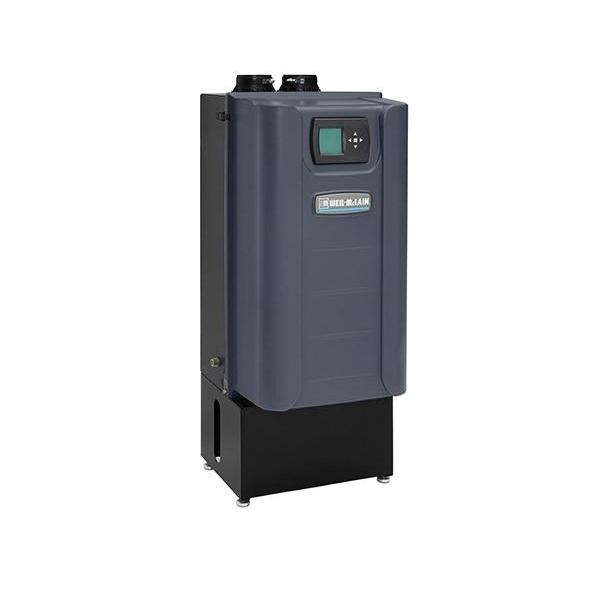

Weil-McLain® 1 Series EVG-110 Gas Boiler, 95 % AFUE, 110 MBtu/hr BTU, 2.5 gal Capacity, 0 to 10 V, Stainless Steel
- Manufacturer: Weil-McLain
- Brand Name: Weil-McLain®
- Part#: WMCEVG-110
- MPN: EVG-110
- UPC: 672619209527
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Weil-McLain® Gas Boiler, 1 Series, 0 to 10 V, 95 % AFUE, 110 MBtu/hr BTU, 2.5 gal Capacity, 30 psi Pressure, Natural Gas, Propane Gas Fuel, Direct Vent, Chimney/Breeching/Vent Size: 3 in, 101 mbh DOE Heating, Net BTU Rating: 88 MBtu/hr, Floor Standing, Wall Mounting, Stainless Steel, Dimensions: 17-5/8 in W x 18-5/8 in D
| AFUE Rating | : | 95 % |
| BTU Rating | : | 110 MBtu/hr |
| Capacity | : | 2.5 gal |
| Chimney/Breeching/Vent Size | : | 3 in |
| DOE Heating Capacity | : | 101 mbh |
| Dimensions | : | 17-5/8 in W x 18-5/8 in D |
| Fuel Type | : | Natural Gas, Propane Gas |
| Material | : | Stainless Steel |
| Mounting Type | : | Floor Standing, Wall |
| Net BTU Rating | : | 88 MBtu/hr |
| Pressure Rating | : | 30 psi |
| Series | : | 1 Series |
| Vent Type | : | Direct |
| Voltage Rating | : | 0 to 10 V |
- Stainless steel fire tube heat exchanger with non-metallic base
- Floor standing or wall mount boiler (optional wall mount kit for 220 to 399 sizes)
- Modulating condensing boiler
- 95% AFUE (110-299), 96.5% combustion efficiency
- Four pump/auxiliary outputs
- Up to 8 multiple boiler control with lead/lag rotation
- Modbus® to BMS connectivity
- Each input can be assigned to a priority (up to three priorities)
- Multiple Inputs can be assigned one priority (zone based control)
- All lag boiler inputs and output can be used
- Configurable auxiliary input/output system
