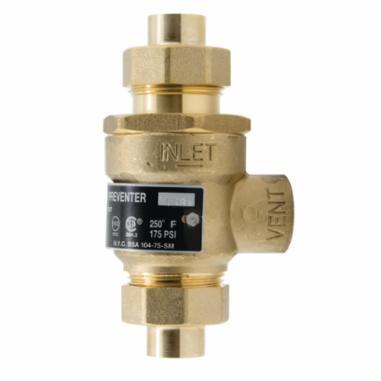

WATTS® 9D Series 9D M3-CAN-12 Check Valve Backflow Preventer With Intermediate Atmospheric Vent, 1/2 in
- Manufacturer: Watts Water Technologies
- Brand Name: WATTS®
- Part#: WTS9D M3-CAN-12
- MPN: 9D M3-CAN-12
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Series 9D dual check valves with intermediate atmospheric vent prevent the reverse flow of hot or cold polluted water from entering into the potable water supply. They have a brass body with stainless steel internal parts, integral strainer and two durable, tight sealing, rubber check valves. Series 9D is designed for continuous pressure, non-health hazard applications in smaller supply lines, such as laboratory equipment, processing tanks, sterilizers, dairy equipment and specifically for boiler feed lines.
WATTS® Check Valve Backflow Preventer With Intermediate Atmospheric Vent, 9D Series, 1/2 in Nominal, Union FNPT x Union Connection, 175 psi Pressure, Media: Water, 4-15/16 in Inlet to Outlet Length, Brass Body, 33 to 250 deg F, Dimensions: 2-9/16 in H
| Body Material | : | Brass |
| Connection Type | : | Union FNPT x Union |
| Dimensions | : | 2-9/16 in H |
| Inlet to Outlet Length | : | 4-15/16 in |
| Media | : | Water |
| Nominal Size | : | 1/2 in |
| Plumbing and Flow Control | : | Plumbing and Flow Control |
| Pressure Rating | : | 175 psi |
| Series | : | 9D Series |
| Temperature Rating | : | 33 to 250 deg F |
- Primary check valve has rubber disc seating against a mating rubber part to ensure tight closing
- Stainless steel internal parts for longevity
- Can be installed vertically or horizontally
- Line sized construction enables check modules to open further, helping to reduce check fouling
- Maximum flow at low pressure drop
- Furnished with union connections to facilitate removal and replacement for maintenance
- Compact for economy combined with performance
- Design simplicity for easy maintenance
