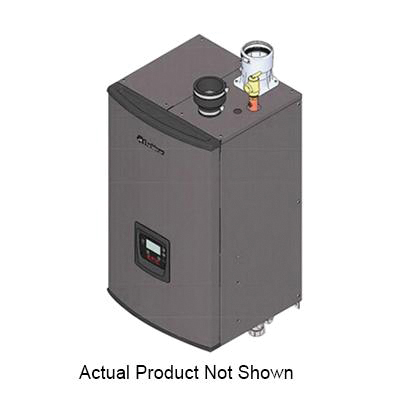

Lochinvar® EPC199N Combination Fire Tube Gas Boiler, 95 % AFUE, 199000 Btu/hr BTU, 120 VAC, 1 ph Phase, Stainless Steel
- Manufacturer: Lochinvar
- Brand Name: Lochinvar®
- Part#: LVREPC199N
- MPN: EPC199N
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Lochinvar® Combination Fire Tube Gas Boiler, 120 VAC, 60 Hz Frequency, 1 ph, 95 % AFUE, 199000 Btu/hr BTU, 8.2 to 10.6 gpm Flow Rate, 50 psi Pressure, 1 in Water, 1/2 in Gas, 3 in Air Inlet Connection, Natural Gas Fuel, Horizontal Direct, Vertical Vent, Low Nox, Modulating Burner, Chimney/Breeching/Vent Size: 3 in, 185 MBtu/hr DOE Heating, Direct Spark Ignition, Net BTU Rating: 161 MBtu/hr, 161 MBtu/hr Net IBR, Wall Mounting, Stainless Steel, 77 deg F, Dimensions: 18-3/4 in L x 18 in W x 32-1/2 in H
| AFUE Rating | : | 95 % |
| BTU Rating | : | 199000 Btu/hr |
| Burner Type | : | Low Nox, Modulating |
| Chimney/Breeching/Vent Size | : | 3 in |
| Connection Type | : | 1 in Water, 1/2 in Gas, 3 in Air Inlet |
| DOE Heating Capacity | : | 185 MBtu/hr |
| Dimensions | : | 18-3/4 in L x 18 in W x 32-1/2 in H |
| Flow Rate | : | 8.2 to 10.6 gpm |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas |
| Ignition Type | : | Direct Spark |
| Material | : | Stainless Steel |
| Mounting Type | : | Wall |
| Net BTU Rating | : | 161 MBtu/hr |
| Net IBR Rating | : | 161 MBtu/hr |
| Phase | : | 1 ph |
| Pressure Rating | : | 50 psi |
| Temperature Rating | : | 77 deg F |
| Vent Type | : | Horizontal Direct, Vertical |
| Voltage Rating | : | 120 VAC |
- Smart control digital operating control LCD display with words not codes
- Outdoor reset control with outdoor air sensor
- Programmable system efficiency optimizers DHW response time, DHW pre-heat and outdoor air reset curve
- 2-pump control system pump and boiler pump
- Low voltage terminal strip air handler interlock, flow switch contacts, Low water cutoff connection, system sensor contacts outdoor air sensor contacts and cascade contacts
- Time clock for data logging last 10 lockouts
- Low water flow safety control and indication
- Password security
- Built-in cascading sequencer for up to 8 units
