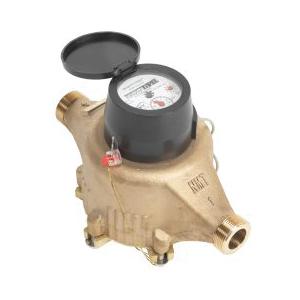

NMT™ PD-Mag™ NMT-PD-MAG-M3-P.1.5 Positive Displacement Water Meter, 1-1/2 in Nominal, 100 gpm Max Flow, Brass Housing
- Manufacturer: Norgas Meter Technologies
- Brand Name: NMT™
- Part#: NRGNMT-PD-MAG-M3-P.1.5
- MPN: NMT-PD-MAG-M3-P.1.5
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The NMT® PD-Mag™ is a No-Lead positive displacement water meter capable of both horizontal and vertical installations for applications such as sub-metering and water utility usage monitoring. The PD-Mag™ complies with AWWA C700 specifications and are listed to both NSF61 (non-toxic) and NSF372 (no lead). With optional pulse output, the PD-Mag™ can also be used with most devices accepting contact closure (reed switch type) inputs such as remote totalizers and wireless transmitters.
NMT™ PD-Mag™ Positive Displacement Water Meter, 1-1/2 in Nominal, 1.5 gpm Minimum Flow Rate, 100 gpm Maximum Flow Rate, 150 psi Maximum Working Pressure, 1 Pulses per Gallon, Brass Housing, 13 in L x 13 in H, Additional Information: 6 mA at 12 VDC Pulse Output, 105 deg F Temperature Rating, 5 to 100 gpm Flow Rate
| Additional Information | : | 6 mA at 12 VDC Pulse Output, 105 deg F Temperature Rating, 5 to 100 gpm Flow Rate |
| Dimensions | : | 13 in L x 13 in H |
| Housing Material | : | Brass |
| Maximum Flow Rate | : | 100 gpm |
| Maximum Working Pressure | : | 150 psi |
| Minimum Flow Rate | : | 1.5 gpm |
| Nominal Size | : | 1-1/2 in |
| Pulses per Gallon | : | 1 |
- Gallons or Cubic Meter Register
- Horizontal & Vertical Installations
- Pulse Output Standard
- NTEP California Approved
- NSF Listed
- Meets AWWA C708
Specification Sheet
