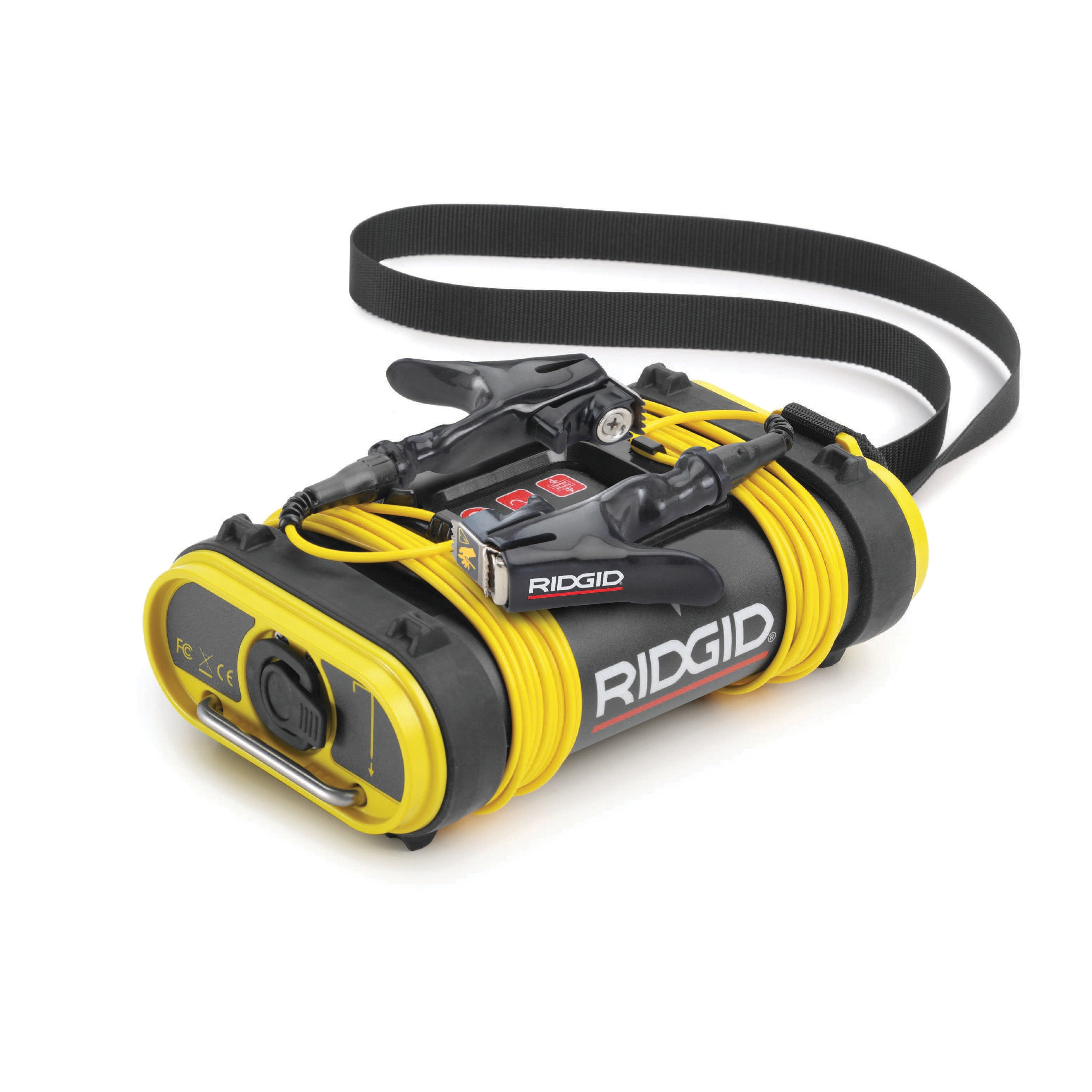

RIDGID® Seektech® 21898 Line Transmitter, 240 V, 1/8 kHz, 33 kHz, 262 kHz
- Manufacturer: Emerson Electric Co
- Brand Name: RIDGID®
- Part#: RIG21898
- MPN: 21898
- UPC: 095691218988
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The RIDGID 5 Watt SeekTech ST-305 Line Transmitter lets you energize metallic lines for tracing and can transmit two frequencies simultaneously. Audio feedback confirms a good circuit before beginning a trace.
RIDGID® Seektech® Line Transmitter, 240 V, 1/8 kHz, 33 kHz, 262 kHz, 4.7 in Overall Length, 7-3/4 in Overall Width, 3 in Overall Height, Additional Information: Model SR-305, C Battery Size
| Additional Information | : | Model SR-305, C Battery Size |
| Frequency Rating | : | 1/8 kHz, 33 kHz, 262 kHz |
| Overall Height | : | 3 in |
| Overall Length | : | 4.7 in |
| Overall Width | : | 7-3/4 in |
| Voltage Rating | : | 240 V |
- Easy to operate: audio feedback confirms your circuit is good.
- Delivers up to 5 watts of power output.
- Can transmit up to 2 frequencies simultaneously; 4 total frequency options allow you to trace lines with less interference.
- Conductive ground rod included.
- Battery-operated, highly portable design.
- Direct Connect: 1 kHz, 8 kHz, 33 kHz, 262 kHz.*
- Induction: 1 kHz, 8 kHz, 33 kHz, 262 kHz.*
- * Up to 93 kHz for devices sold in Europe
