tpi 183A TPI183A
  1. pin-int

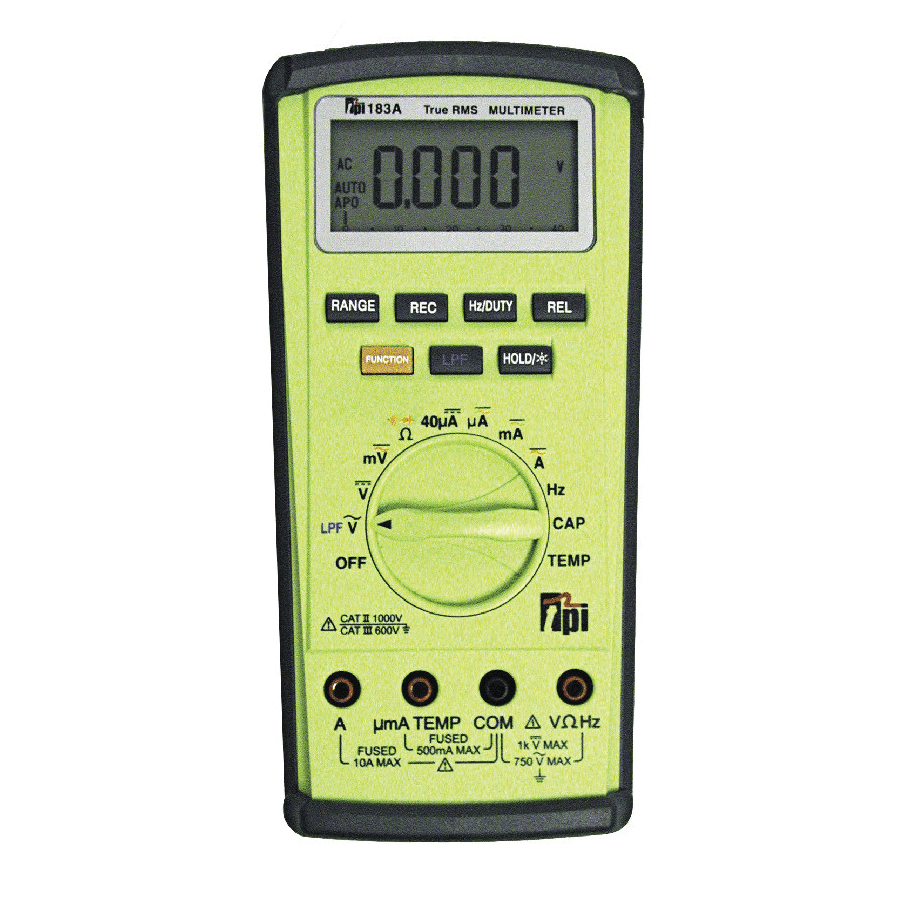

tpi 183A Digital Multimeter, 750 V, 1000 V, 10 A, 40 MOhm, 4000 Count LCD Display

tpi 183A Digital Multimeter, 750 V, 1000 V, 10 A, 40 MOhm, 4000 Count LCD Display

  • Manufacturer: Test Products International Inc
  • Brand Name: tpi
  • Part#: TPI183A
  • MPN: 183A
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

The 183A is a hand-held autoranging DMM. The 183A measures ACV, DCV, ACA, DCA, Resistance, Frequency, Duty Cycle, Diodes, Capacitance, Temperature and Continuity. The meter is also easy to use and built to last.

tpi Digital Multimeter, 750 V, 1000 V, 10 A, 10 MHz, 4000 uF, 40 MOhm Resistance, 0.01 mV, 0.01 uA, 0.1 mOhm Resistance, 0.01 Hz Frequency, 0.01 nF Capacitance, 0.1 deg F/deg C Temperature Resolution, 4000 Count LCD Display, 9 V Alkaline Battery, Voltage Accuracy: +/-1.5%, +/-0.5%, Current Accuracy: +/-1.2%, +/-0.8%, +/-0.05% Ohm Resistance Accuracy, +/-3 % Capacitance Accuracy, +/-2 % Temperature Accuracy, Frequency Accuracy: +/-0.05 %, +/-0.1% + 0.05%/kHz + 1 Count Duty Cycle Accuracy, IR Serial Interface, 0.1 to 99.9 % Duty Cycle, 0 to 80% RH Humidity Rating, 0 to 40 deg C, 7.4 in H x 3.4 in W x 1.3 in D

Amperage Rating      :      10 A
Battery Type      :      9 V Alkaline
Capacitance Accuracy      :      +/-3 %
Capacitance      :      4000 uF
Current Accuracy      :      +/-1.2%, +/-0.8%
Dimensions      :      7.4 in H x 3.4 in W x 1.3 in D
Display Type      :      4000 Count LCD
Duty Cycle Accuracy      :      +/-0.1% + 0.05%/kHz + 1 Count
Duty Cycle      :      0.1 to 99.9 %
Frequency Accuracy      :      +/-0.05 %
Frequency Rating      :      10 MHz
Humidity Rating      :      0 to 80% RH
Interface      :      IR Serial
Resistance Accuracy      :      +/-0.05% Ohm
Resistance      :      40 MOhm
Resolution      :      0.01 mV, 0.01 uA, 0.1 mOhm Resistance, 0.01 Hz Frequency, 0.01 nF Capacitance, 0.1 deg F/deg C Temperature
Temperature Accuracy      :      +/-2 %
Temperature Rating      :      0 to 40 deg C
Voltage Accuracy      :      +/-1.5%, +/-0.5%
Voltage Rating      :      750 V, 1000 V
  • 4,000 count display
  • True RMS for more accurate measurements
  • Auto/manual ranging
  • Temperature measurement
  • Duty cycle to measure the amount of time the motor is on
  • Low pass filter for noisy environments
  • Separate fuse (2) and battery compartment
  • IR serial interface
  • cULus 61010-1
  • CAT II - 1000V, CAT III - 600V
  • Duty cycle (% pulse width modulation) for measuring modulating gas valves
  • IR serial interface that can be used to input data to PC with optional A183
  • High resolution (0.01) low DC microamp range for measuring flame safety control circuit
  • Frequency, capacitance, temperature, data hold, min/max record, relative mode
  • AC/DC volts, AC/DC amps, resistance, audible continuity and diode test
