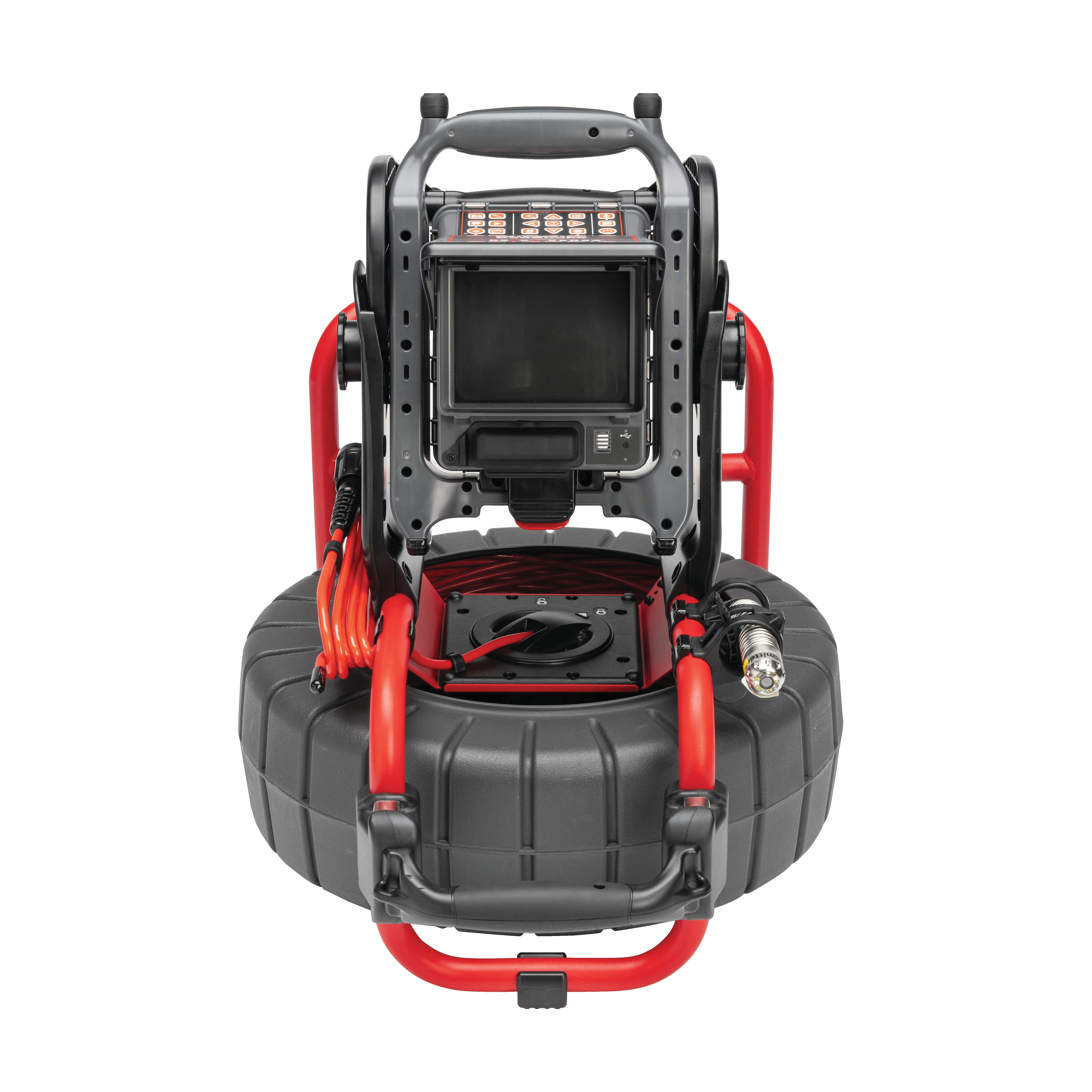

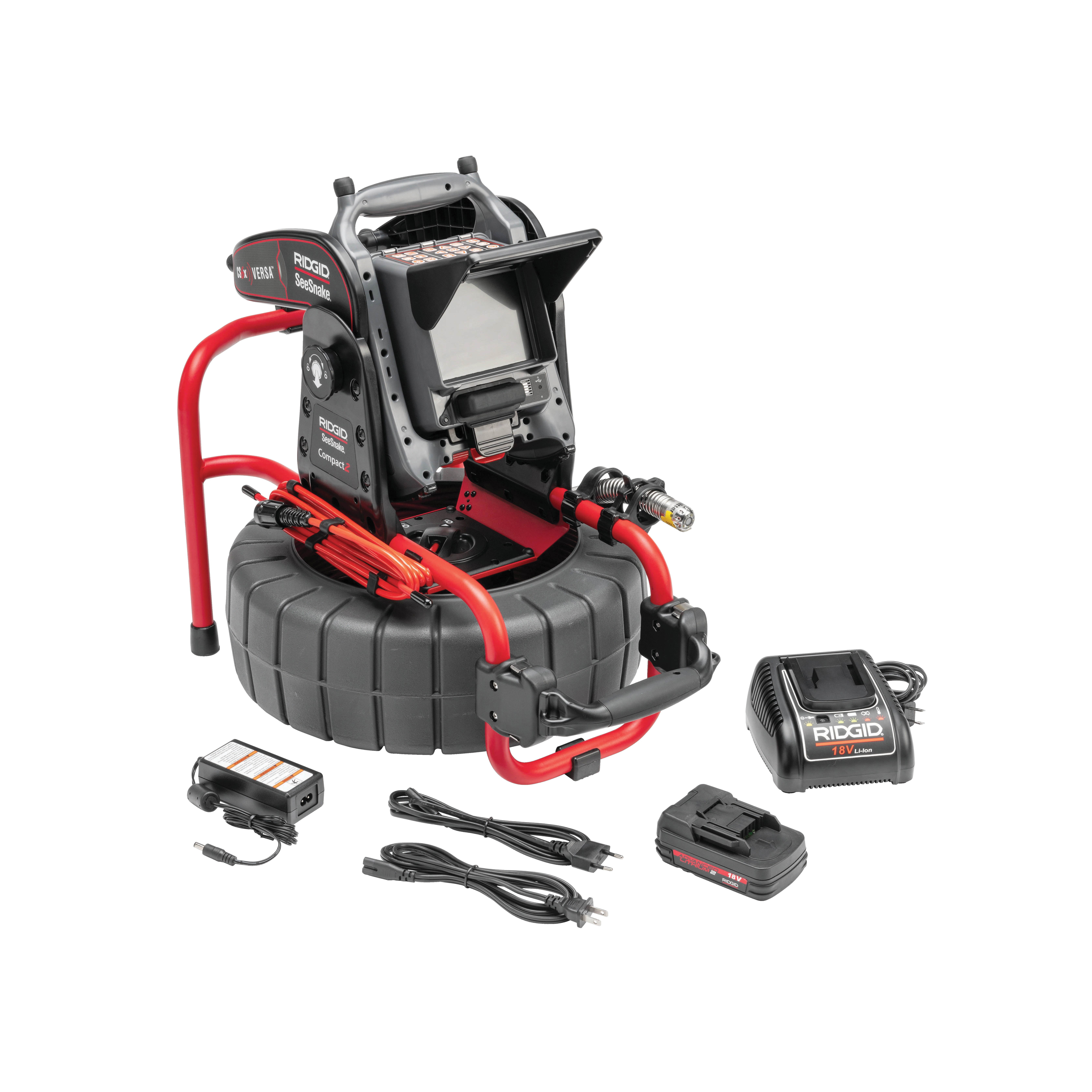

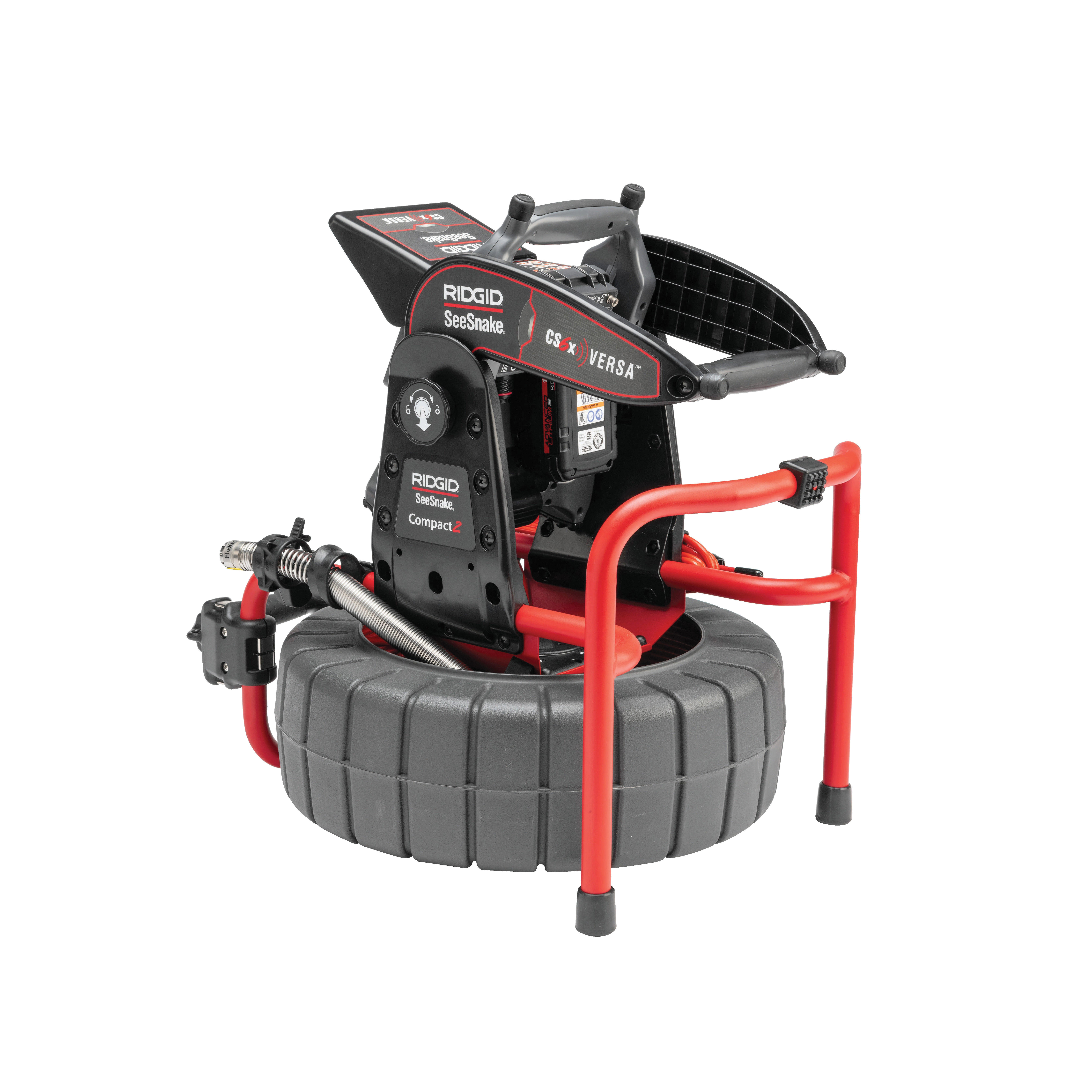

RIDGID® SeeSnake® 65103 Camera Reel and Digital Reporting Monitor, 1 in Camera Size, Stainless Steel

RIDGID's SeeSnake® Compact 2 System packed with CS6x Versa monitor delivers big performance in a small package. The Compact 2 delivers 100' (30 m) of push cable with a 2.5" (63 mm) min bend radius. Self-leveling camera head provides an image that is always upright. Quick-release dock for the CS6x Versa Digital Recording Monitor with Wi-Fi provides fast, efficient job setup. Tilt the monitor to the desired viewing angle while docked or remove it for convenient jobsite placement.

RIDGID® SeeSnake® Camera Reel and Digital Reporting Monitor, 1 in Camera, LED Camera Lighting, 656 x 492 pixel, 768 x 576 pixel Resolution, 2 to 115 V, 512 Hz, 32 to 104 deg F Operating Temperature, Stainless Steel, Black/Red, 25 in L x 14 in W x 17 in H, Additional Information: Round Shape

• 100' (30 m) long, friction-reducing 0.26" (6.7 mm) push cable and a 1" (25 mm) self-leveling camera designed to inspect pipes ranging from 1.5" to 6" (40 mm to 150 mm) in diameter, depending on pipe conditions
• The push cable is stiff enough to give you the power to push through small or restricted pipes, yet flexible enough to make multiple tight turns
• Powerful FleXmitter® sonde has a long range and preserves the camera's ability to make turns
• Sturdy metal frame provides a solid base that makes it easy to push and retrieve the cable
• Quick-release docking system for fast, efficient job setup with the SeeSnake CS6x VERSA monitor
• CS6x VERSA Digital Recording Monitor with Wi-Fi features a pivoting frame with high and low mounting positions to allow flexible placement and optimal viewing on the jobsite
• Download the free HQx Live app to view and record inspection jobs on your phone or tablet
• Push Cable Bend Minimum Radius: 2.5 in (63.5 mm)
• Weight (without batteries): 16.6 lbs, (7.5 kg)
• Size: Length 25 in (63.5 cm), Width 14 in (35.6 cm), Height 17 in (43.2 cm)
• Camera Type: 1 in (25 mm) Self-Leveling
• Resolution: 656 x 492 (NTSC), 768 X 576 (PAL)
• Light Source: 6 LEDs
• Sonde: 512 Hz
• Operating Temperature: 32degF to 104degF (0degC to 40degC)
• Storage Temperature: 14degF to 158degF (-10degC to 70degC)
• Ingress Protection without Monitor: IPx5

• Catalog https://assets.unilogcorp.com/267/ITEM/DOC/RIDGID_65103_Catalog.pdf
• Owners/User Manual https://assets.unilogcorp.com/267/ITEM/DOC/RIDGID_65103_Owners_User_Manual.pdf
• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/RIDGID_65103_Specification_Sheet.pdf
