Tekmar® 078 TEK078
  1. pin-int

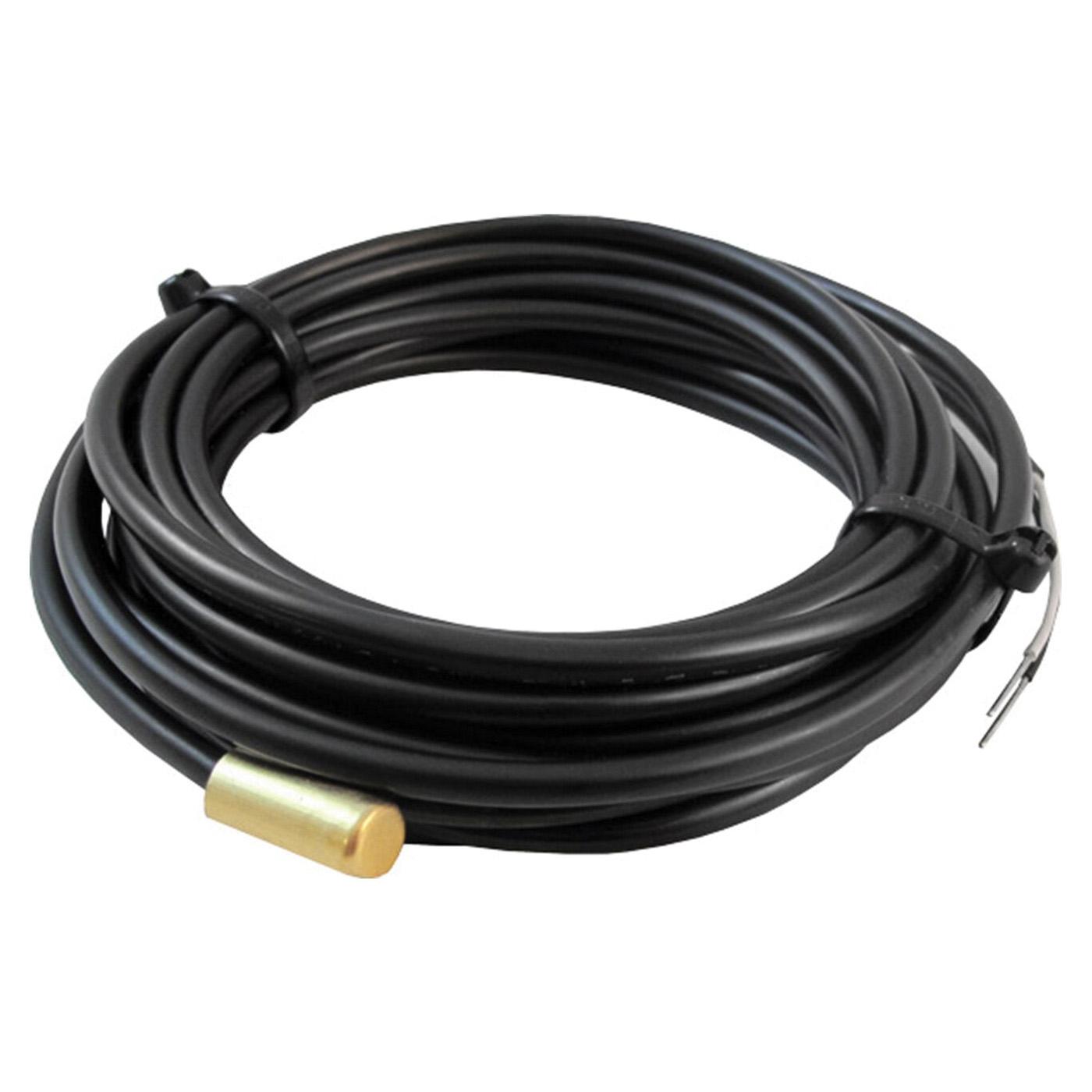

Tekmar® 078 Universal Sensor, -40 to 221 deg F, 15 ft L Wire

Tekmar® 078 Universal Sensor, -40 to 221 deg F, 15 ft L Wire

  • Manufacturer: Watts Water Technologies
  • Brand Name: Tekmar®
  • Part#: TEK078
  • MPN: 078
  • UPC: 779655007800
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

The Universal Sensor 078 is a temperature sensor with a stiff jacketed cable, making it a perfect choice for easy installation into conduit or domestic hot water tank temperature wells. The sensor can also be strapped to a pipe to measure supply or return temperatures.

Tekmar® Universal Sensor, -40 to 221 deg F, 15 ft Wire Length, 300 V, HDPE, Additional Information: 3/8 in OD x 3/4 in L Brass Sleeve, 18 AWG Cable

ATTRIBUTES_EXTENDED      :      Operating Temperature Range--40 to 221 degree F,Outside Diameter-0.38'',Sensor-NTC Thermistor, 10 kOhm at 77 degree F (25 degree C plus /- 0.2 degree C) Beta = 3892,Sensor Material-Brass Sleeve, 15'' 18 AWG, HDPE Jacket, 300 V Cable,Suitable For Use With-Conduit or Domestic Hot Water Tank Temperature Wells
Additional Information      :      3/8 in OD x 3/4 in L Brass Sleeve, 18 AWG Cable
CA Prop 65 Reproductive Risk Substance      :      Lead
Height      :      0.75
Material      :      HDPE
Temperature Rating      :      -40 to 221 deg F
Voltage Rating      :      300 V
Wire Length      :      15 ft
  • Easy installation into domestic hot water tank temperature wells
  • Sensor can also be strapped to a pipe to measure supply or return temperatures
  • Stiff jacketed cable for easy wiring in conduit
  • 10K thermistor
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Tekmar_078_Instruction_Installation_Manual.pdf
  • pdfSubmittal https://assets.unilogcorp.com/267/ITEM/DOC/Tekmar_078_Submittal.pdf
