tpi 605BT TPI605BT
  1. pin-int

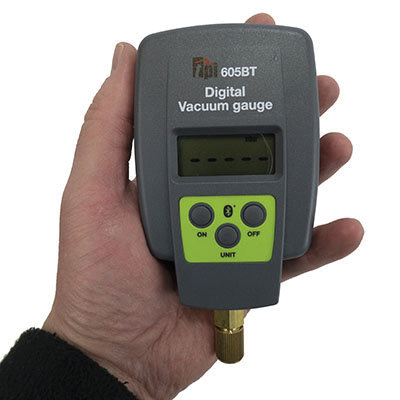

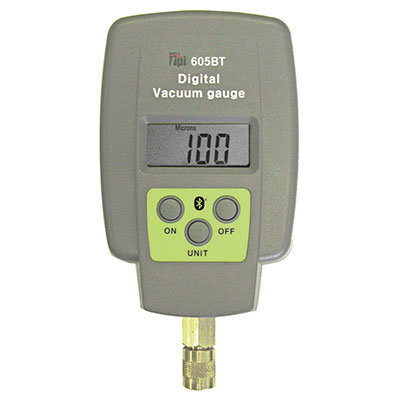

tpi 605BT Digital Vacuum Gauge, 12000 to 15 um Measuring Range, +/-10% of Reading Accuracy

tpi 605BT Digital Vacuum Gauge, 12000 to 15 um Measuring Range, +/-10% of Reading Accuracy

  • Manufacturer: Test Products International Inc
  • Brand Name: tpi
  • Part#: TPI605BT
  • MPN: 605BT
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

tpi Digital Vacuum Gauge, 12000 to 15 um Measuring, +/-10% of Reading Accuracy, 1 um Resolution, 300 psi, 200 hr Battery Life, Alkaline Battery, 5 Digit LCD Display, Additional Information: Bluetooth Version 4.2 Communication, 7 Units (Microns, psi, inHg, mbar, Pascal, Torr, mTorr) Measurement Type

Access Port Gender      :      Male
Accuracy      :      +/-10% of Reading
Additional Information      :      Bluetooth Version 4.2 Communication, 7 Units (Microns, psi, inHg, mbar, Pascal, Torr, mTorr) Measurement Type
App Compatibility      :      TPI View
Automatic Shut-Off Time      :      40 min
Battery Life      :      200 hr
Battery Recharge      :      Not Rechargeable
Battery Type      :      Alkaline
Body Material      :      Plastic
Calibration Certificate Type      :      Not Certified
Connection Gender      :      Male
Connection Material      :      Brass
Connection Size      :      1/4 in
Connectivity      :      Bluetooth
Country of Origin      :      South Korea
Display Location      :      App-Based
Display Pressure - Maximum      :      112,100 micron Hg
Display Pressure - Minimum      :      186 micron Hg
Display Type      :      5 Digit LCD
Display Vacuum - Maximum      :      112,100 micron Hg
Display Vacuum - Minimum      :      186 micron Hg
For Operating System      :      Android™
Includes Batteries      :      Batteries Included
Includes Low Battery Warning      :      Low Battery Warning Included
Measures Temperature      :      Temperature Not Measured
Measuring Range      :      12000 to 15 um
Number of Batteries Required      :      1
Number of Gauges      :      1
Operating Temperature - Maximum      :      122 ��F
Operating Temperature - Minimum      :      14 ��F
Overall Depth      :      1.4 in
Overall Height      :      5.7 in
Overall Width      :      3 in
Power Source      :      Battery
Pressure Rating      :      300 psi
Product Description      :      Wireless digital vacuum gauges measure the negative pressure level in HVAC systems, transmit their readings to the receiver, and display their readings on their digital displays.
Product Type      :      High Pressure Gauge
Programmability      :      Non-Programmable
Resolution - Minimum      :      150 micron Hg
Resolution      :      1 um
Response Time      :      3/10 sec
Sensor Type      :      Permanent Sensor
Standards      :      CE; cULus Listed; RoHS
Units Measured      :      in Hg; mBar; Micron; psi
warranty      :      3 yr
  • Single input with 12000 to 15 micron range
  • Seven units of measure (Microns, PSI, InHg, mBar, Pascals, Torr, mTorr)
  • Display - 5 digit
  • Auto Off - Conserve battery power

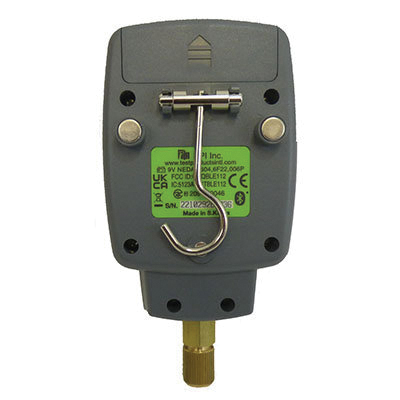

  • Built in hanging hook and back magnets
  • Over pressure protected to 300 psi
  • Cleanable sensor
