Trerice 450B-4.5 0-200 Process Gauge, 4-1/2 in Dial, 0 to 200 psi
- Manufacturer: H.O. Trerice
- Brand Name: Trerice
- Part#: TRE450B-4.5 0-200
- MPN: 450B-4.5 0-200
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability

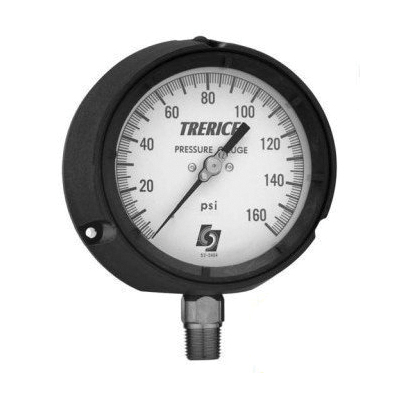

The Trerice 450 Series Process Gauge is designed for the petrochemical and industrial process industries. This solid front, blow-out back gauge is noted for its fiberglass reinforced polypropylene turret case and screwed ring; its sturdy interior design; and its field liquid-fill capability (no kit required). The 450 Series can withstand the most rugged industrial applications, while maintaining precise accuracy. Wetted parts are bronze tube/brass socket, stainless steel, or Monel.
Trerice Process Gauge, 450 Series, 4-1/2 in Dial, 0 to 200 psi Measuring, +/-0.5 % Accuracy, Male Connection, Aluminum Dial Face, Process Gauge Type, Polypropylene, Black, 250 deg F, Additional Information: Model 450B, Bronze Tube Material, Brass Socket Material, Acrylic Window Material
| Accuracy | : | +/-0.5 % |
| Additional Information | : | Model 450B, Bronze Tube Material, Brass Socket Material, Acrylic Window Material |
| Color | : | Black |
| Connection Type | : | Male |
| Dial Face | : | Aluminum |
| Dial Size | : | 4-1/2 in |
| Gauge Type | : | Process |
| Material | : | Polypropylene |
| Measuring Range | : | 0 to 200 psi |
| Series | : | 450 Series |
| Temperature Rating | : | 250 deg F |
- Optional features available: Please consult the Options & Accessories Section for details
- For correct use and application of all pressure gauges, please refer to: Pressure Gauge Standard ASME B40.100
- 41/2" Dial Size
- +/-0.5% Accuracy
- Solid Front/Blow-Out Back
- Field Liquid Fillable
Specification Sheet
