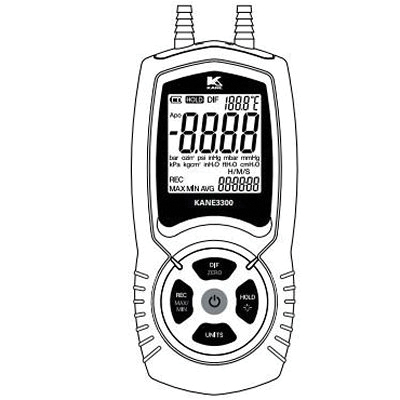

KANE® 3300 Hi-Res Differential Manometer, -80 to +80 inH2O Measuring Range, 32 to 104 deg F, Magnetic Mounting
- Manufacturer: Kane International Ltd
- Brand Name: KANE®
- Part#: KNE3300
- MPN: 3300
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
KANE® Hi-Res Differential Manometer, -80 to +80 inH2O Measuring, +/-0.03% <3 inH2O, +/-1% Reading >3 inH2O Accuracy, Battery, Backlight Display, 0.001 in (-9.999 to +9.999 inH2O), 0.01 in (<-10, >+10 inH2O) Resolution, 80% RH Humidity Rating, 32 to 104 deg F, Magnetic Mounting, 6.25 in H x 2.95 in W x 1.41 in D, Additional Information: 4.5 V Voltage Rating, AA, LR6 Battery Size
| Accuracy | : | +/-0.03% <3 inH2O, +/-1% Reading >3 inH2O |
| Additional Information | : | 4.5 V Voltage Rating, AA, LR6 Battery Size |
| Dimensions | : | 6.25 in H x 2.95 in W x 1.41 in D |
| Display Type | : | Backlight |
| Humidity Rating | : | 80% RH |
| Measuring Range | : | -80 to +80 inH2O |
| Mounting Type | : | Magnetic |
| Power Source | : | Battery |
| Resolution | : | 0.001 in (-9.999 to +9.999 inH2O), 0.01 in (<-10, >+10 inH2O) |
| Temperature Rating | : | 32 to 104 deg F |
- Measurement range: -80 to +80 inH20
- Differential Pressure
- Units of Measure: bar, ozin2, psi, inHg, mbar, mmHg, Pa(kPa), kgcm2, inH2O, ftH2O, cmH2O
- Magnetic Mount
- Backlight
- HOLD
- MAX/MIN/AVG Capture
- Ambient temperature measurement
- Auto Power off
- Low Battery Indicator
- Zero Button
