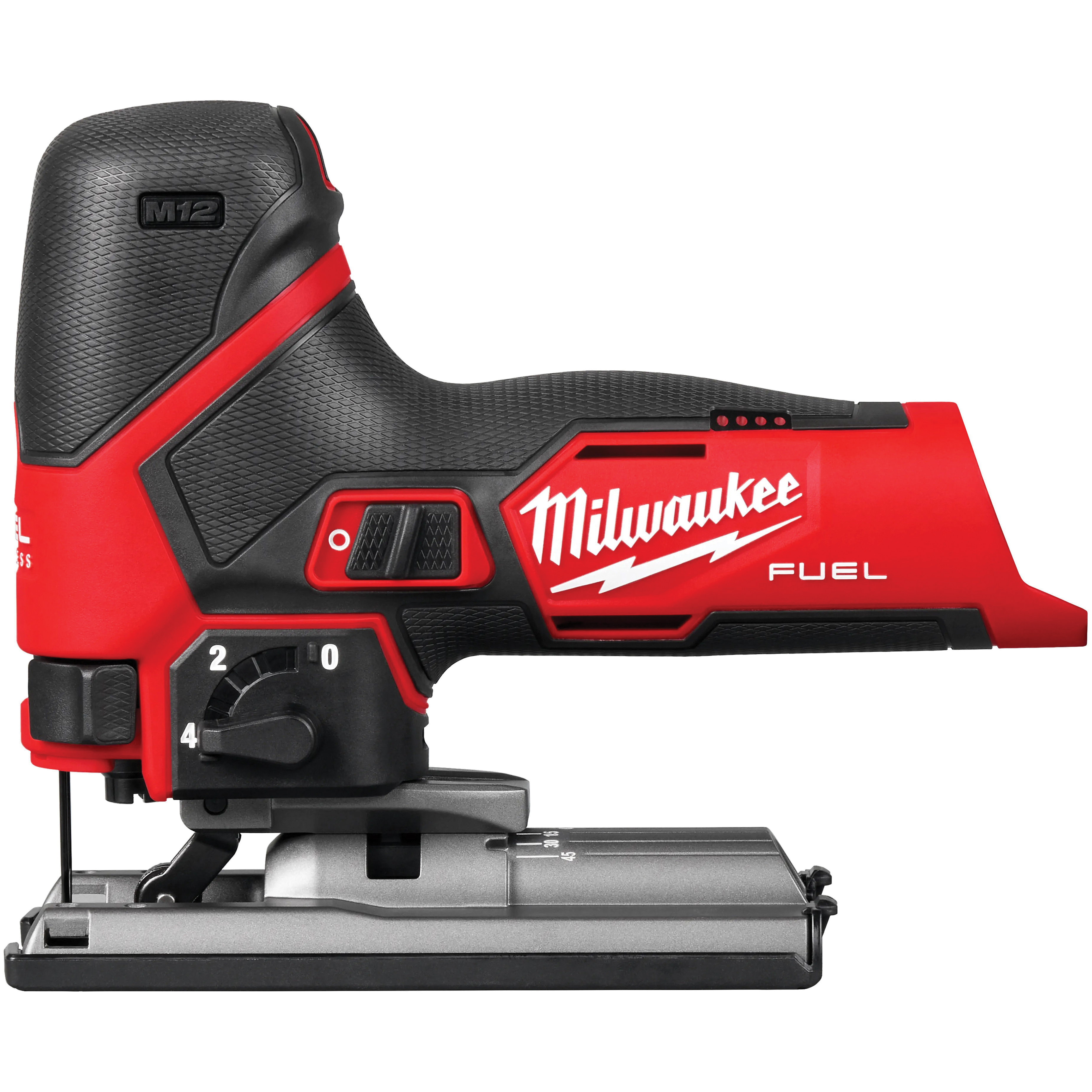

Milwaukee® M12 Fuel™ Series 2545-20 Jig Saw, Tool/Kit: Tool, 7/8 in L Stroke, Orbital Stroke, 12 V, M12™ Battery

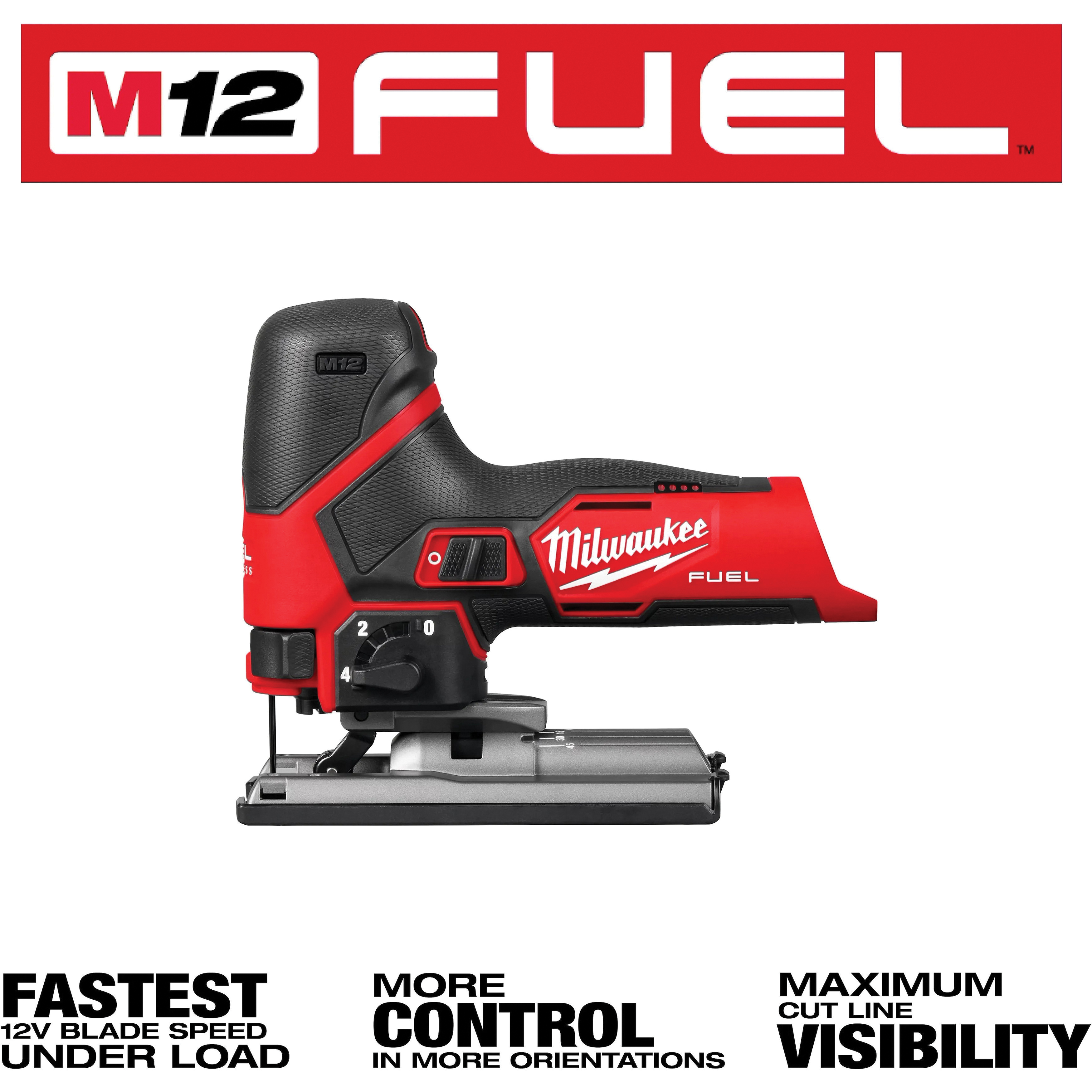

Designed for the professional carpenter and remodeler, our M12 FUEL™ Jig Saw is optimized for power and precision on the jobsite. The M12 FUEL™ Jig Saw delivers the Fastest 12V Blade Speed Under Load, More Control in More Orientations, and Maximum Cut Line Visibility. The POWERSTATE™ Brushless Motor and REDLINK PLUS™ Intelligence deliver 3000 strokes per minute at a 7/8" stroke for clean, controlled cuts in a wide variety of finish materials. The compact size, low vibration, and ergonomic barrel-grip design provide more control across standard and inverted orientations of usage. The saw is equipped with an on/off LED light and on/off dust blower to optimize cut line visibility for the application at hand. Our M12™ FUEL Jig Saw features orbital action with 5 adjustment levels, variable speed dial, blade storage, tool-less blade change, a durable aluminum base plate with bevel detents, and carries our industry-leading 5-year limited power tool warranty.

Milwaukee® Jig Saw, M12 Fuel™ Series, Tool, 7/8 in Stroke Length, Orbital Stroke, 0 to 45 deg Base Tilt Angle, 12 V, M12™ Battery, 800 to 3000 spm, 5 Speed Setting, Metal Housing, Black/Red Housing, Barrel Grip, Ergonomic Handle, 8.9 in Overall Length, 2.9 in Overall Width, 7.2 in Overall Depth, Additional Information: 0 to 125 deg F Operating Temperature, POWERSTATE™ Brushless Motor

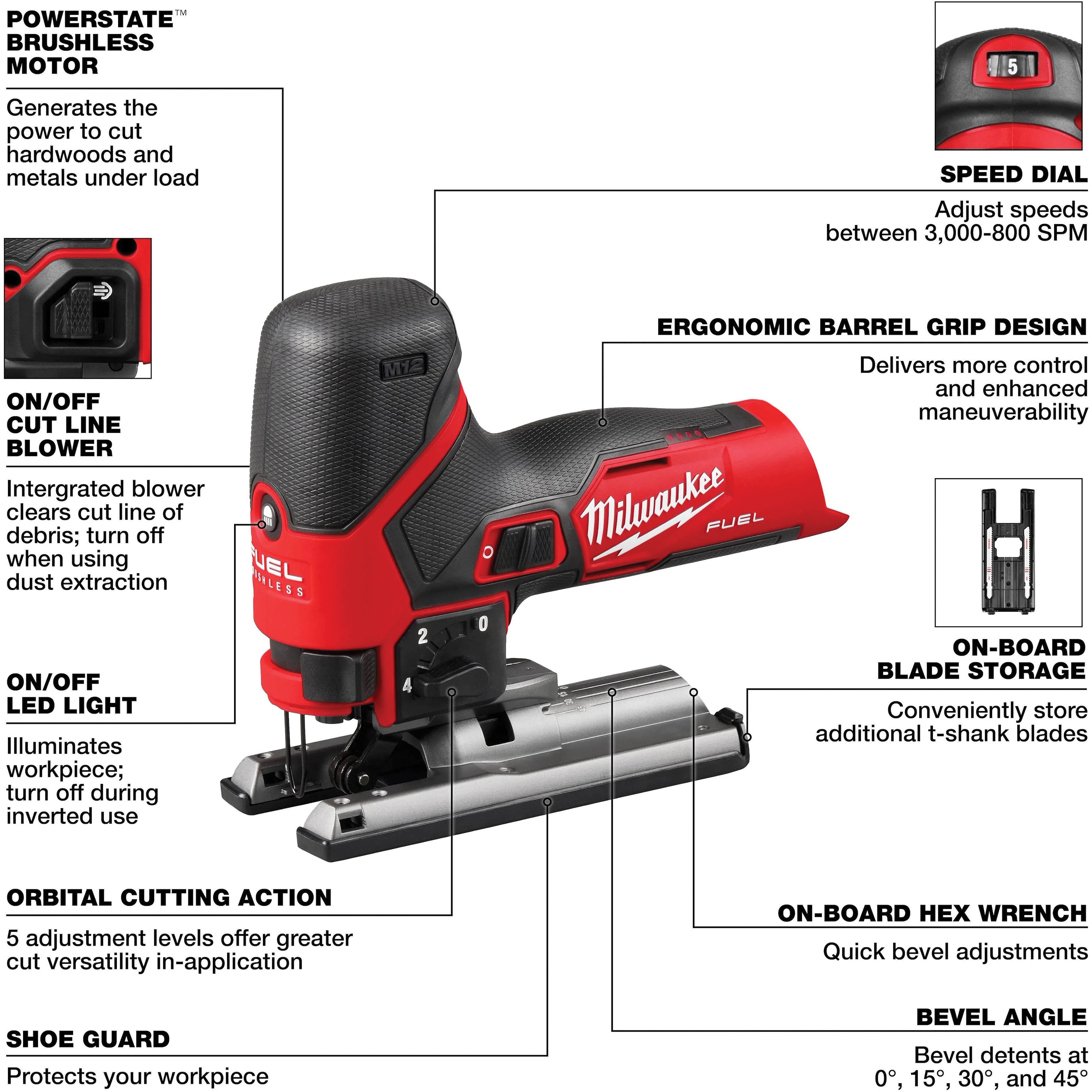

• POWERSTATE™ Brushless Motor: Generates the power to cut hardwoods and metals under load.
• REDLINK PLUS™ Intelligence: Ensures maximum performance and protects from overloads, heating, and over-discharge.
• Ergonomic barrel grip design delivers more control and enhanced maneuverability.
• Variable speed dial provides 5 adjustment settings that range from 3000 - 800 SPM.
• Orbital action with 5 adjustment levels offers greater cut versatility in application.
• LED light illuminates the workpiece and allows user to turn off during inverted use.
• Integrated blower clears the cut line of debris and allows user to turn off when using dust extraction.
• Accepts T-Shank jig saw blades.
• On-board blade storage
• Tool-free quick eject blade change
• Durable aluminum base plate with bevel detents at 0 deg , 15 deg , 30 deg , and 45 deg .

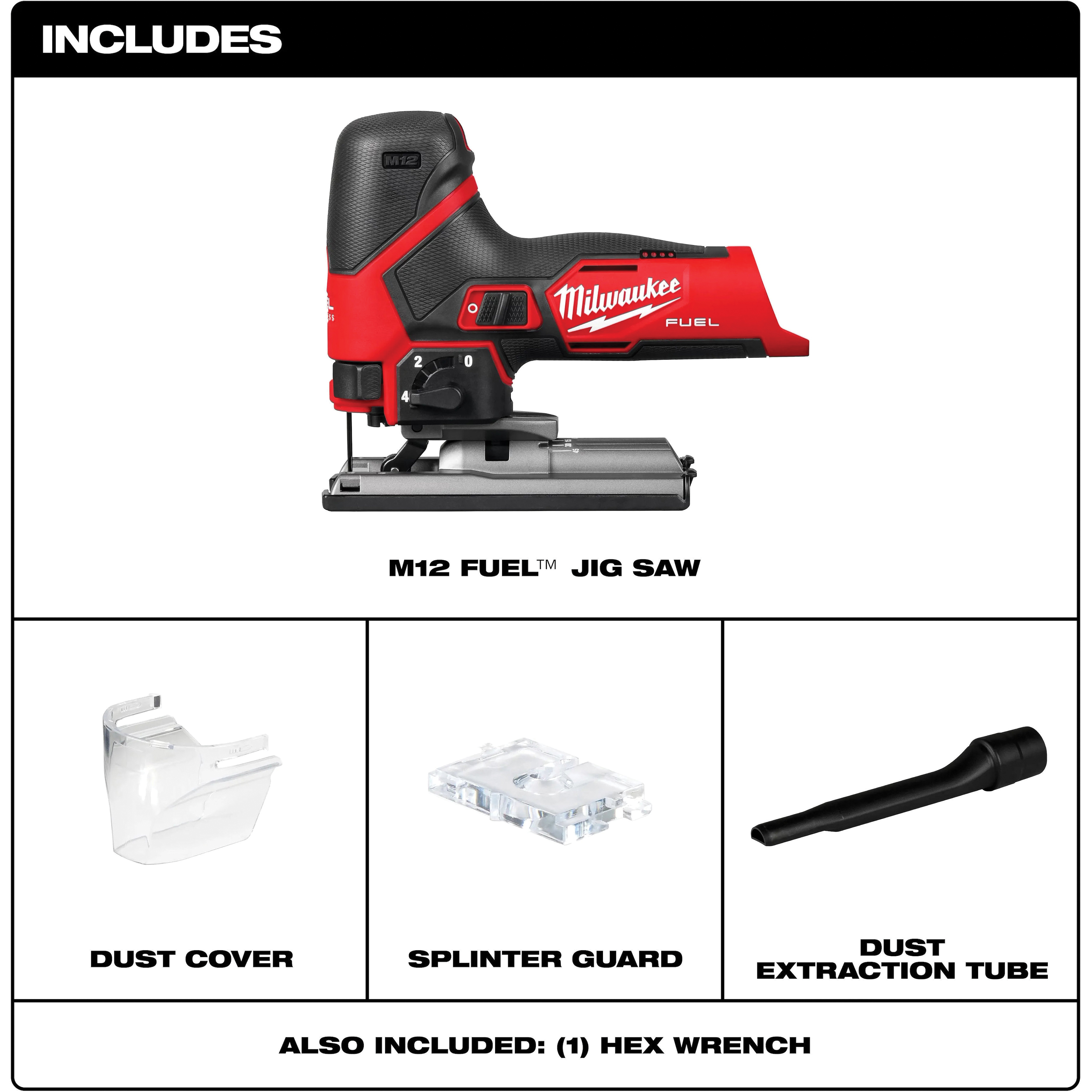

• Includes Dust Cover, Splinter Guard, Shoe Cover, Vacuum Shroud
• On-board hex wrench for quick, efficient bevel adjustments.
• Compatible with over 125+ tools on the M12™ System.

• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Milwaukee_2545_20_Instruction_Installation_Manual.pdf
