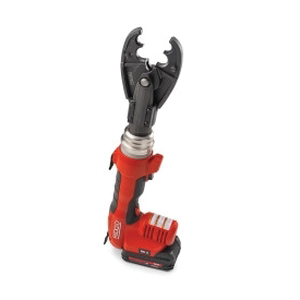

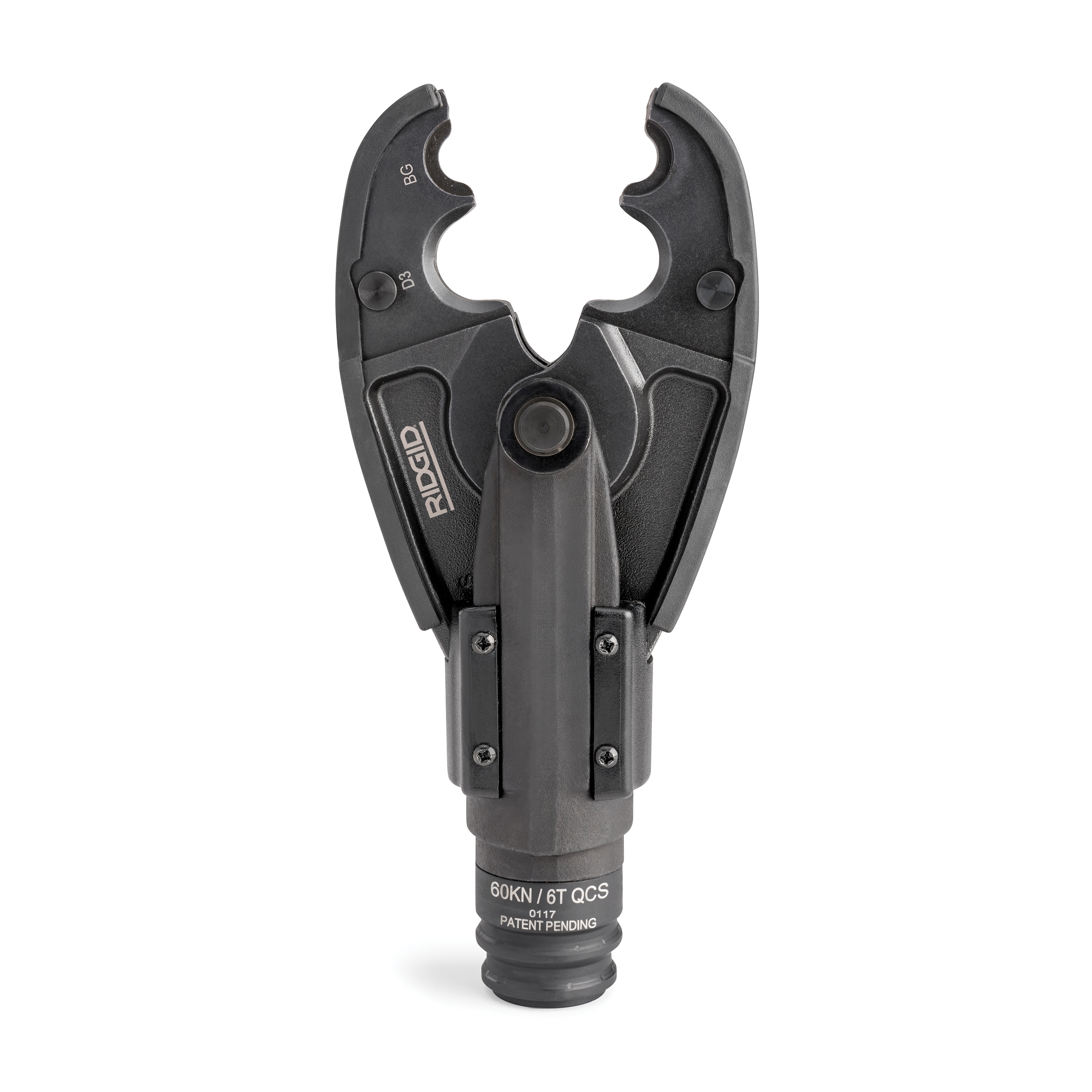

RIDGID® 56793 Die Crimp Head, For Use With: Model UC-60BG Utility Crimp Heads
- Manufacturer: Emerson Electric Co
- Brand Name: RIDGID®
- Part#: RIG56793
- MPN: 56793
- UPC: 095691567932
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability

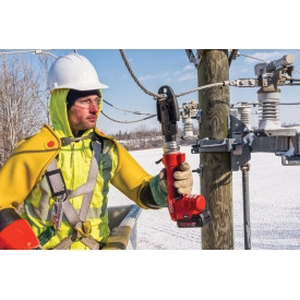

The UC-60 Utility Crimp Heads are ideal for both overhead and underground applications for Utility linemen and service crews.
RIDGID® Die Crimp Head, Specifications: 10 x 4-1/2 in, For Use With: Model UC-60BG Utility Crimp Heads, Additional Information: 360 deg Head Rotation
| Additional Information | : | 360 deg Head Rotation |
| Specifications | : | 10 x 4-1/2 in |
| Suitable For Use With | : | Model UC-60BG Utility Crimp Heads |
- The game-changing RIDGID® RE 6 Cable Termination Tool is now even better with the addition of the UC-60 Utility Crimp Head. Ideal for utility linemen or service crews working on overhead or underground applications, the UC-60 Utility Crimp Head is the fifth interchangeable option for the RE 6.
- The UC-60 Crimp Head is designed to crimp copper taps up to 2/0, AL and ACSR taps, stirrups, tension splices up to 4/0 ACSR, compression lugs and splices from #8 - 500MCM Cu/350MCM AL, and service entrances up to 4/0 ACSR. The crimp head comes in two models, each model containing two profiles: Fixed BG and D3 profiles that accept W-Dies or Fixed O and D3 profiles that accept W-Dies.

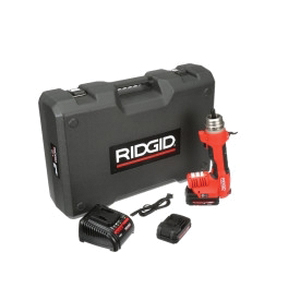

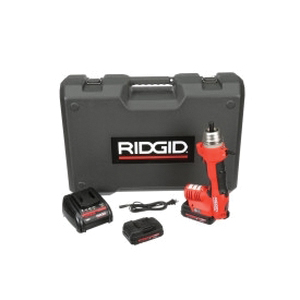

- The RE 6 - a multifunctional, battery-powered single-tool solution for cutting wires, crimping lugs and punching electrical boxes - features a patented QuickChange System™ that incorporates a moveable collar that lets contractors quickly and easily switch between interchangeable heads. Along with the UC-60, other head options include the SC-60C Scissor Cutter Head with ACSR blades, the 4P-6 4PIN™ Dieless Crimp Head, the Swiv-L-Punch Knockout Punch Head, and LR-60B Latching Round Die Crimp Head.
- "The great thing about the RE 6 Cable Termination Tool is that users only purchase the heads they need for the work they do. Every case is completely customizable. For utility linemen a great initial set of heads is the UC-60, the SC-60C ACSR, and the 4P-6 4PIN," said Gina Hartman, RIDGID Global Marketing Manager. "Having a dieless crimping head also prevents users from possibly losing dies and taking up unnecessary tool bag space."
