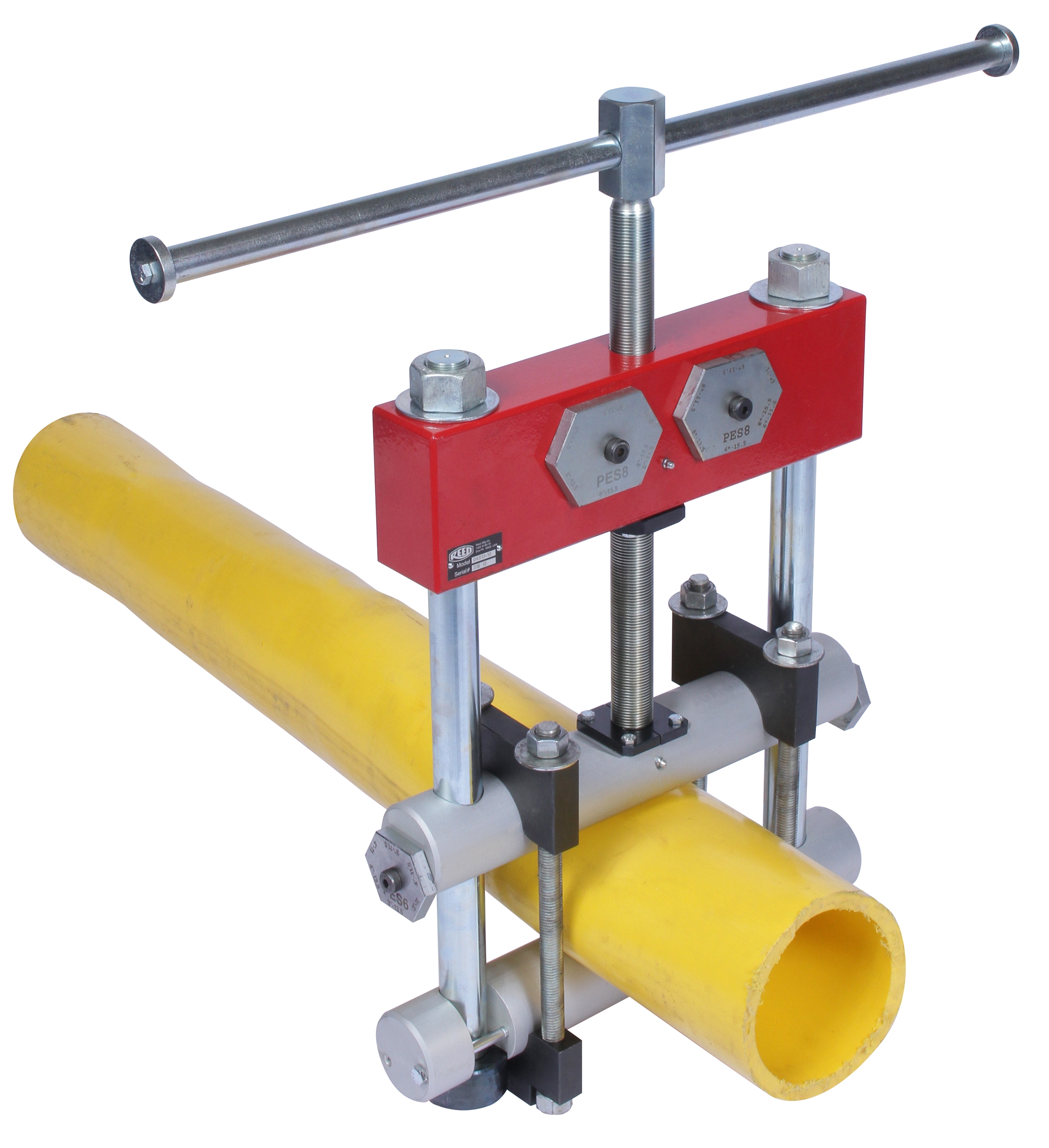

REED PES6M Manual Squeeze Tool, 3 to 6 in Capacity, 28 in OAL
- Manufacturer: Reed Manufacturing Company
- Brand Name: Reed
- Part#: REDPES6M
- MPN: PES6M
- UPC: 757033043138
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
REED offers the best designed tools for stopping flow in PE pipe. Different models handle a wide range of pipe sizes and applications. Sliding bar handles on these medium duty squeeze tools make work in tight places easier and increase leverage for tightening. Fine-pitched thread on feed screw allows for a controlled, low-effort squeeze. Grease fittings at friction points make operation smoother and extend tool life. Aluminum bars are anodized or painted for protection from the elements. All PE Squeeze Tools use positive stops to prevent damage caused by over-clamping. Multiple size/SDR settings on one pair of stops provide quick, convenient over-squeeze protection for standard pipe sizes. REED Squeeze-Off Tools for all US nominal pipe sizes follow these standards: ASTM F1734, ASTM F1041, ASTM F1563. For all the metric pipe sizes, they follow ISO 4437 standards. NOTE: REED strongly recommends use of the PEGR7 Static Grounding Device (#04621) with PE Squeeze-Off Tools. Use a grounding device as a precaution against static build-up. Dissipate the charge and minimize the possibility of ignition.
REED Manual Squeeze Tool, 3 to 6 in Capacity, 28 in Overall Length, 33 in Overall Width, 3-3/4 in Overall Height, Additional Information: 89 to 168 mm OD Dimensions, Manual Tool, 116 lb Weight
| Additional Information | : | 89 to 168 mm OD Dimensions, Manual Tool, 116 lb Weight |
| Capacity | : | 3 to 6 in |
| Overall Height | : | 3-3/4 in |
| Overall Length | : | 28 in |
| Overall Width | : | 33 in |
- Aluminum parts reduce tool weight for easier handling
- Positive stops prevent damage caused by over-clamping
- Multiple size/SDR stops on one pair of stops allow using one Reed tool for quick, convenient over-squeezing protection on a variety (see Pipe/SDR Stops above) of sizes

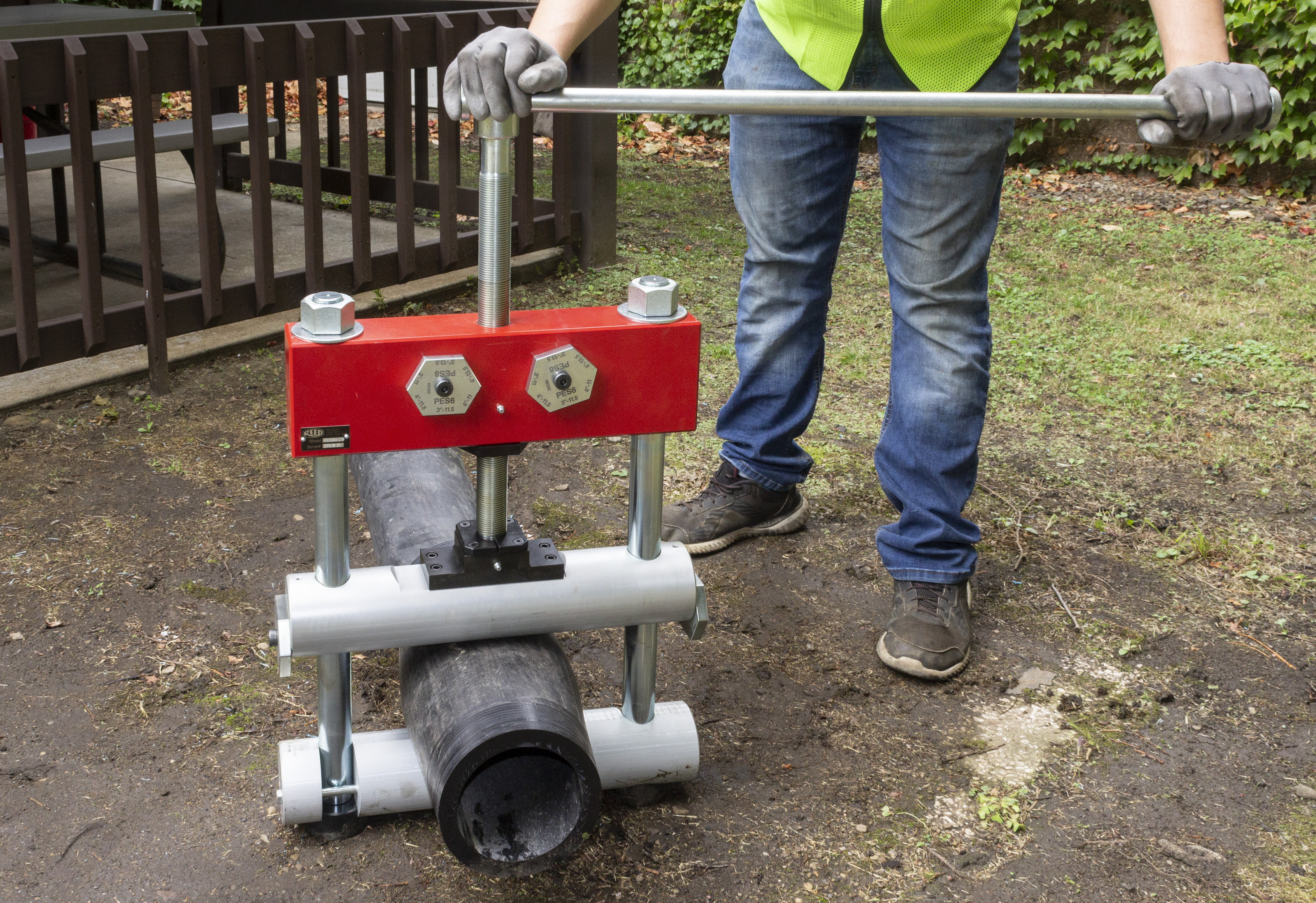

- Sliding bar handles make work in tight places easier and increase leverage for tightening
- Machined aluminum squeeze bars are anodized or painted to withstand varied climate and soil conditions
- Fine-pitched thread permits a controlled, low-effort squeeze
- Easy to use in line because of swing bar and no loose parts
- Includes an optional-use strap for lifting
