RIDGID® 74718 Pipe Patch Kit, For Use With: 4 to 6 in Pipe x 6 ft Repair Packers
- Manufacturer: Emerson Electric Co
- Brand Name: RIDGID®
- Part#: RIG74718
- MPN: 74718
- UPC: 095691747181
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability

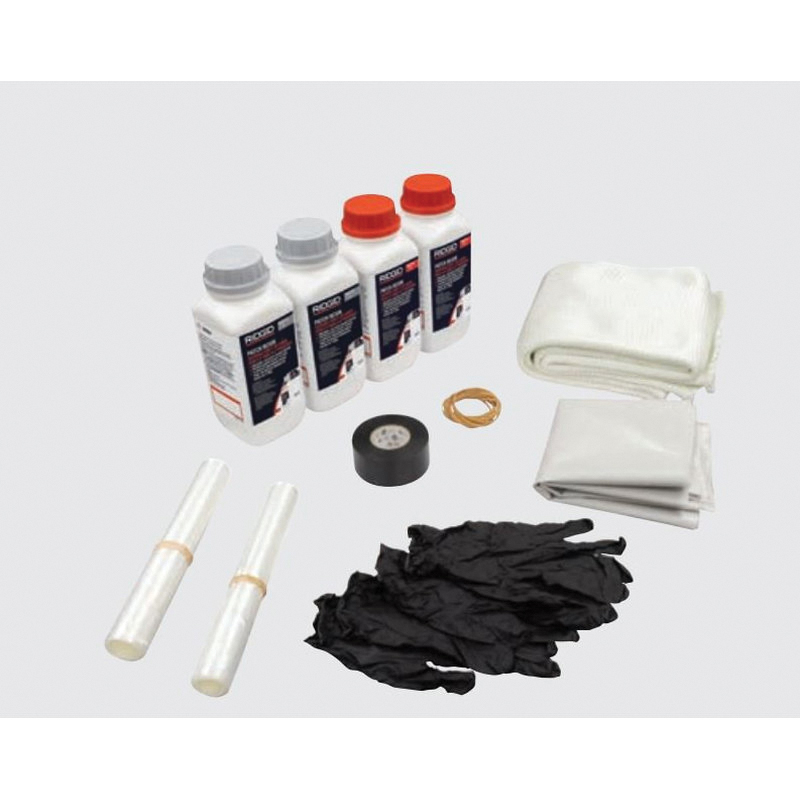

The RIDGID Pipe Patch Kits enable quick and efficient trenchless point repairs with all required consumables and components packaged together for one-time use. Patch Kits make inventory management easier on your business while ensuring you have all components needed when showing up to a job. Fiberglass patch meets ASTM F1216 requirements and cured patches have a life expectancy range of up to 50 years under normal conditions. RIDGID Pipe Patch Kits are designed for 2", 3", 3-4", and 4-6" Packers and at lengths for 32", 3', and 6' repairs.
RIDGID® Pipe Patch Kit, Polymer, For Use With: 4 to 6 in Pipe x 6 ft Repair Packers, Additional Information: 15 min at 68 deg F Resin Working Time, 90 min Resin Set Time, 240 min Final Hardness Time, 365 days Resin Shelf Life, 41 to 113 deg F Resin Storage Temperature, Fiberglass Liner Material, 0.16 in Typical Patch Thickness, 34889 psi Typical Patch Tensile Strength, White Color, Bottle Shape, Less Handle
| Additional Information | : | 15 min at 68 deg F Resin Working Time, 90 min Resin Set Time, 240 min Final Hardness Time, 365 days Resin Shelf Life, 41 to 113 deg F Resin Storage Temperature, Fiberglass Liner Material, 0.16 in Typical Patch Thickness, 34889 psi Typical Patch Tensile Strength, White Color, Bottle Shape, Less Handle |
| Battery Included | : | No |
| Blue Tooth | : | No |
| CA Prop 65 Chemcial Names | : | DEHP |
| Capacity Max | : | 6 IN / 152.4 MM |
| Capacity Min | : | 4 IN / 101.6 MM |
| Color | : | White |
| Handle Type | : | Less Handles |
| Height | : | 12 IN / 304.8 MM |
| Length | : | 12 IN / 304.8 MM |
| Material | : | Polymer |
| Maximum Operating Temperature | : | 68 F / 20 C |
| Minimum Operating Temperature | : | 41 F / 5 C |
| Power | : | None |
| Shape | : | Bottle |
| Suitable For Use With | : | 4 to 6 in Pipe x 6 ft Repair Packers |
| Type | : | None |
| WiFi | : | No |
| Width | : | 8 IN / 203.2 MM |
- Thoughtfully designed Pipe Patch Kits enable quick and efficient repairs with all required consumables and components packaged together for one-time use.
- Durable, fiberglass liner is rated for small sections of damaged pipe and meets ASTM F1216 requirements; cured patches are rated up to 50 year life expectancy under normal conditions.
- Two part silicate resins come pre-measured in clearly labeled bottles including Part A waterglass activator and Part B base hardener. Simply mix Part A into Part B and shake to begin the wet out and curing processes.
- Up to 15 minutes of work time and minimum of 90 minutes of resin set time at 65deg Fahrenheit.
- Patch Tape & Elastic Bands adhere packer sleeve to the Packer while preventing it from being dislodged during transport through the pipe. Elastic Bands do not break during inflation, allowing you to deflate and adjust Packer location if needed.
- Table covering & packer sleeves protect workspace and Packer from resin and environmental hazards such as scale and other debris.
- Minimal customer impact to landscaping, fauna & business productivity when compared to digging and full relining.
- Extensive Offering - Pipe Patch Kits designed for 2", 3", 3-4", and 4-6" Packers and at lengths for 32", 3', and 6' repairs.
