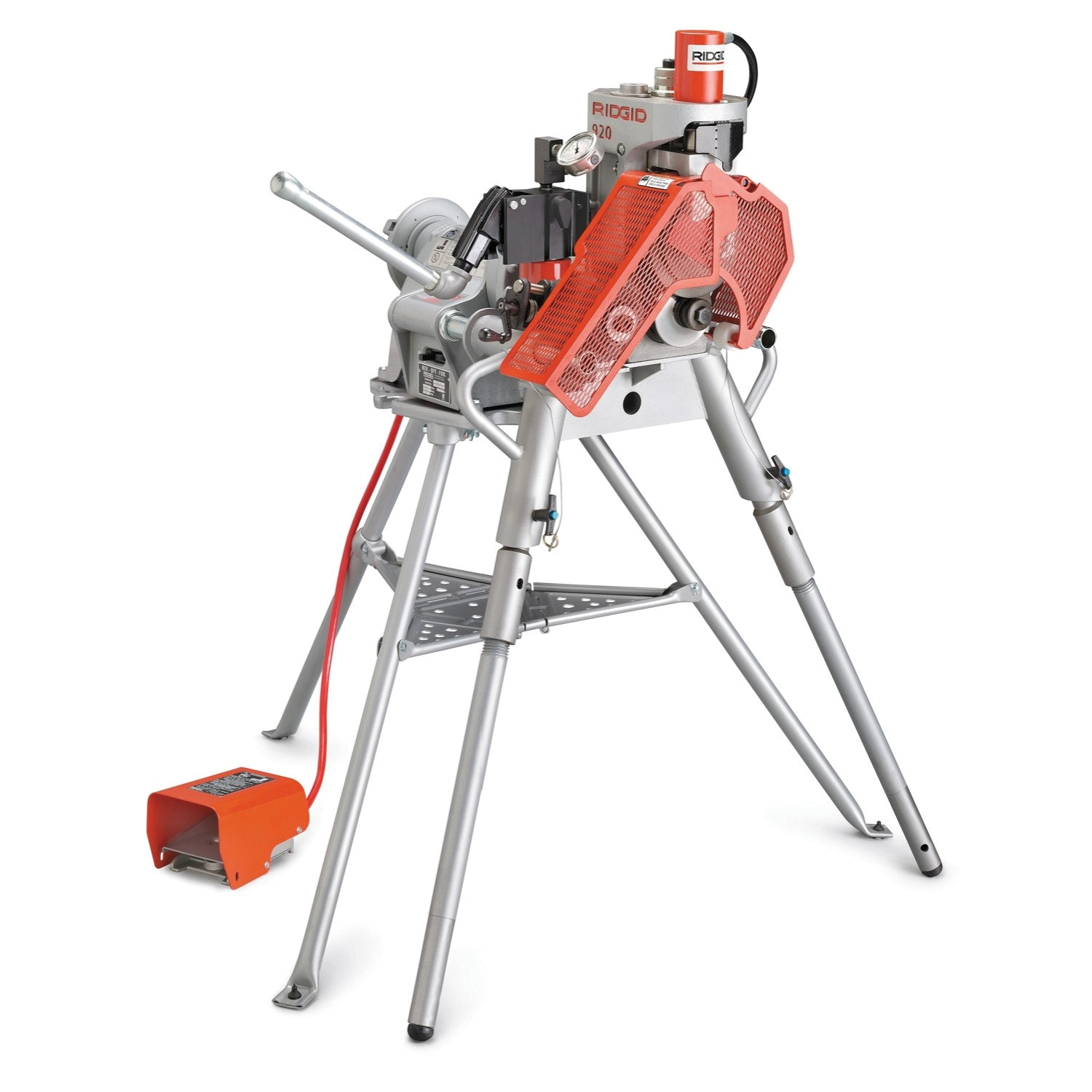

RIDGID® 920 95782 Roll Groover, 2 to 12 in Pipe, Aluminum/PVC/Stainless Steel/Steel Pipe
- Manufacturer: Emerson Electric Co
- Brand Name: RIDGID®
- Part#: RIG95782
- MPN: 95782
- UPC: 095691957825
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability

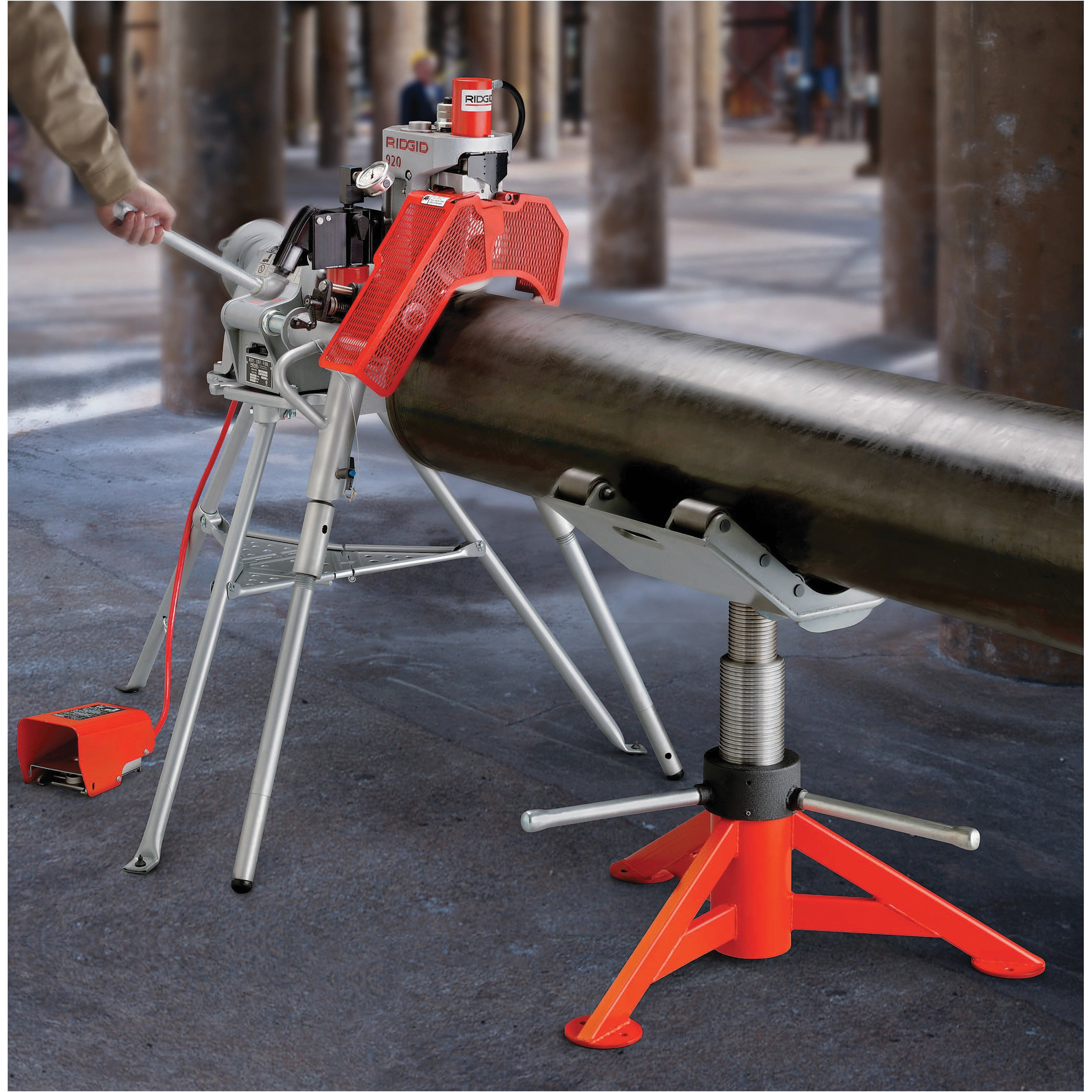

The RIDGID® 920 Roll Groover takes grooving to a whole new level. With a capacity range of 2"-24" diameter pipe, the 920 has the largest capacity of any RIDGID roll groover. The 920 mounts to the RIDGID 300 Power Drive for easy use in the field or shop. Also available is the RJ624 Large Diameter Pipe Support for grooving pipe up to 24" in diameter, a perfect complement to the 920 Roll Groover.
RIDGID® Roll Groover, Model: 920, 2 to 12 in Pipe Capacity, Aluminum/PVC/Stainless Steel/Steel Pipe, 37 in H x 30.74 in W x 29 in D, Additional Information: Indexed Adjustment Knob and Integral Depth Setting Gauge Depth Adjustment, Hand Pump Actuation
| Additional Information | : | Indexed Adjustment Knob and Integral Depth Setting Gauge Depth Adjustment, Hand Pump Actuation |
| Depth | : | 29 |
| Dimensions | : | 37 in H x 30.74 in W x 29 in D |
| Height | : | 37 |
| Model | : | 920 |
| Pipe Capacity | : | 2 to 12 in |
| Pipe Material | : | Aluminum/PVC/Stainless Steel/Steel |
| Weight | : | 380 LB / 90.3 KG |
| Width | : | 30.74 |
- Includes three (3) groove and drive sets that can groove the following pipe: 2′′ - 6′′ Sch. 10 and 40; 8′′ - 12′′ Sch. 10 and 40; 14′′ - 16′′ Standard .375′′ Wall
- Designed for easy roll change.
- Specifically designed for use with the Model 300 Power Drive.
- Built-in pressure gauge helps the operator control flare and optimize groove time.
- Built-in depth setting gauge for quicker set-up and more accurate grooves.
- Easy Adjust Support Legs - Helpful when leveling the groover on uneven ground.
