Reed UPC616A REDUPC616A
  1. pin-int

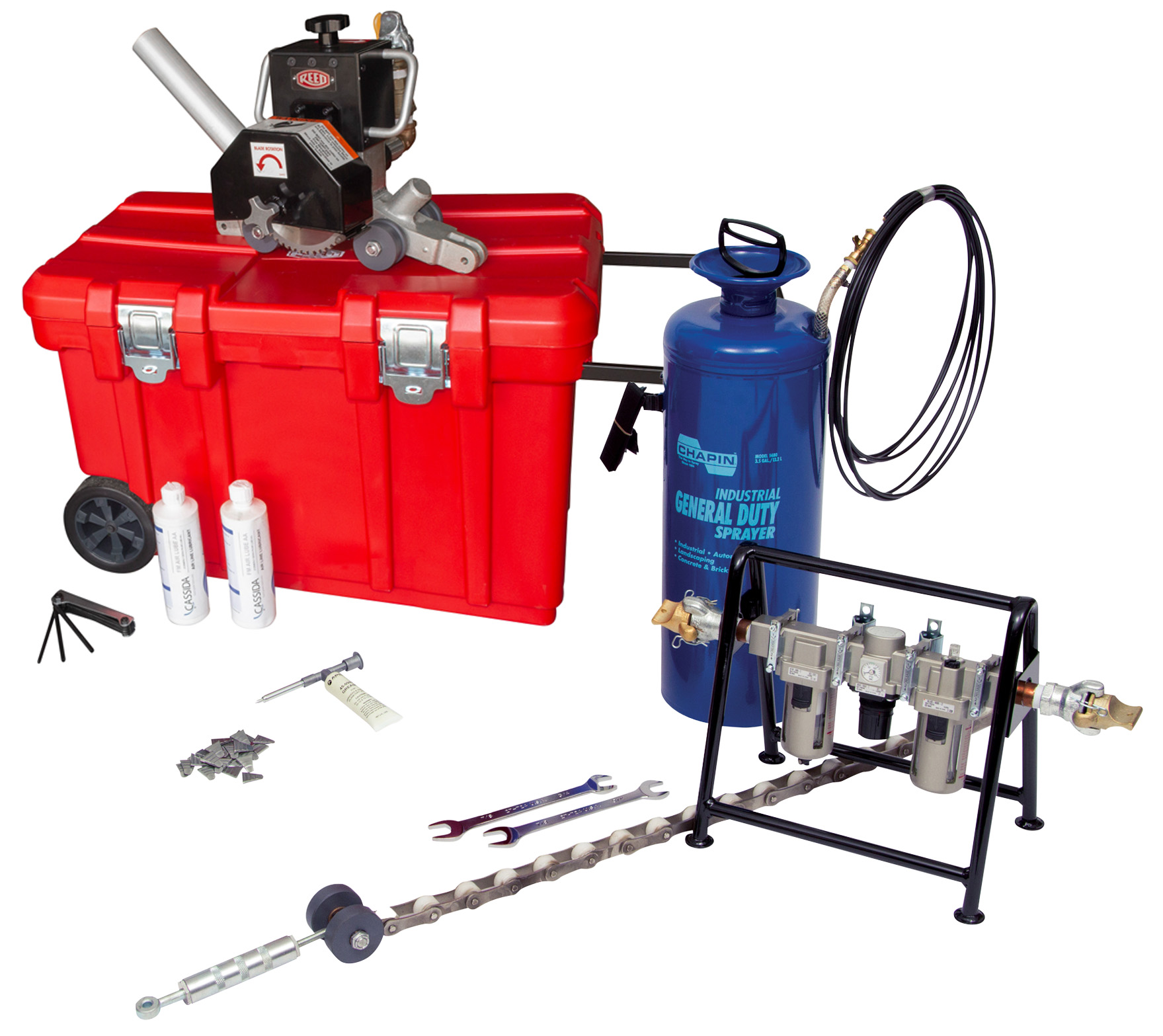

REED UPC616A Air Powered Pipe Cutter Bare Tool/Kit Bare Tool/Kit, 16 in Max Pipe/Tube Dia

REED UPC616A Air Powered Pipe Cutter Bare Tool/Kit Bare Tool/Kit, 16 in Max Pipe/Tube Dia

  • Manufacturer: Reed Manufacturing Company
  • Brand Name: Reed
  • Part#: REDUPC616A
  • MPN: UPC616A
  • UPC: 757033075122
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

Lightweight, easy-to-use Universal Pipe Cutters (UPC) are available to cut 6" - 48" nominal diameter (150-1300 mm actual O.D.) ductile iron, cast iron, clay, concrete, steel, PVC, or PE pipe. NOTE: When cutting steel pipe with the steel blades, sparks are possible and expected. Because of the sparks, the UPC cannot be used for cold cuts. REED Universal Pipe Cutters are pneumatic powered. The lower cost UPC616A uses the same motor as the others, but does not need connecting frames. The UPC616 is shipped in a toolbox with a three-gallon, formed-steel water tank. The UPC636A and UPC648A UPCs come in a toolbox with a 6-gallon, stainless steel water tank and cart. UPC836APE and UPC848APE are designed specifically for cutting PE pipe. The kit includes a 6" and 8" carbide tipped blade. The 8" blade will cut large diameter PE pipe with a wall thickness up to 2.65" (67mm). UPC836APE and UPC848APE also come in a steel box but without the water tank.

REED Air Powered Pipe Cutter Bare Tool/Kit, Kit, Cut Materials: Cast Iron, Clay, Concrete, CPVC, C900/C905 PVC, Ductile Iron, PE, PVC, Steel, Maximum Pipe/Tube Diameter: 16 in, Minimum Pipe/Tube Diameter: 6 in, 30-1/2 in L x 19 in W x 19-1/2 in W, Additional Information: 89 lb Weight

Additional Information      :      89 lb Weight
Bare Tool/Kit      :      Kit
Cut Materials      :      Cast Iron, Clay, Concrete, CPVC, C900/C905 PVC, Ductile Iron, PE, PVC, Steel
Dimensions      :      30-1/2 in L x 19 in W x 19-1/2 in W
Maximum Pipe/Tube Diameter      :      16 in
Minimum Pipe/Tube Diameter      :      6 in
  • Designed to cut 6"-16" diameter ductile or cast iron, clay, concrete, steel, PVC or PE pipe
  • Pneumatic cutter can be adapted to a variety of uses, depending on blade selected
  • Ships with lightweight, 3 gallon water tank
  • Heaviest cutter component, the main body, weighs just 28 pounds (13 kg)
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/REED_UPC616A_1.pdf
  • pdfService Manual https://assets.unilogcorp.com/267/ITEM/DOC/REED_UPC616A_2.pdf
  • videoVideo Link 1 https://reedmfgco.canto.com/direct/video/en6osqmiul7jt46oqdp240se4j/ENSzq5rCBMSoGrrRgBXXiVZ6NjE/original?content-type=video%2Fmp4&name=64_REED+UPC+Kit+Unboxing+HD.mp4
  • videoVideo Link https://reedmfgco.canto.com/direct/video/fhn9qebtvh6drbfm3n576eie7g/UHfhsFwcvtWDDw_Zl5d3mmMvkTM/original?content-type=video%2Fmp4&name=REED+On+Location+UPC+Wright+HD.mp4
