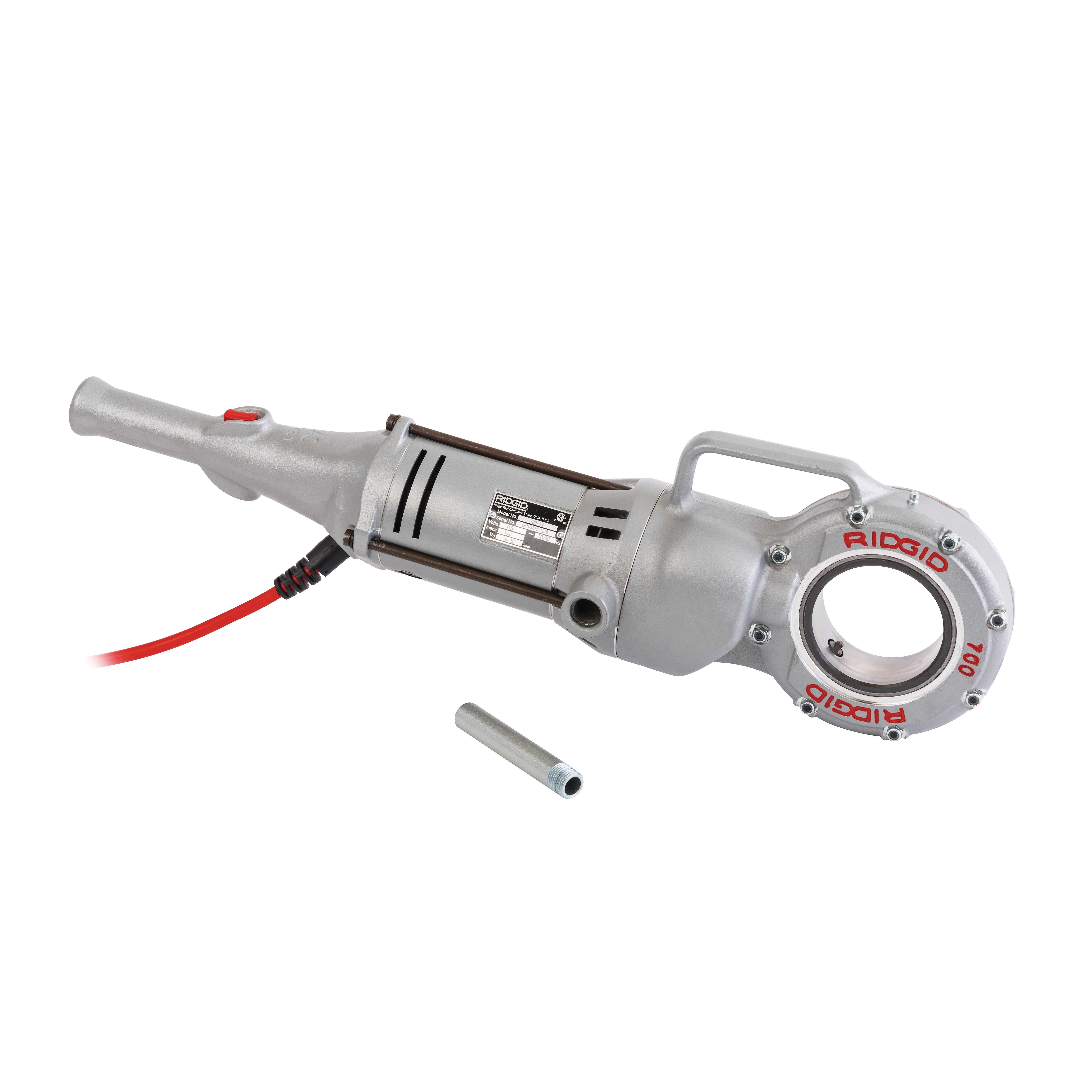

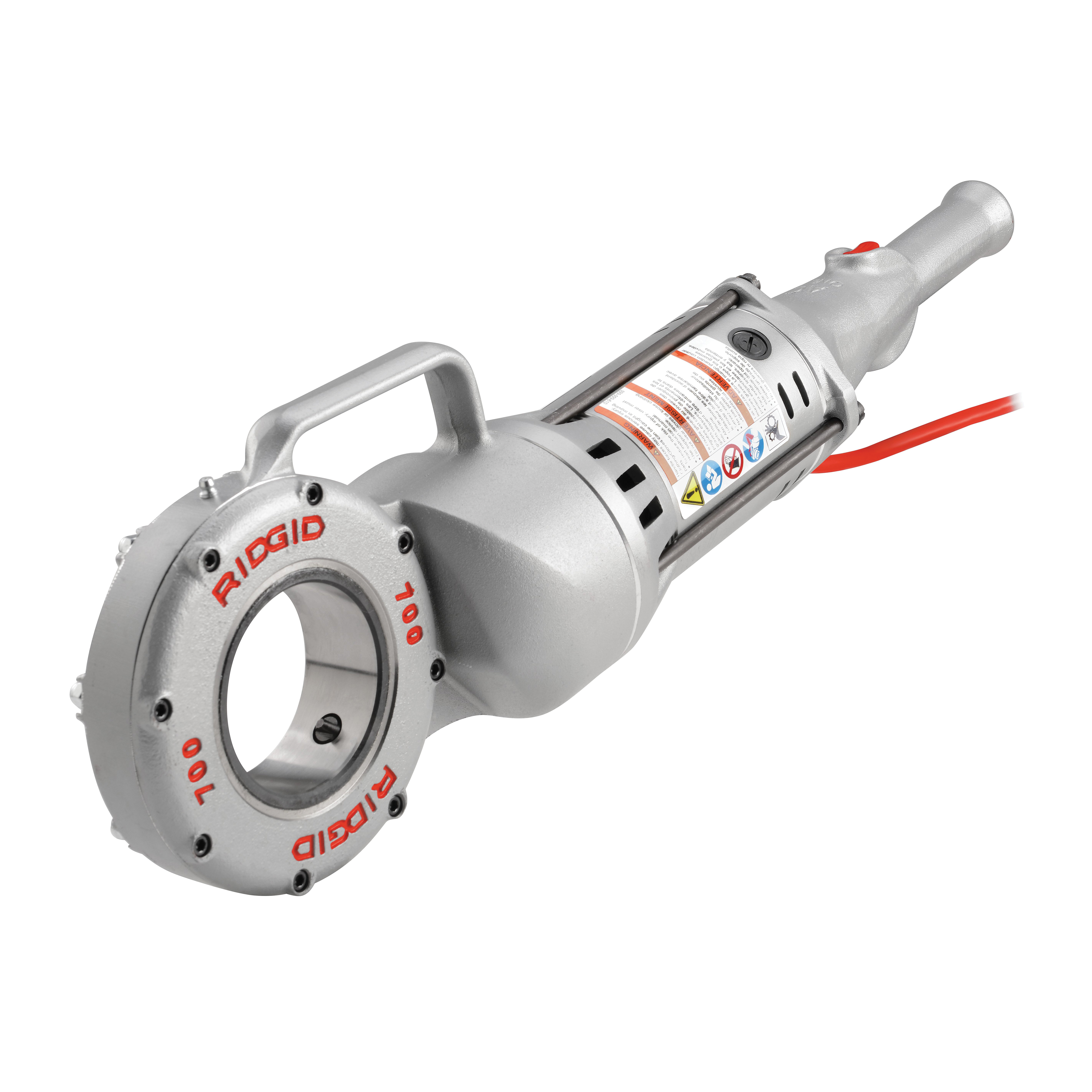

RIDGID® 700 Series 45178 Power Drive Threading Machine, 1/2 to 2 in Pipe, 115 V, 1/2 hp, 28 rpm Speed, 28-1/4 in OAL
- Manufacturer: Emerson Electric Co
- Brand Name: RIDGID®
- Part#: RIG45178
- MPN: 45178
- UPC: 095691451781
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Whether you've been threading pipe for years -- or decades -- chances are you've put this workhorse to use. The Model 700 Hand-Held 115V Power Drive delivers heavy-duty performance, beefy power and an easy-to-use design that gets in tight spaces. Use with RIDGID 12-R Die Heads to create clean and precision threads on 1/8 to 2-inch diameter pipes.
RIDGID® Power Drive Threading Machine, 700 Series, 1/2 to 2 in Pipe Capacity, 115 V, 13 A, 50/60 Hz, 1/2 hp, 28 rpm, 1 Speed, Cast Aluminum Housing, Forward, Off, Reverse Control, 28-1/4 in Overall Length, 4 in Overall Width
| Amperage Rating | : | 13 A |
| Control Type | : | Forward, Off, Reverse |
| Frequency Rating | : | 50/60 Hz |
| HP Rating | : | 1/2 hp |
| Housing Material | : | Cast Aluminum |
| Number of Speeds | : | 1 |
| Overall Length | : | 28-1/4 in |
| Overall Width | : | 4 in |
| Pipe Capacity | : | 1/2 to 2 in |
| Series | : | 700 Series |
| Speed Rating | : | 28 rpm |
| Voltage Rating | : | 115 V |
- Ideal for the demanding needs of mechanical, electrical and plumbing contractors.
- Cuts both right and left-hand threads in seconds.
- Can also be used to power 258 & 258XL pipe cutters.
- Accommodates 1/8 to 2-inch 12-R Die Heads.
- Capacity: 1/8 in - 2 in Pipe (6 - 50 mm), 1/4 in- 1 in (8 - 25 mm) Bolt (using 00-RB Die Heads)
- Motor: Single Phase, Universal
- Weight: 25 lbs, (11 kg) Power Drive only
- Length: 28 1/4 in (71.7 cm)
- Switch: Double-throw reversible
- Gear Head: Spur gear reduction face gear drive, Spring-loaded adapter pawls, Hardened steel spindle gear
- Body: Cast aluminum
- Die Heads: 12-R, Other Die Heads with adaptors: 00-R, 00-RB, 11-R
