REED DM2100CCNPT Drilling Machine

Drilling Machines cut or drill through the pipe wall of cast iron, ductile iron, C900 PVC and PE water mains via the corporation stop inserted into the service saddle while under pressure. They use REED D series drill bits or hole cutters. The DM2100B drilling machine base unit requires separate purchase of any corporation adapters, drill or hole cutter adapters, along with necessary drills or hole cutters. With shell cutters and necessary adapters, these units can also be used on C900 PVC pipe. DM2100110 drilling machine is for use with Mueller® 110 compression corporation stops. DM2100CCNPT is a combination of 3/4" and 1" AWWA CC thread and 1 1/2" and 2" NPT thread adapters. DM2100UNIVERSAL drilling machine has the base and accessories to work for AWWA and NPT threads up to 2". Spec sheet / Conversion chart available #01071.

REED Drilling Machine, 18-1/2 in Overall Length, 7-3/4 in Overall Width, 7-3/4 in Overall Depth, Additional Information: 3/4 to 1 in AWWA NPT Connection, 55.5 lb Weight

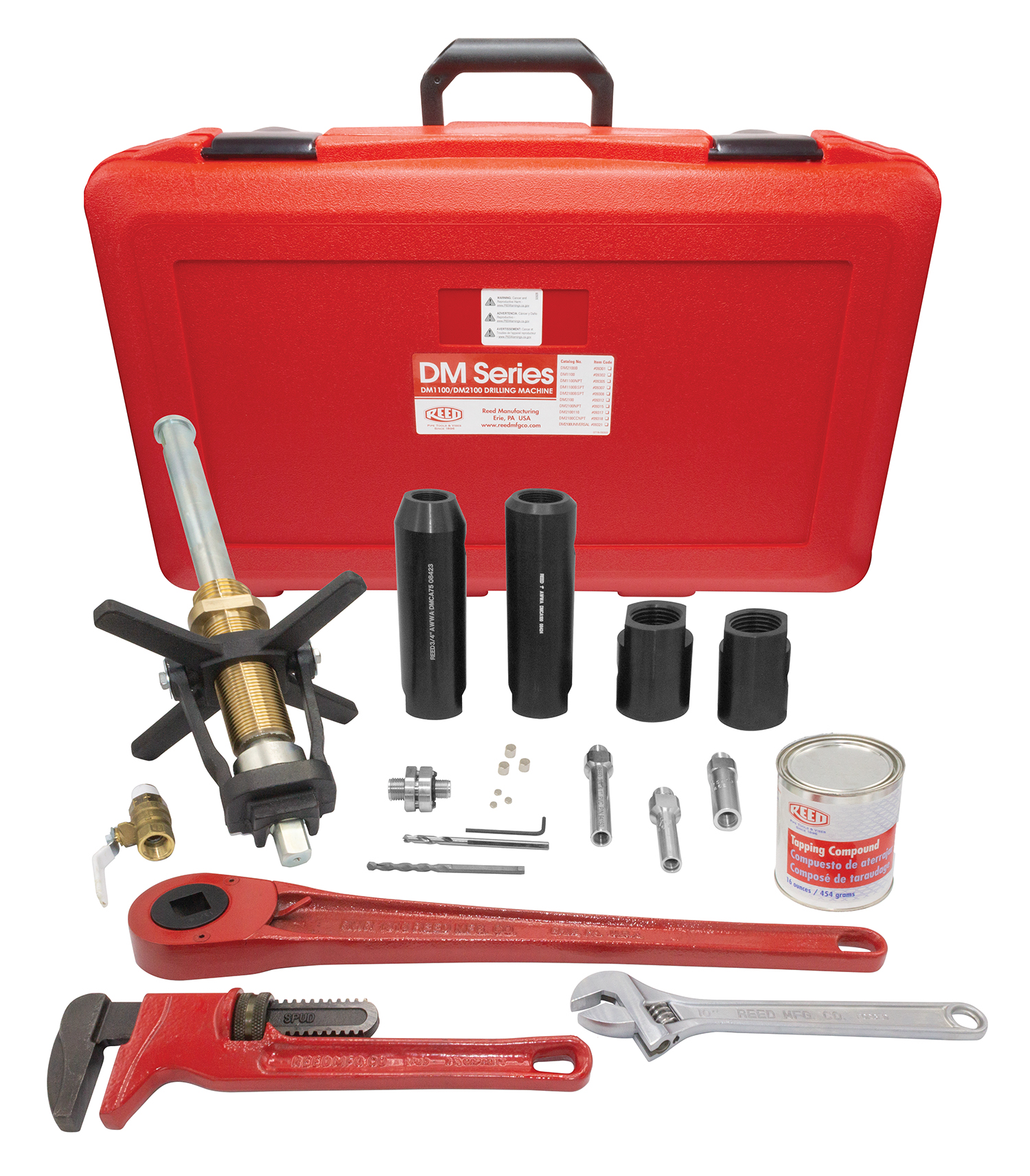

• Kit includes DM drilling machine with corporation adapters, drill adapters and pilot drill
• Compact length model performs 3/4" - 2" saddle taps, and its adjustable length boring bar requires less clearance than other brands
• Used on NPT tapered outlet threads of 1 1/2" and 2" outlet size or for 3/4" - 1" AWWA threads
• Machine requires D Series Drill Bits, PVC/PE Shell Cutters or Heavy-Duty Carbide-Tipped Hole Cutters, as the job dictates
• Quick clamp feed mechanism requires little adjustment
• Use with included ratcheting handle OR add an optional power drive
• Heavy-duty design means years of service
• Optional accessories available for other outlet service threads

• Owners/User Manual https://assets.unilogcorp.com/267/ITEM/DOC/REED_DM2100CCNPT_2.pdf
• Service Manual https://assets.unilogcorp.com/267/ITEM/DOC/REED_DM2100CCNPT_1.pdf
