REED DM2100110 Drilling Machine
- Manufacturer: Reed Manufacturing Company
- Brand Name: Reed
- Part#: REDDM2100110
- MPN: DM2100110
- UPC: 757033093171
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability

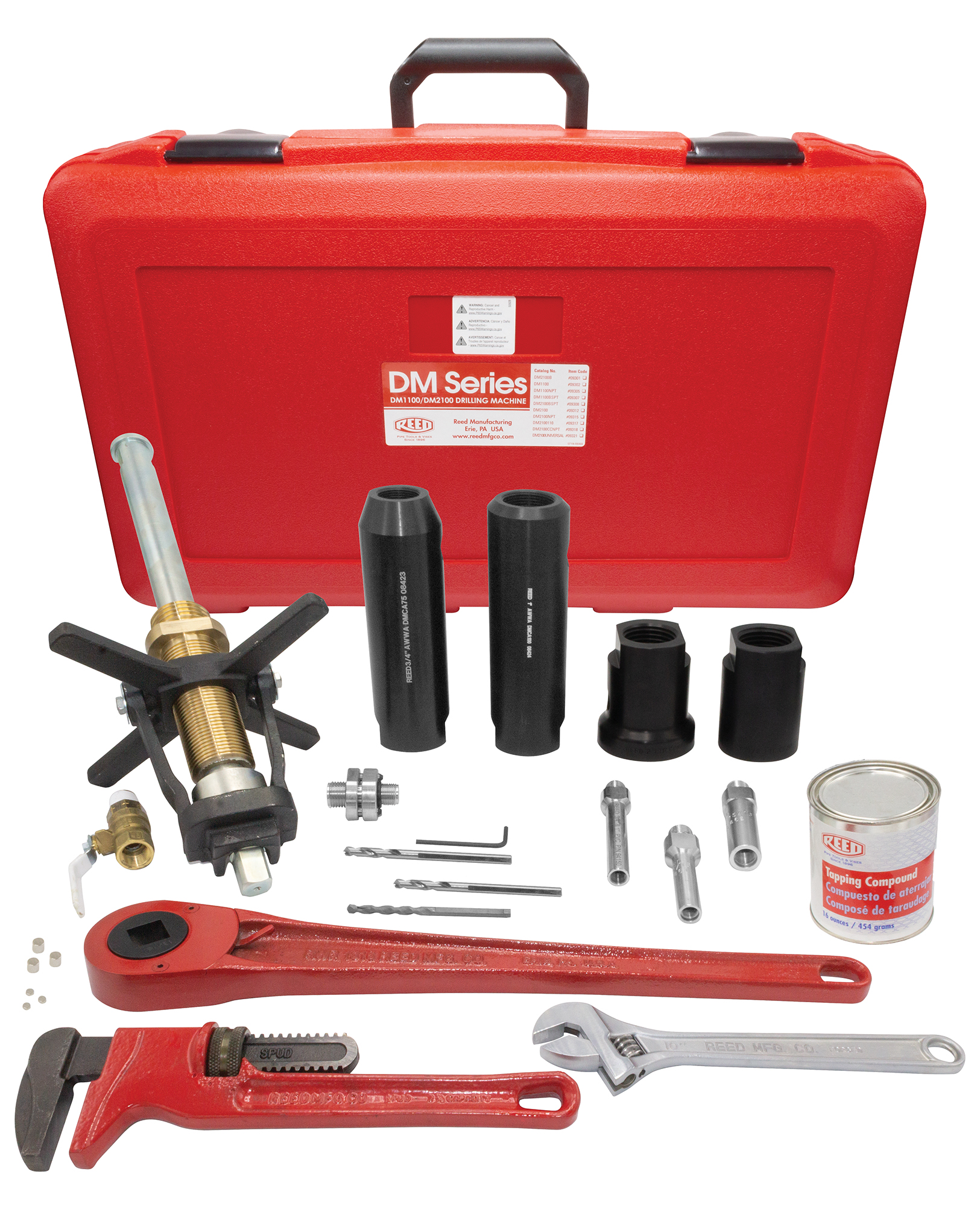

Drilling Machines cut or drill through the pipe wall of cast iron, ductile iron, C900 PVC and PE water mains via the corporation stop inserted into the service saddle while under pressure. They use REED D series drill bits or hole cutters. The DM2100B drilling machine base unit requires separate purchase of any corporation adapters, drill or hole cutter adapters, along with necessary drills or hole cutters. With shell cutters and necessary adapters, these units can also be used on C900 PVC pipe. DM2100110 drilling machine is for use with Mueller® 110 compression corporation stops. DM2100CCNPT is a combination of 3/4" and 1" AWWA CC thread and 1 1/2" and 2" NPT thread adapters. DM2100UNIVERSAL drilling machine has the base and accessories to work for AWWA and NPT threads up to 2". Spec sheet / Conversion chart available #01071.
REED Drilling Machine, 18-1/2 in Overall Length, 7-3/4 in Overall Width, 7-3/4 in Overall Depth, Additional Information: 3/4 to 2 in Compression Thread, 55.5 lb Weight
| Additional Information | : | 3/4 to 2 in Compression Thread, 55.5 lb Weight |
| Overall Depth | : | 7-3/4 in |
| Overall Length | : | 18-1/2 in |
| Overall Width | : | 7-3/4 in |
- Drilling Machines have a quick clamp feed mechanism requiring little adjustment
- These machines are more compact, thus requiring less clearance than other models
- Modular design allows fast and simple conversion to direct tapping machine
Owners/User Manual
