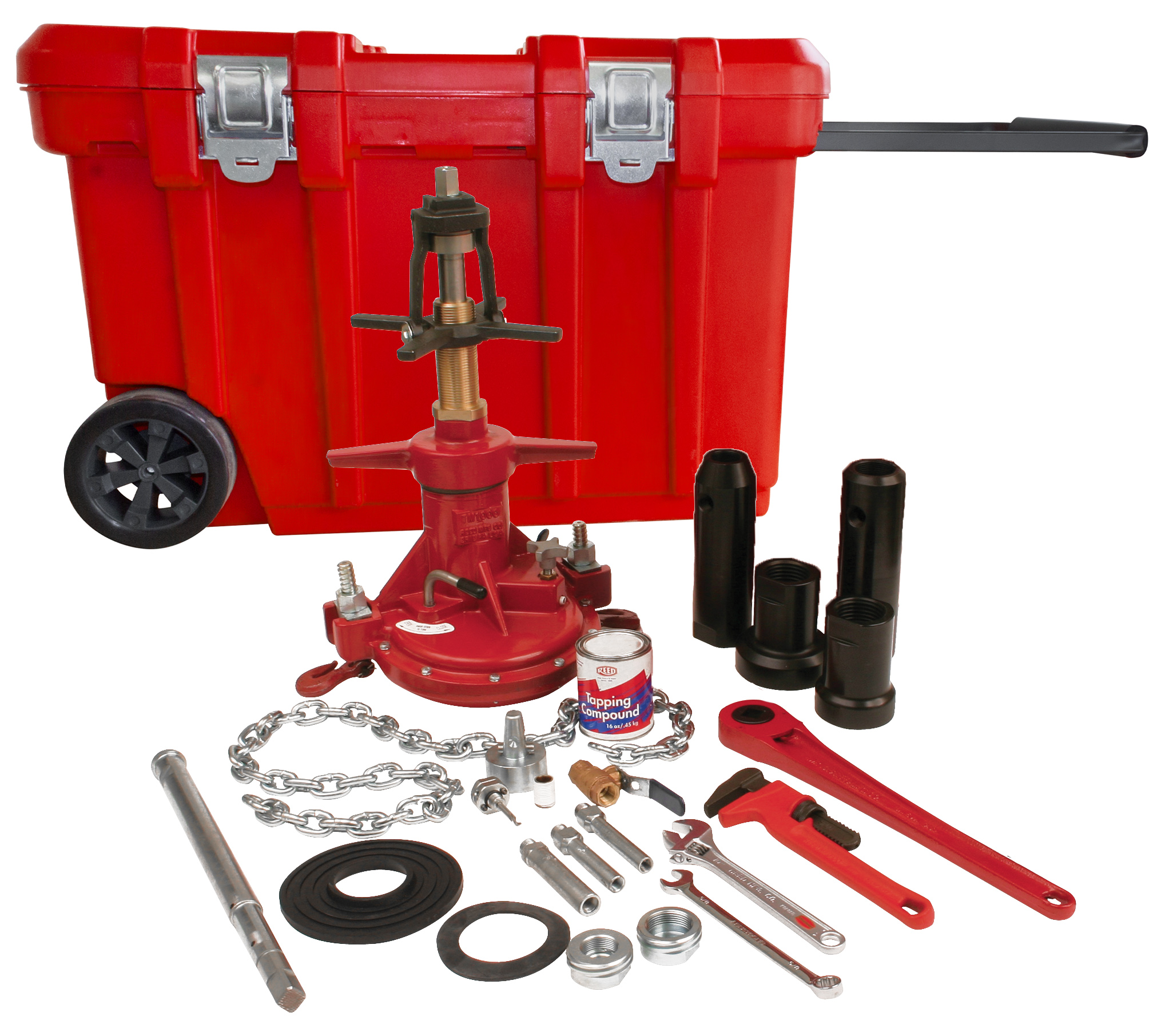

REED CDTM2100 Combination Drilling/Tapping Machine, 4 to 48 in Spindle/Drill, 3/4 to 2 in Max Drill D

Combination Drilling/Tapping Machines are easier to use, save operating time, and are a better value than any other machine. The CDTM models are tapping machines with the necessary components for conversion to drilling machines. The CDTM1100 is a TM1100 with components for converting to a DM1100. The CDTM2100 is a TM1100 with components for converting to a DM2100. All these combination models feature REED's flip clamp. They utilize REED DT series drill taps and REED D series drill bits, hole cutters, heavy-duty hole cutters, and PVC shell cutters. Drill taps, drill bits, and hole cutters must be purchased separately. NPT adapters also available. Spec sheet / Conversion chart available #01071.

REED Combination Drilling/Tapping Machine, Spindle/Drill Capacity: 4 to 48 in, 3/4 to 2 in Maximum Drill Depth, 21 in Overall Length, 14 in Overall Width, 11-1/2 in Overall Depth, Additional Information: 100 to 1200 mm Dia Pipe, 99.5 lb Weight

• Modular design allows fast and simple conversion back and forth from tapping to drilling machine
• Quick clamp feed mechanism requires little adjustment, saving time for the operator
• Compact design requires less digging as radius is equal to 32 degrees, which is less than competitor models

• Owners/User Manual https://assets.unilogcorp.com/267/ITEM/DOC/REED_CDTM2100_1.pdf
• Video Link https://reedmfgco.canto.com/direct/video/snkdk1d4m510h4pht7vprm0n1k/In2PM6cJgR1d_WA3sKAg_6gh-bE/original?content-type=video%2Fmp4&name=25_Combination_Machine_Conv.mp4
