RIDGID® 41940 RIG41940
  1. pin-int

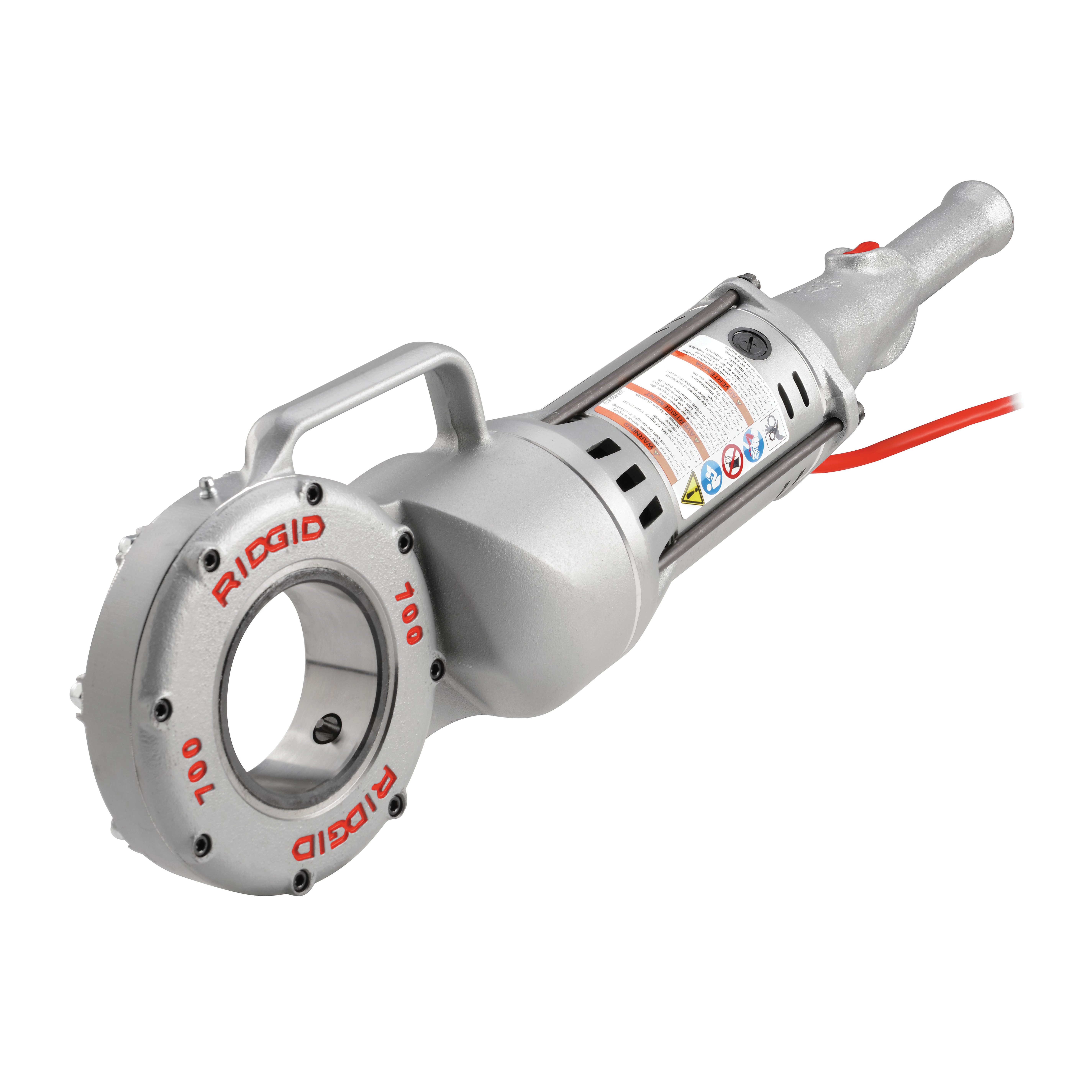

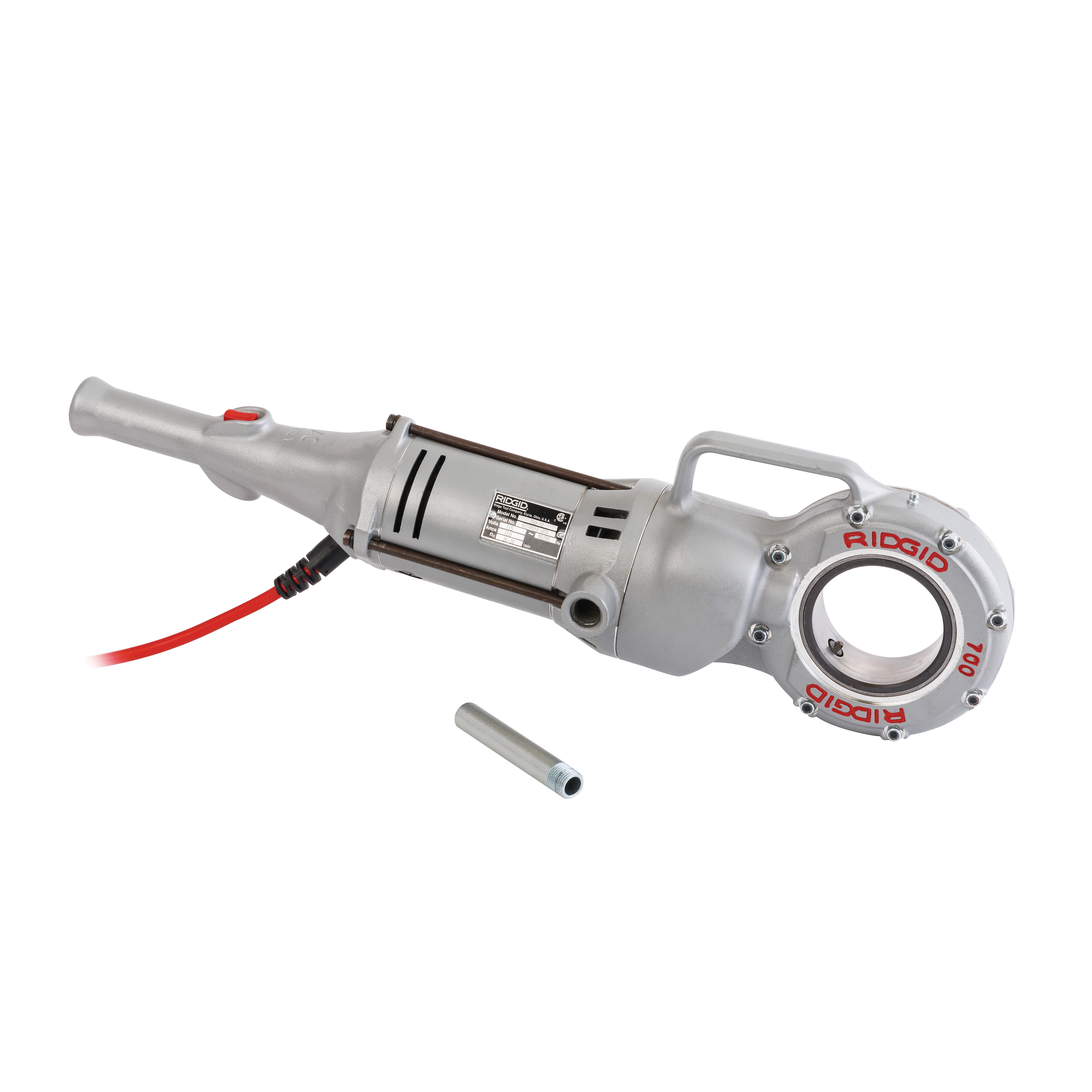

RIDGID® 41940 Power Drive, Bare Tool/Kit: Bare Tool, 230 V, 1500 W, 28 rpm Speed

RIDGID® 41940 Power Drive, Bare Tool/Kit: Bare Tool, 230 V, 1500 W, 28 rpm Speed

  • Manufacturer: Emerson Electric Co
  • Brand Name: RIDGID®
  • Part#: RIG41940
  • MPN: 41940
  • UPC: 095691419408
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

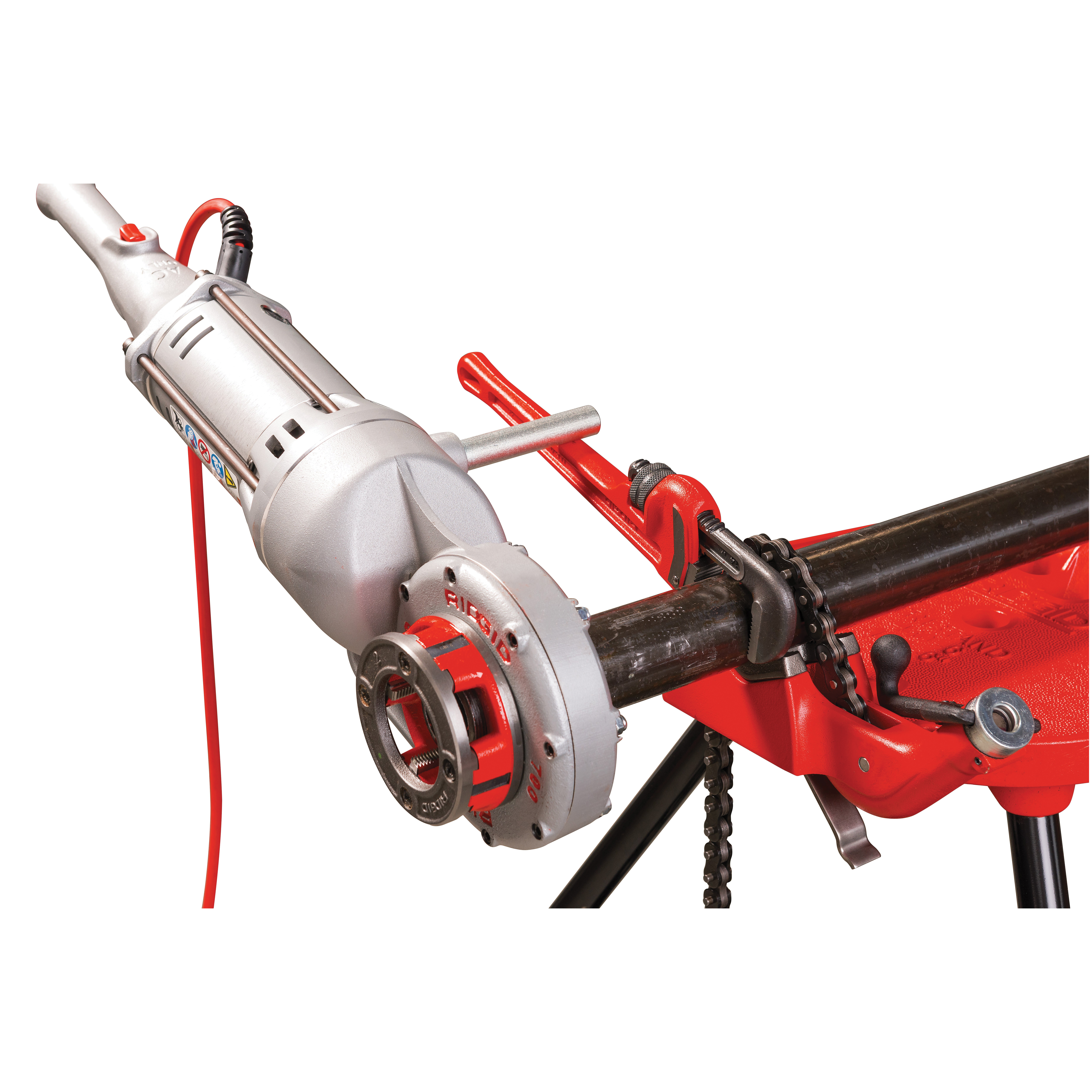

Whether you've been threading pipe for years -- or decades -- chances are you've put this workhorse to use. The Model 700 Hand-Held 230V Power Drive delivers heavy-duty performance, beefy power and an easy-to-use design that gets in tight spaces. Use with RIDGID 12-R Die Heads (sold separately) to create clean and precision threads on 1/8 to 2-inch diameter pipes.

RIDGID® Power Drive, Bare Tool, 230 V, 6 A, 50/60 Hz, 1 ph, 1500 W, 28 rpm, 107 dBA Sound Level, Double-Throw Reversible Switch, Aluminum Housing, 28-1/4 in L x 6-1/16 in W x 7-13/16 in H, Additional Information: 700 Series

Additional Information      :      700 Series
Amp Draw      :      6.5 AMP
Amperage Rating      :      6 A
Amperage      :      6.5
Bare Tool/Kit      :      Bare Tool
Chuck      :      CE
Depth      :      30.3
Dimensions      :      28-1/4 in L x 6-1/16 in W x 7-13/16 in H
Frequency Rating      :      50/60 Hz
Frequency      :      50 HZ
Height      :      8.5
Horsepower      :      0.5
Housing Material      :      Aluminum
Max. Geared Threader Capacity      :      6 IN / 150 MM
Maximum Operating Temperature      :      28 F
Model      :      700
Phase      :      1 ph
Pipe Threading Capacity      :      1/8 IN / 3 MM
Power Rating      :      1500 W
Power      :      1/2 HP
RPM      :      28
Rod Threading Capacity      :      1/4 IN / 6 MM
Sound Level      :      107 dBA
Speed Rating      :      28 rpm
Switch Type      :      Double-Throw Reversible
Voltage Rating      :      230 V
Voltage      :      230 VLT
Weight      :      25 LB / 11 KG
Width      :      8.3
  • Ideal for the demanding needs of mechanical, electrical and plumbing contractors.
  • Cuts both right and left-hand threads in seconds.
  • Can also be used to power 258 & 258XL pipe cutters.
  • Accommodates 1/8 to 2-inch 12-R Die Heads.
  • Compatible with geared threaders (for increased pipe capacity of 2-1/2 to 6-inches).
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/RIDGID_45178_Catalog.pdf
  • pdfOwners/User Manual https://assets.unilogcorp.com/267/ITEM/DOC/RIDGID_41940_Owners_User_Manual.pdf
  • pdfOwners/User Manual https://assets.unilogcorp.com/267/ITEM/DOC/RIDGID_45178_Owners_User_Manual.pdf
  • pdfSDS https://assets.unilogcorp.com/267/ITEM/DOC/RIDGID_45178_SDS.pdf
  • pdfService Manual https://assets.unilogcorp.com/267/ITEM/DOC/RIDGID_41940_Service_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/RIDGID_41940_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/9GoV43tD9WQ
