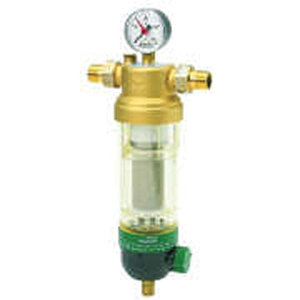

resideo F76S1023 Water Filter, 1 in, 100 um, Brass/Plastic, NPT x Sweat, 230 psi
- Manufacturer: Resideo Technologies Inc
- Brand Name: resideo
- Part#: HNWF76S1023
- MPN: F76S1023
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
High flow capacity water filter used to remove sediment and debris from residential or commercial water systems.
resideo Water Filter, 1 in Connection, Connection Type: NPT x Sweat, 11.4 Cv Capacity, Water Media, 100 um, Sediment Contamination Removal, 230 psi, 1 in, Brass/Plastic, 40 deg C, 17-7/8 in H x 8-1/4 in W x 3-13/16 in D
| Capacity | : | 11.4 Cv |
| Connection Size | : | 1 in |
| Connection Type | : | NPT x Sweat |
| Contamination Removal | : | Sediment |
| Dimensions | : | 17-7/8 in H x 8-1/4 in W x 3-13/16 in D |
| Material | : | Brass/Plastic |
| Media Type | : | Water |
| Micron Rating | : | 100 um |
| Model | : | Rsd-f76s |
| Pressure Rating | : | 230 psi |
| Size | : | 1 in |
| Temperature Rating | : | 40 deg C |
- Whole House Protection
- Ideally suited for sediment removal applications that would quickly plug and restrict the flow of normal filters
- Used as a prefilter, the F76 protects elements of the water system, including specialized treatment devices or other common fixtures and appliances
- The flow filtering capacity and ease of cleaning make the F76S ideal for the most demanding applications
- Built-in secondary filter provides an uninterrupted supply of filtered water during backwashing
Instruction/Installation Manual
