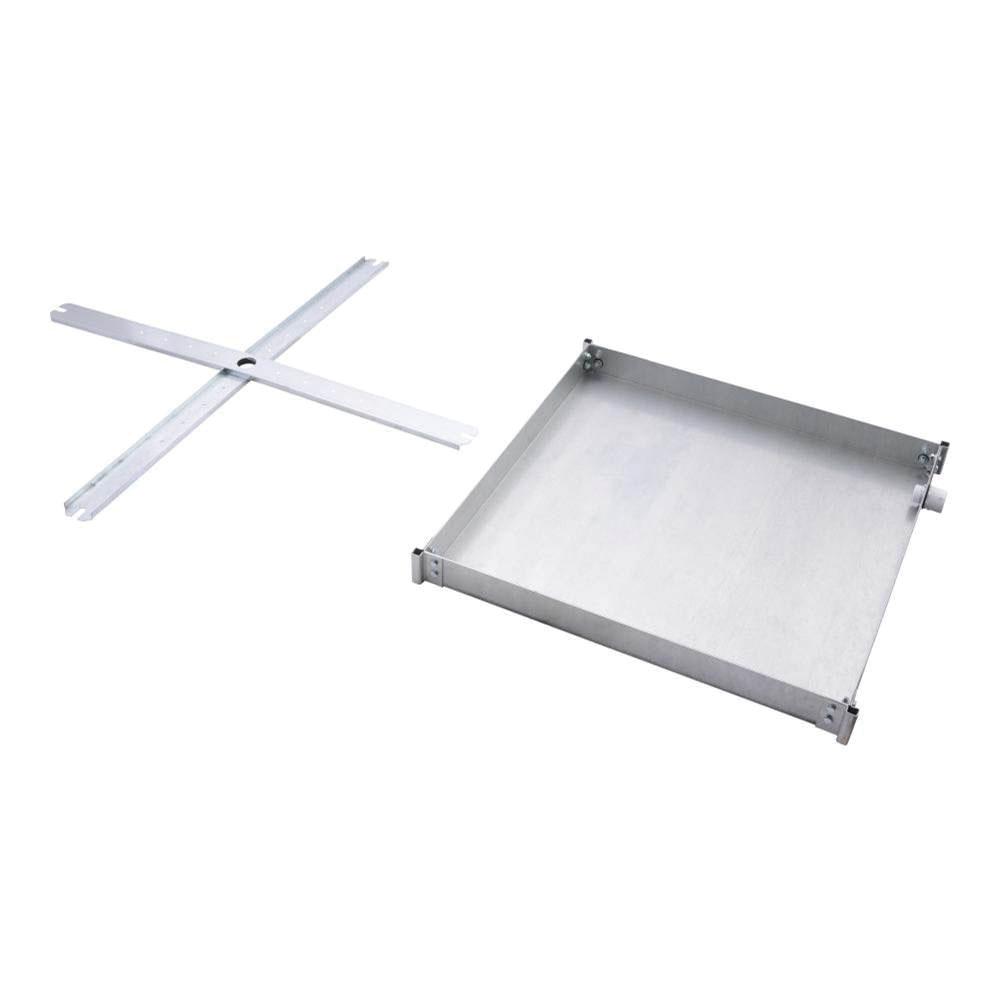

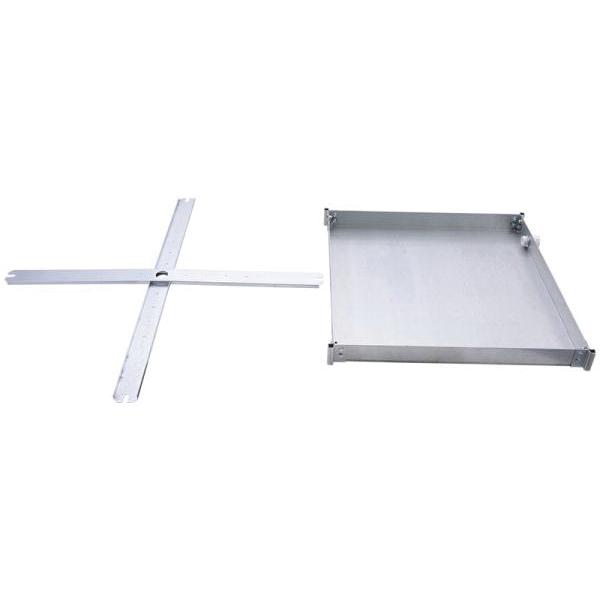

HoldRite® Quick Stand™ 50-SWHP-A-C Ceiling-Mounted Water Heater Platform, 600 lb Load, 26-1/2 in W, 26-1/2 in H
- Manufacturer: Reliance Worldwide Corporation
- Brand Name: HoldRite®
- Part#: HLR50-SWHP-A-C
- MPN: 50-SWHP-A-C
- UPC: 671119903164
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Ideal for supporting water heaters, water source heat pumps, fan coil units and remote chillers, Quick Stand™ ceiling-mounted water heater platforms are water-tight and pre-assembled with a built-in drain pan and drain fitting.
HoldRite® Ceiling-Mounted Water Heater Platform, 600 lb Load, 26-1/2 in Width, 26-1/2 in Height, 2-1/2 in Depth, Cold Rolled Steel, Finish: Galvanized, For Use With: Up to 50 gal Tank Water Heaters
| Depth | : | 2-1/2 in |
| Finish | : | Galvanized |
| Height | : | 26-1/2 in |
| Load Capacity | : | 600 lb |
| Material | : | Cold Rolled Steel |
| Suitable For Use With | : | Up to 50 gal Tank Water Heaters |
| Width | : | 26-1/2 in |
- Adapts to 3/8 or 1/2 in threaded hanger rod
- Wide platform allows water heaters up to 26-1/2 in Dia
- Watertight corners and drain fittings eliminate need for additional drain pan
- Static load rating 600 lb with 2X safety factor (depending on structural anchorage)
- Suspends with user-supplied 3/8 or 1/2 in threaded rod and hardware
- Four corner attachment points allows for seismic/sway bracing connection
