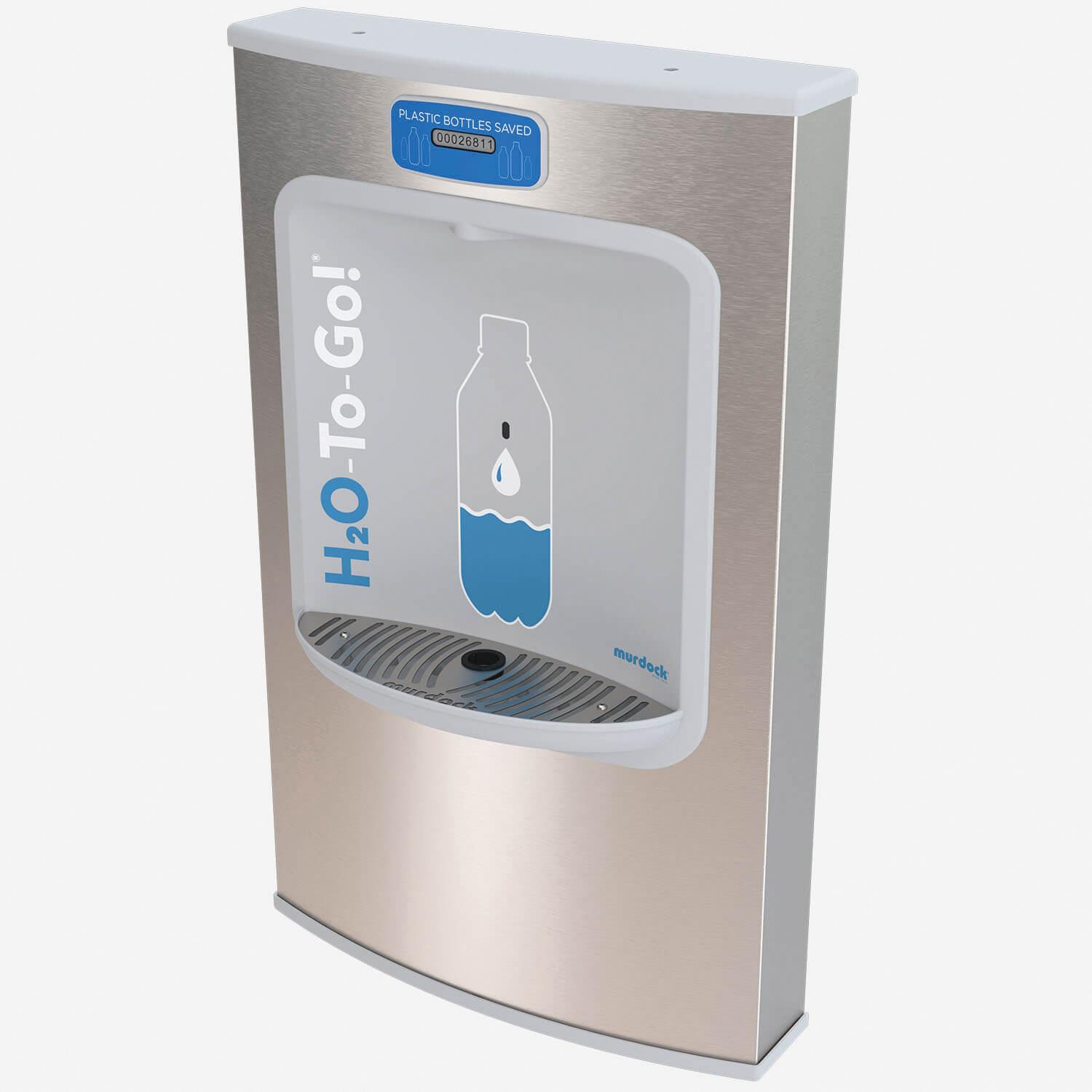

murdock® BF16 Series BF16BCDWF1 Bottle Filler Sensor, 120 VAC/9 VDC

Model BF16 is a Surface Mount Sensor Operated Bottle Filler. Bottle Filling unit shall include Sensor Operated activation with a 20-second maximum run time. Housing has a slim and trim look that blends into your environment. Designed for Maintenance Advantage installation and service. Bottle Filler shall provide approximately 1.0 GPM flow rate with a Laminar Flow Spout to minimize splashing. When installed properly, the Bottle Filler complies with ADA forward and side reach requirements. Bottle Filler is fabricated of type 304 stainless steel polished to a satin finish with antimicrobial impact resistant ABS surfaces. Optional -BCD (Bottle Counter Display) indicates the quantity of 16 oz disposable Plastic Bottles saved from a land fill. -BCD option displays the Water Filter Status and includes LED Light to illuminate and brighten the Bottle Fill area when a Bottle is detected. Optional WF3000 PFAS Water Filter shall have 3000 gallon capacity with 3rd Party Certification for Lead, Bacteria, Chlorine, Microplastics, and NSF/ANSI for Cyst and total PFAS reduction. Unit shall be certified to Public Law 111-380 (NO-LEAD) and NSF/ANSI/CAN 61. Fixture meets ADA, ADA Standing Person, and ADA Child requirements when mounted appropriately.

murdock® Bottle Filler Sensor, BF16 Series, 120 VAC/9 VDC, Surface Mounting, 29-1/2 in Overall Length, 18-1/4 in Overall Width, 4-7/8 in Overall Depth, Additional Information: 1 gpm Flow Rate

• Universal Mounting Points for Easy Retrofit Capability
• Fold Down Housing for Easy Maintenance Access
• 20-Second Maximum Run Time
• Laminar Flow Water Supply
• 100-Mesh Inlet Strainer

• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/murdock_BF16BCDWF1_Instruction_Installation_Manual.pdf
• Submittal https://assets.unilogcorp.com/267/ITEM/DOC/murdock_BF16BCDWF1_Submittal.pdf
