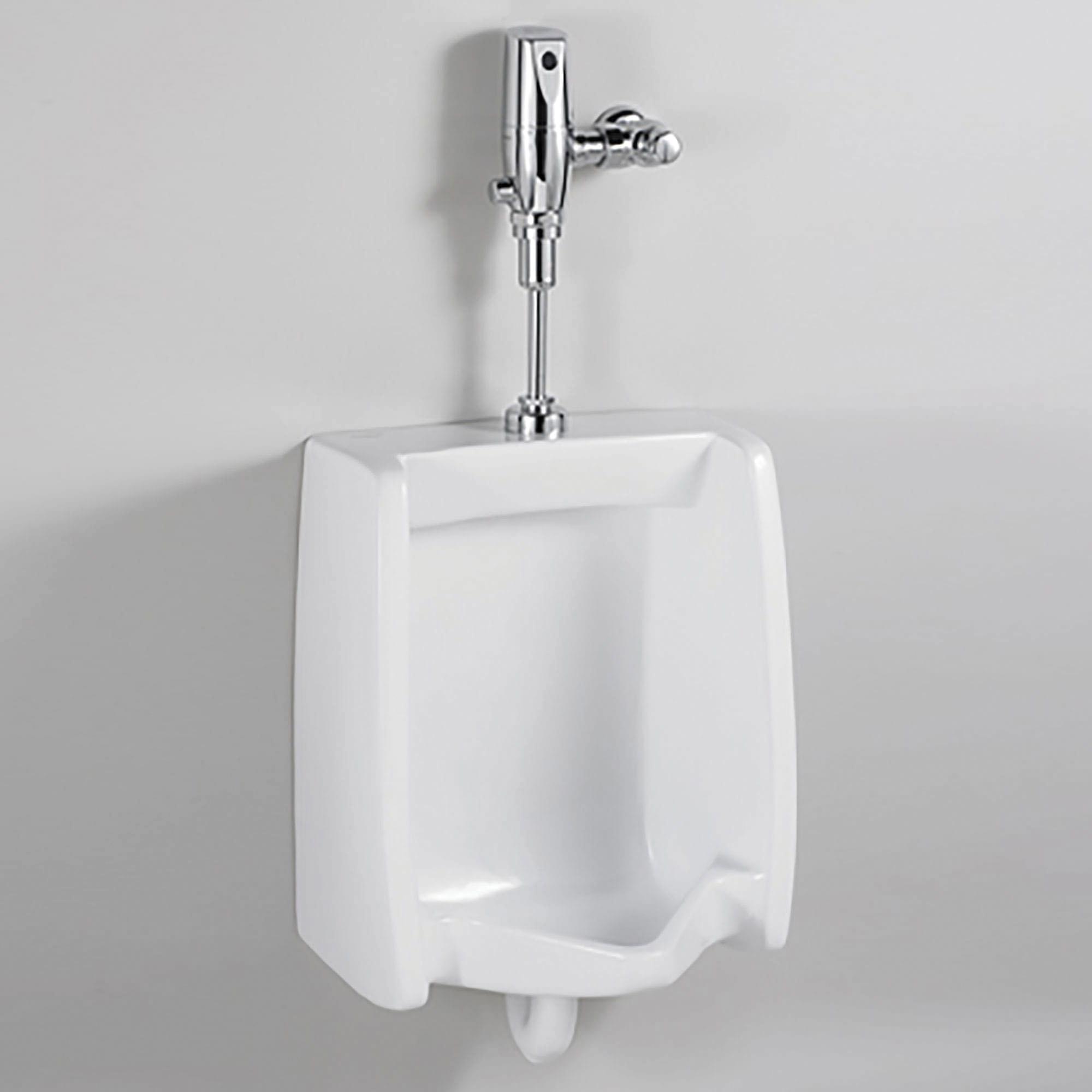

American Standard Washbrook® 6590.001.020 Urinal, 0.12 to 1 gpf Flush Rate, Top Spud Location, Wall Mounting, White
- Manufacturer: LIXIL Corporation
- Brand Name: American Standard
- Part#: AMS6590001.020
- MPN: 6590.001.020
- UPC: 033056852941
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
This ultra-high-efficiency, low consumption universal urinal operates in the range of 0.125 to 1 gpf. Choose a manual or Selectronic® sensor-operated flush valve that suits your budget and water usage requirements. Features include a flushing rim and washout flush action for effectiveness, plus extended sides for privacy.
American Standard Urinal, Washbrook® Collection, 0.12 to 1 gpf Flush Rate, Washout Flushing System, Top Spud Location, 3/4 in Inlet Spud, 2 in Outlet Tap, 20 to 80 psi Working Pressure, Wall Mounting, Vitreous China, Finish: White, White, 14-1/8 in Length, 18-7/8 in Width, 26-1/8 in Height
| Collection | : | Washbrook® |
| Color | : | White |
| Finish | : | White |
| Flush Rate | : | 0.12 to 1 gpf |
| Flushing System | : | Washout |
| Height | : | 26-1/8 in |
| Inlet Spud Size | : | 3/4 in |
| Length | : | 14-1/8 in |
| Material | : | Vitreous China |
| Mounting Type | : | Wall |
| Outlet Tap Size | : | 2 in |
| Spud Location | : | Top |
| Width | : | 18-7/8 in |
| Working Pressure | : | 20 to 80 psi |
- High-efficiency, low consumption
- Elongated 14 in rim from finished wall
- Outlet connection threaded 2 in inside (NPTF)
- 2 wall hangers
- Fixture only
Instruction/Installation Manual
