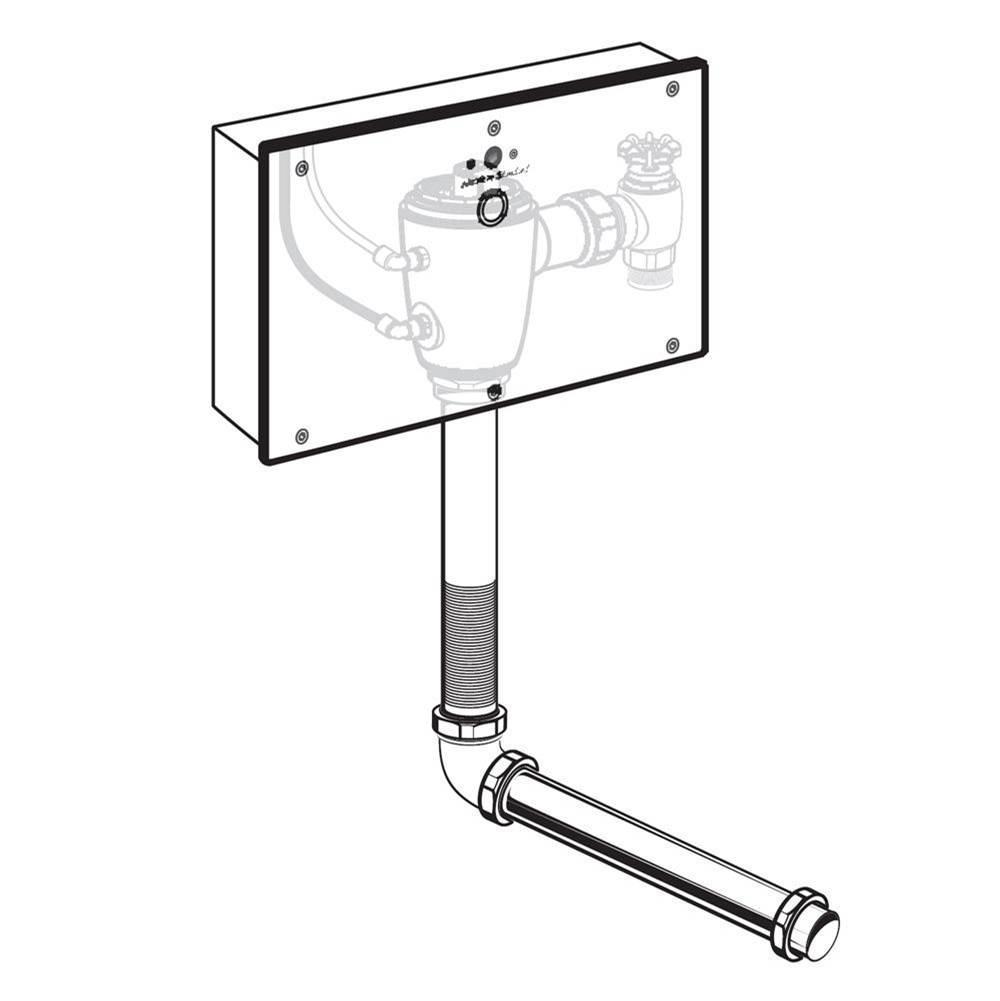

American Standard® Ultima® Selectronic® 606B322.007 Piston-Type Concealed Toilet Flush Valve With Wall Box, 1 in Nominal
- Manufacturer: Trane International Inc
- Brand Name: American Standard®
- Part#: AMB606B322.007
- MPN: 606B322.007
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
American Standard® Ultima® Selectronic® Piston-Type Concealed Toilet Flush Valve With Wall Box, IPS Connection, 1 in Nominal, 25 psi Pressure, 1.28 gpf Flush, Brass Body, EPDM Seal, Sensor Operator, Wall Mounting, Additional Information: 80 psi Static Pressure
| Additional Information | : | 80 psi Static Pressure |
| Body Material | : | Brass |
| Connection Type | : | IPS |
| Flush Rate | : | 1.28 gpf |
| Mounting Type | : | Wall |
| Nominal Size | : | 1 in |
| Operator Type | : | Sensor |
| Pressure Rating | : | 25 psi |
| Seal Material | : | EPDM |
- For flushometer bowls with 1-1/2 in back spud
- For installations with front access
- Touchless operation limits the spread of germs
- Exclusive DynaClean® self cleaning wiper spring technology
- Integral wiper spring cleans refill orifice with every flush to help prevent valve run on
- Fully mechanical manual override can operate without power
- Proprietary brass alloy resists dezincification
