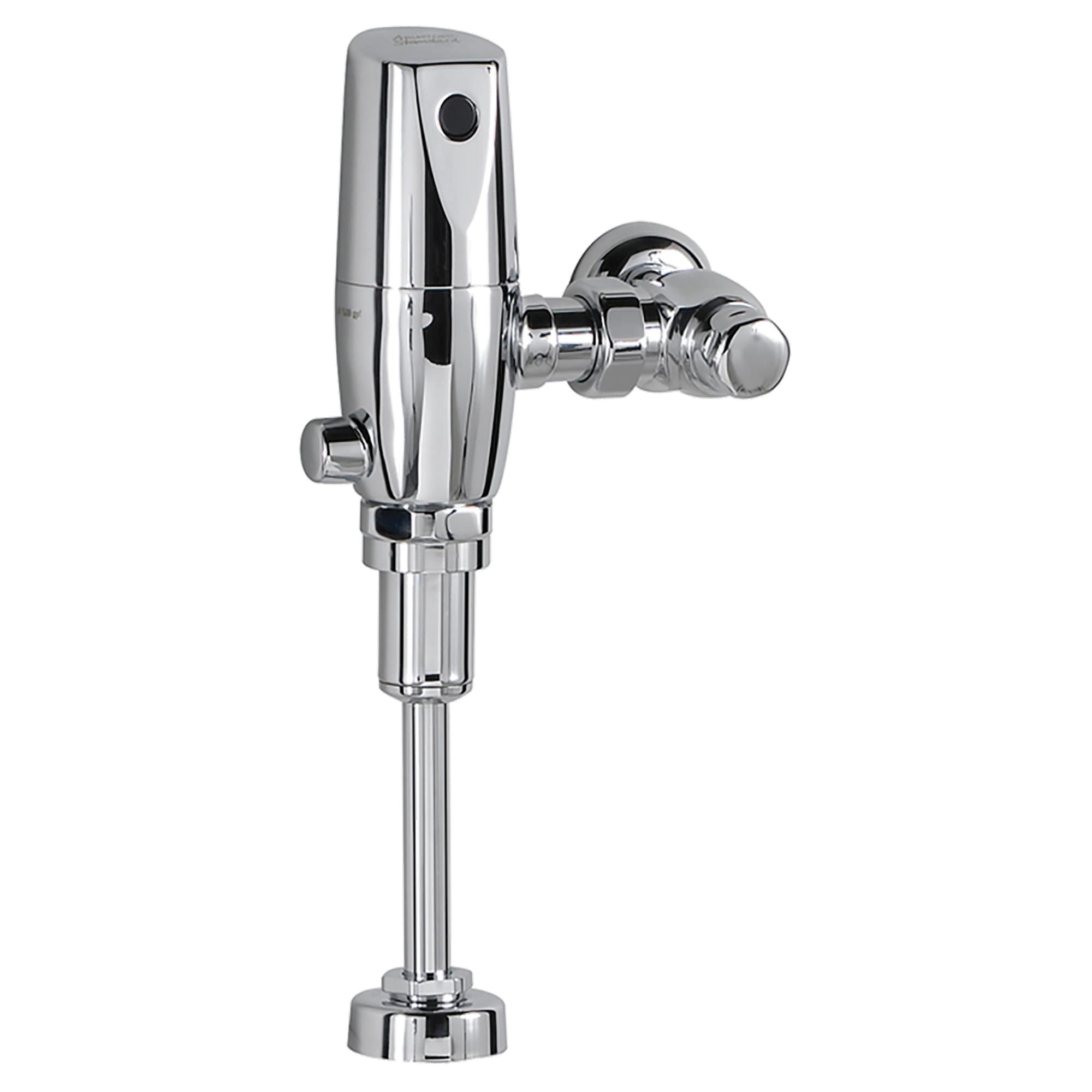

American Standard Ultima™ 6063101.002 Urinal Flush Valve, 3/4 in Nominal, IPS, 20 to 80 psi, Semi-Red Brass Body
- Manufacturer: LIXIL Corporation
- Brand Name: American Standard
- Part#: AMB6063101.002
- MPN: 6063101.002
- UPC: 012611426100
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The Selectronic® urinal flush valves feature a self-cleaning piston design that saves time and money by eliminating routine maintenance and preventing the valve from running due to clogs. The Selectronic® flush valves include a pressure compensation feature that maintains the proper flush volume regardless of inlet water pressure. Features CR-P2 lithium battery installed. Battery life 4 years assuming 4000 flushes per month. Touch-free operation helps keep the restroom clean and hygienic. Pressure compensation feature maintains accurate flush volume regardless of inlet water pressure. Self-cleaning piston significantly reduces clogging and prevents valve run on Integral wiper spring cleans the refill orifice with every flush for extraordinary reliability. No routine maintenance no diaphragms to replace, no filters to clean. Selectronic® proximity system with programmable sensor allows for easy adjustment and customization. State of the art electronics prevent ghost flushing. Fully mechanical manual override button can flush the valve without power. Fail-safe, valve automatically closes upon loss of power or water pressure and does not need to be reset. Adjustable sanitary flush cleans the fixture and maintains the trap seal. Stadium feature, valve automatically switches to water savings mode during periods of heavy usage. Chemical-resistant EPDM seals for extended life. Can be installed left or right handed.
American Standard Urinal Flush Valve, Ultima™ Collection, IPS Connection, 3/4 in Nominal, 20 to 80 psi Pressure, 10 gpm Flow Rate, Media: Water, Sensor Actuator, 11-1/2 in Inlet to Outlet Length, 4-1/2 in Top to Inlet Center, 1 gpf Flush, Touchless Handle, Semi-Red Brass Body, EPDM Seal, Piston Operator, Polished Chrome, Dimensions: 406.4 mm H x 207 mm W x 114.3 mm D, Domestic/Import: Import
| Actuator Type | : | Sensor |
| Body Material | : | Semi-Red Brass |
| Collection | : | Ultima™ |
| Connection Type | : | IPS |
| Dimensions | : | 406.4 mm H x 207 mm W x 114.3 mm D |
| Domestic/Import | : | Import |
| Finish | : | Polished Chrome |
| Flow Rate | : | 10 gpm |
| Flush Rate | : | 1 gpf |
| Handle Type | : | Touchless |
| Inlet to Outlet Length | : | 11-1/2 in |
| Media | : | Water |
| Nominal Size | : | 3/4 in |
| Operator Type | : | Piston |
| Pressure Rating | : | 20 to 80 psi |
| Seal Material | : | EPDM |
| Top to Inlet Center | : | 4-1/2 in |
- For urinals with 3/4 in exposed top spud
- 8 years CR-P2 lithium battery installed in valve
- Touchless operation limits the spread of germs
- Exclusive DynaClean® self-cleaning wiper spring technology
- Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
- Fully mechanical manual override can operate without power
- Fail safe operation, valve automatically closes upon loss of power or water pressure
- Pressure compensation feature ensures accurate flush volume regardless of inlet water pressure
- Proprietary brass alloy resists dezincification
- 11-1/2 in rough-in
- Self-cleaning piston with integral wiper spring significantly reduces clogging and maintenance
- Selectronic® proximity system with universal sensor provides hygienic, "hands-free" operation
- State of the art electronics prevent ghost flushing
- Dezincification-resistant semi-red brass alloy
- Adjustable sanitary flush cleans the fixture and maintains the trap seal
- Stadium feature, valve automatically switches to water savings mode during periods of heavy usage
- Chemical-resistant EPDM seals for extended life
- High back pressure vacuum breaker
- Range can be adjusted manually or with optional remote control
- Can be installed left or right handed
Instruction/Installation Manual
Video Link
