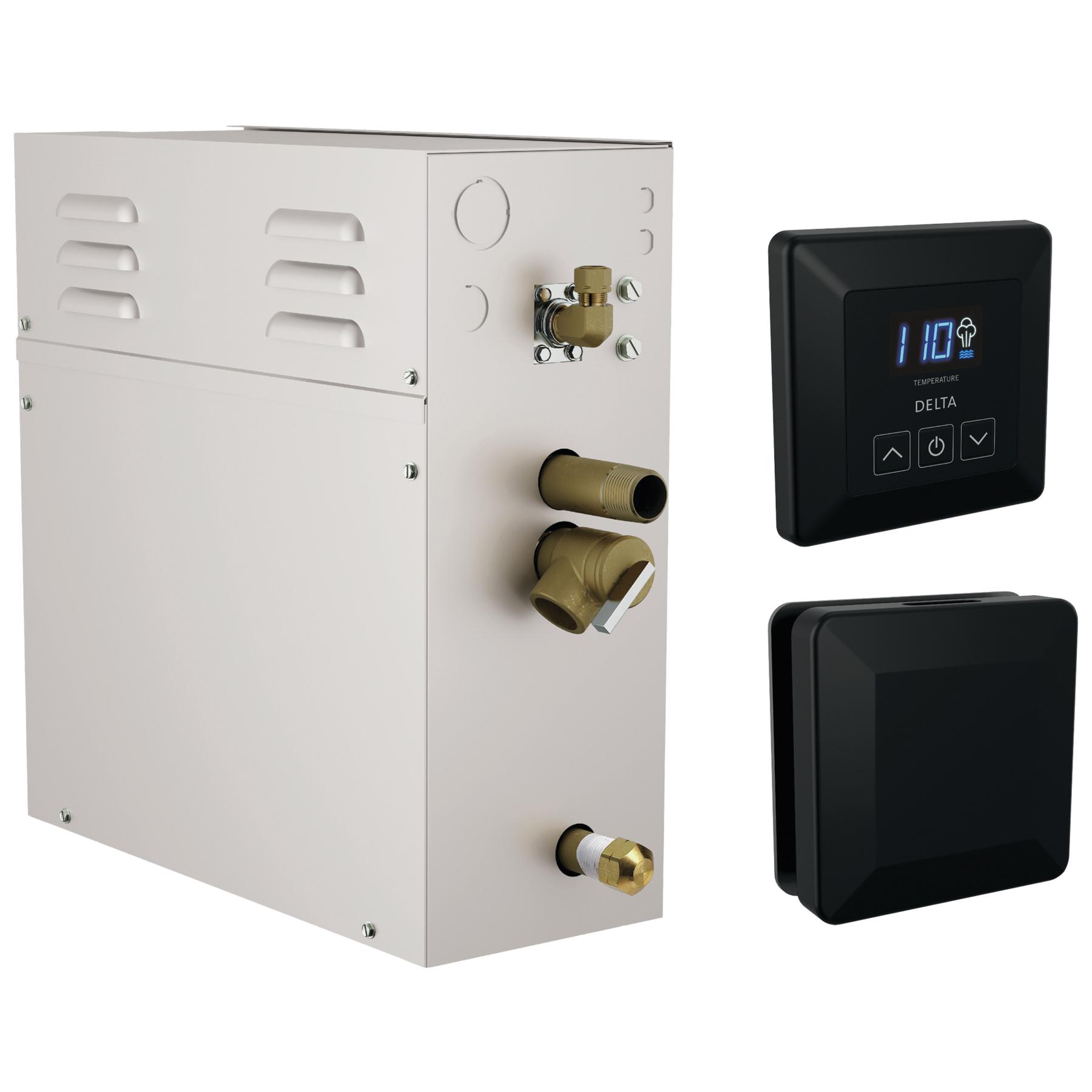

DELTA® SimpleSteam™ 5P-EST04-BL Steam Generator Package, 4 kW, 240 V, 3/8 in Water Inlet, 1/2 in Drain Outlet
- Manufacturer: Delta Faucet Company
- Brand Name: delta®
- Part#: DLT5P-EST04-BL
- MPN: 5P-EST04-BL
- UPC: 195205088158
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Simple to order and simple to use, the SimpleSteam™ Kit is simple for a reason: so you can enjoy the benefits of at-home steam whenever you want it. Steam can be more than a relaxing escape. Discover how the Delta® Steam Systems can improve your overall wellbeing. Plus, conserve water and energy without compromising your experience-an average 20-minute steam shower uses less than one gallon of water. Enjoy your steam with peace of mind; the SimpleSteam generator is covered by our Lifetime Limited Warranty, and our electronic parts are covered for up to two years.
DELTA® SimpleSteam™ Steam Generator Package, 4 kW, 240 V, 17 A, 60 Hz, 1 ph Phase, 3/8 in Water Inlet, 1/2 in Drain Outlet, 3/4 in Steam Outlet, 3/4 in Safety Valve, 1 cu-ft Minimum Steam Room, 65 cu-ft Maximum Steam Room, Multi-Conductor Cable, 35 ft Cable Length, Compression x NPT Connection, Surface Mounting, Metal/Stainless Steel Housing, Matte Black Housing, Additional Information: 1-Steam Head, 15-1/2 in H x 15 in D Generator, 2-3/4 in H x 5/8 in D Control Unit, 3-3/16 in H x 3-3/16 in W x 1-1/4 in D Steam Head
| Additional Information | : | 1-Steam Head, 15-1/2 in H x 15 in D Generator, 2-3/4 in H x 5/8 in D Control Unit, 3-3/16 in H x 3-3/16 in W x 1-1/4 in D Steam Head |
| Amperage Rating | : | 17 A |
| Cable Length | : | 35 ft |
| Cable Type | : | Multi-Conductor |
| Connection Type | : | Compression x NPT |
| Drain Outlet Size | : | 1/2 in |
| Frequency Rating | : | 60 Hz |
| Housing Finish | : | Matte Black |
| Housing Material | : | Metal/Stainless Steel |
| Maximum Steam Room Size | : | 65 cu-ft |
| Minimum Steam Room Size | : | 1 cu-ft |
| Mounting Type | : | Surface |
| Phase | : | 1 ph |
| Power Rating | : | 4 kW |
| Safety Valve Size | : | 3/4 in |
| Steam Outlet Size | : | 3/4 in |
| Voltage Rating | : | 240 V |
| Water Inlet Size | : | 3/8 in |
- Compact design permits generator installation in a vanity, closet, or insulated attic or basement
- Includes 35' cable (alternative length extension cable sold separately)
- Recommended generator pan and auto drain 5GA-PAD-240 available for purchase separately
- Stainless steel tank

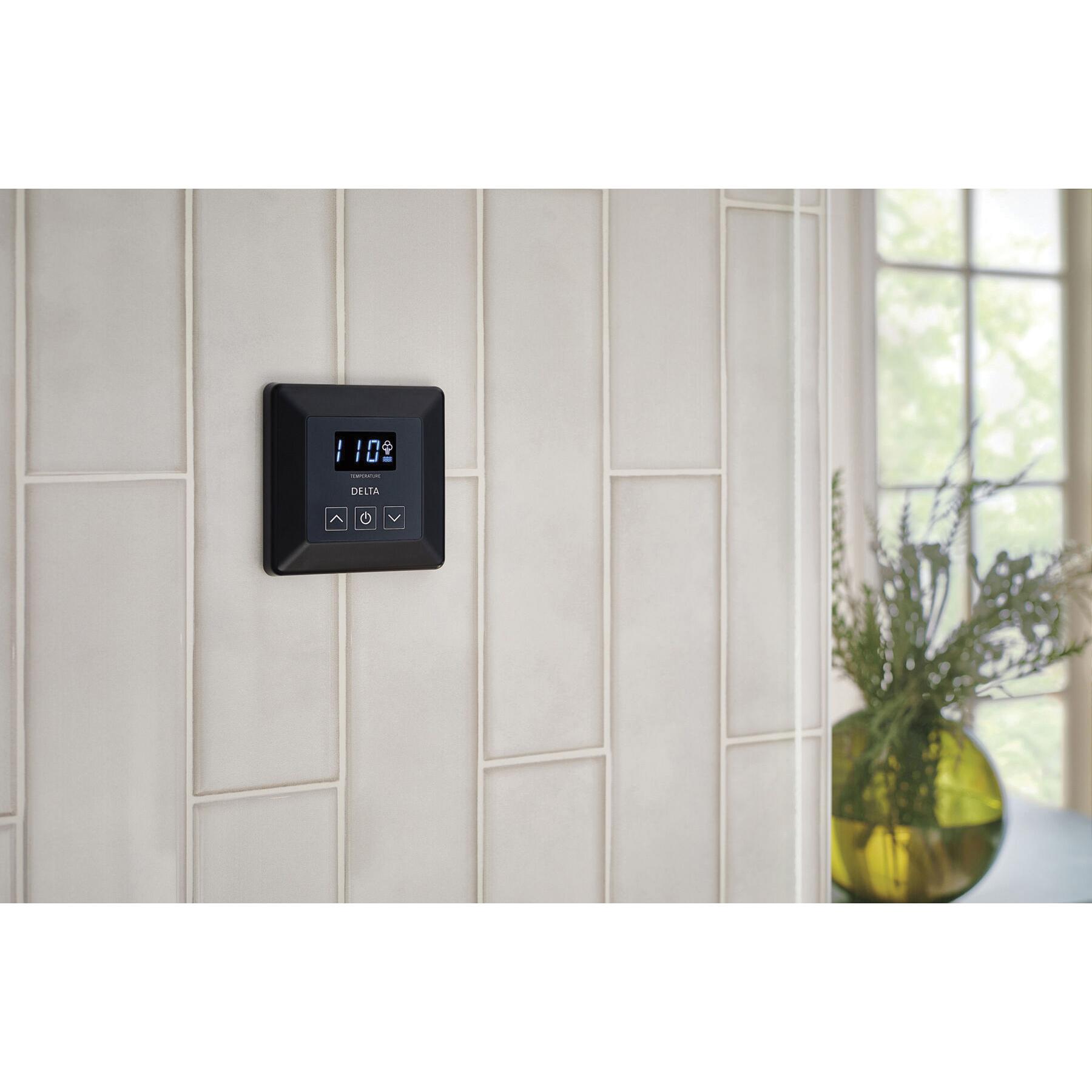

- Control turns system off and on and adjusts temperature
- Control must be installed inside the shower area

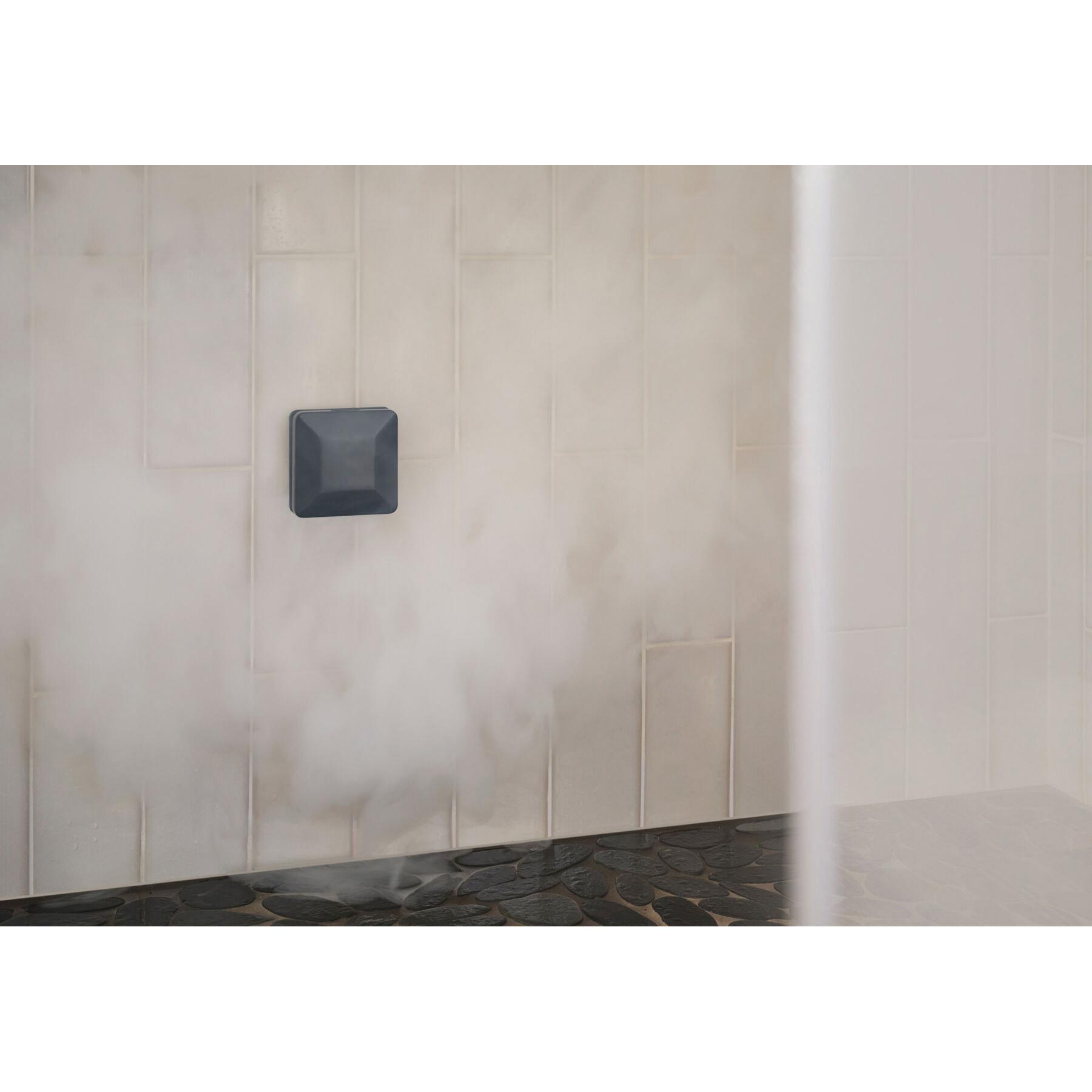

- Steam Head 3/4" NPT, includes silicone cover
- Essential oil reserve on top of steam head
