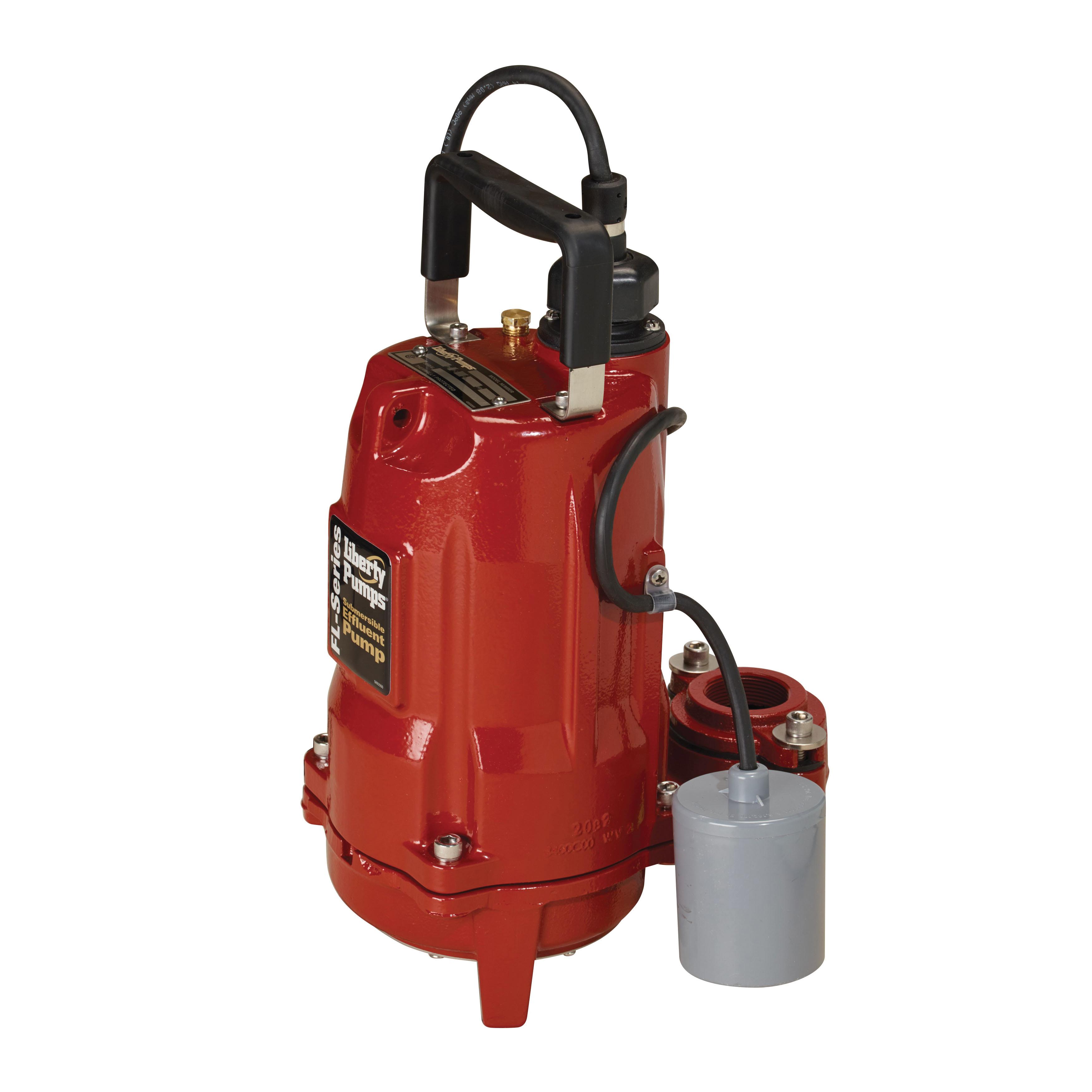

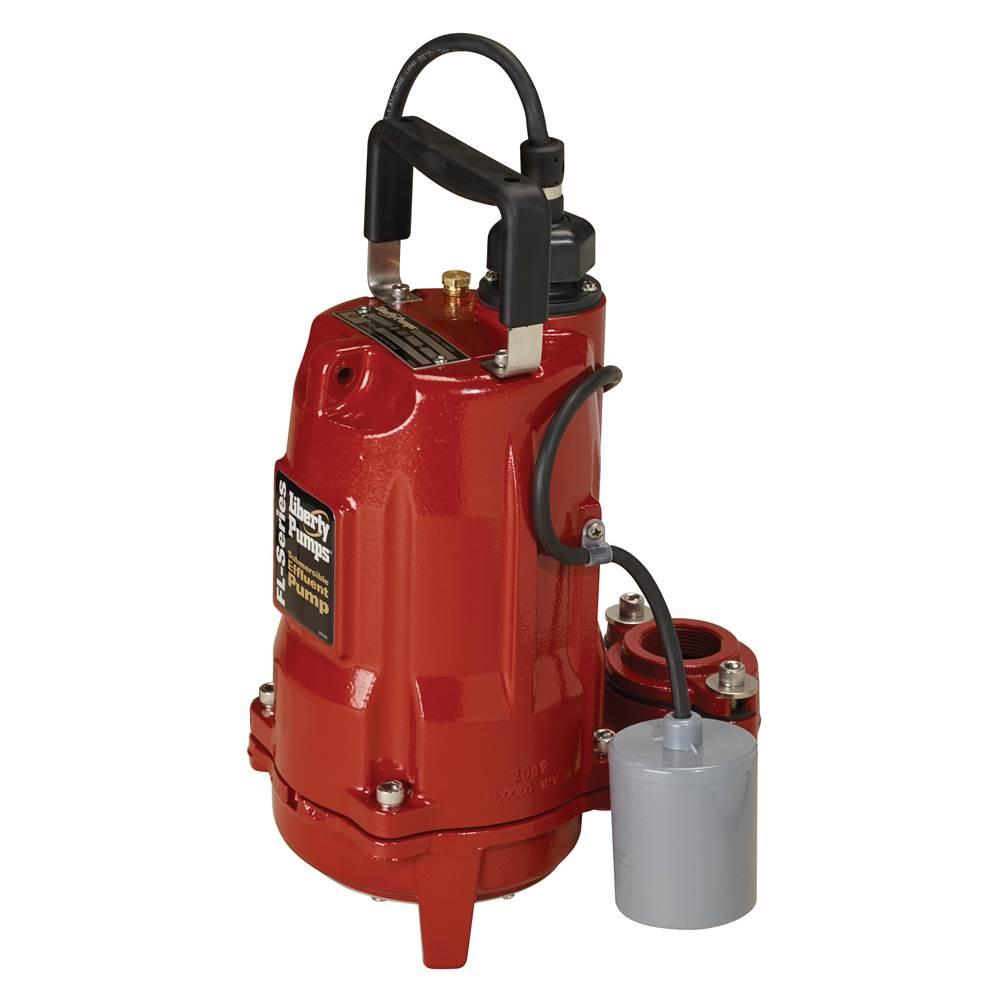

Liberty Pumps® FL50 Series FL51A-2 Submersible Effluent Pump, 115 VAC, 12 A, 60 Hz, 1/2 hp, 92 gpm, Cast Iron
- Manufacturer: Liberty Pumps
- Brand Name: Liberty Pumps®
- Part#: LIBFL51A-2
- MPN: FL51A-2
- UPC: 671812102963
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The FL50 Series by Liberty is a mid range effluent pump designed for STEP systems, mound systems, liquid waste transfer and higher head dewatering applications. Built of heavy cast iron with an epoxy powder coat finish and stainless steel fasteners, the FL50 will provide years of reliable performance.
Liberty Pumps® Submersible Effluent Pump, FL50 Series, 115 VAC, 12 A, 60 Hz Frequency, HP Rating: 1/2 hp, 3450 rpm Speed, 92 gpm Flow Rate, 1 ph, 1-1/2 in, 2 in Discharge, 25 ft Cord Length, Maximum Feet of Head: 48 ft, 248 deg F, Cast Iron Impeller, Dimensions: 12.8 in H x 11.2 in W, Cast Iron, Powder-Coated
| Amperage Rating | : | 12 A |
| Cord Length | : | 25 ft |
| Dimensions | : | 12.8 in H x 11.2 in W |
| Discharge Size | : | 1-1/2 in, 2 in |
| Finish | : | Powder-Coated |
| Flow Rate | : | 92 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/2 hp |
| Impeller Material | : | Cast Iron |
| Material | : | Cast Iron |
| Maximum Feet of Head | : | 48 ft |
| Phase | : | 1 ph |
| Series | : | FL50 Series |
| Speed Rating | : | 3450 rpm |
| Temperature Rating | : | 248 deg F |
| Voltage Rating | : | 115 VAC |
- Semi-open impeller permits passage of solids without clogging
- Heavy cast iron construction
- Stainless steel fasteners
- 416 stainless steel rotor shaft
- Permanently lubricated upper and lower ball bearings
- Oil-filled hermetically sealed motor with thermal overload protection
- Unitized carbon and ceramic shaft seal
- 1-1/2 in or 2 in dual-sized discharge flange
- Quick-disconnect power cord in 10 ft length standard
