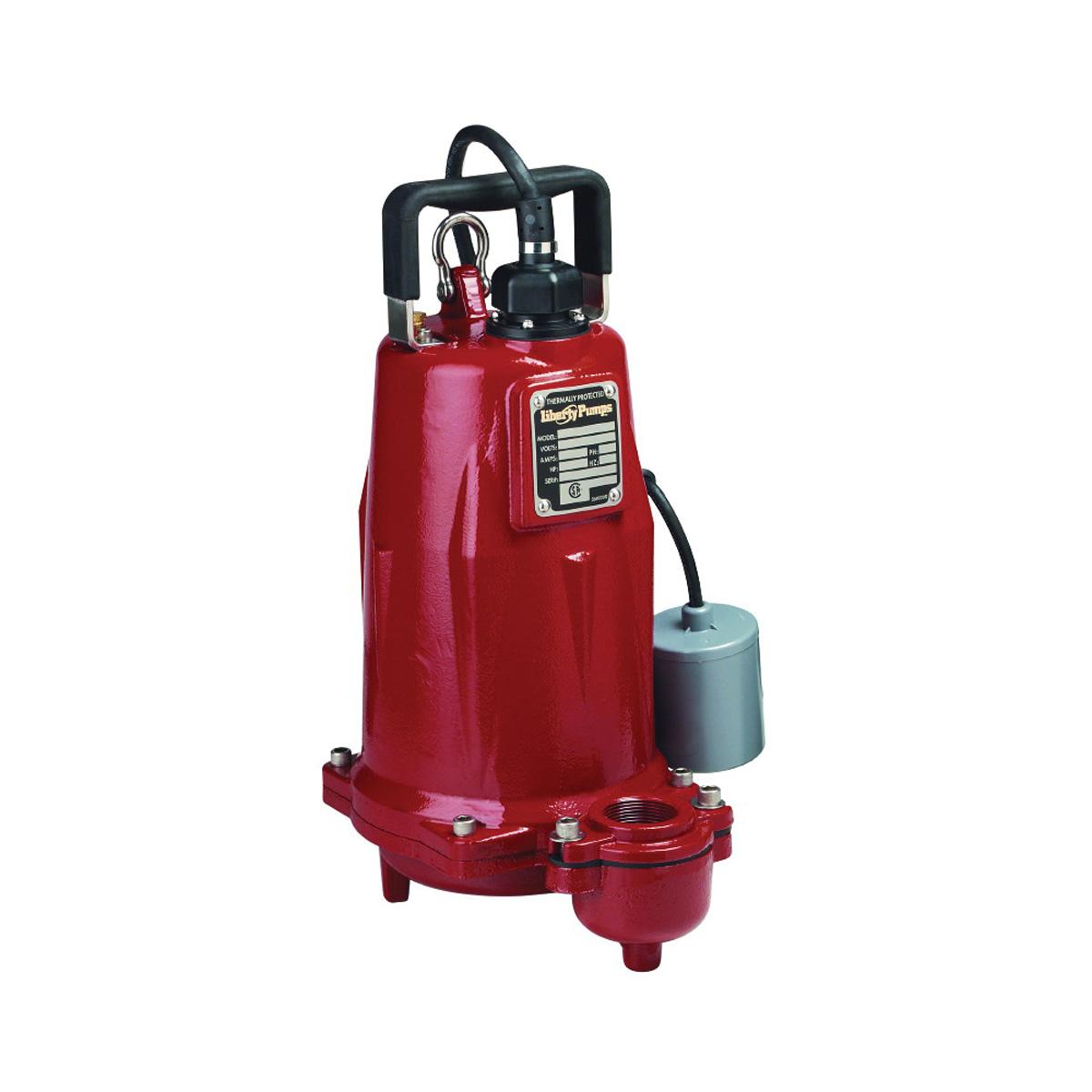

Liberty Pumps® FL150 Series FL152M-2 Manual High-Head Submersible Effluent Pump, 208 to 230 VAC, 15 A, 60 Hz, 1-1/2 hp
- Manufacturer: Liberty Pumps
- Brand Name: Liberty Pumps®
- Part#: LIBFL152M
- MPN: FL152M-2
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The FL150 Series by Liberty is a 1.5 hp effluent pump designed for STEP systems, mound systems, liquid waste transfer and higher head dewatering applications. The pump features a dual sized threaded discharge of 1-1/2 in and 2 in for connection to either size pipe. Built of heavy cast iron with an epoxy powder-coat finish and stainless steel fasteners, the FL150 Series will provide years of reliable performance.
Liberty Pumps® Manual High-Head Submersible Effluent Pump, FL150 Series, 208 to 230 VAC, 15 A, 60 Hz Frequency, HP Rating: 1-1/2 hp, 3450 rpm Speed, 125 gpm Flow Rate, 1 ph, 1-1/2 in, 2 in Discharge, 25 ft Cord Length, Maximum Feet of Head: 110 ft, Cast Iron Impeller, Dimensions: 18.3 in H x 11.8 in W, Cast Iron
| Amperage Rating | : | 15 A |
| Cord Length | : | 25 ft |
| Dimensions | : | 18.3 in H x 11.8 in W |
| Discharge Size | : | 1-1/2 in, 2 in |
| Flow Rate | : | 125 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1-1/2 hp |
| Impeller Material | : | Cast Iron |
| Material | : | Cast Iron |
| Maximum Feet of Head | : | 110 ft |
| Phase | : | 1 ph |
| Series | : | FL150 Series |
| Speed Rating | : | 3450 rpm |
| Voltage Rating | : | 208 to 230 VAC |
- 3/4 in solids handling
- Heavy cast iron construction
- Semi-open cast iron impeller
- Stainless steel rotor shaft
- Dual shaft seals
- Single float, mercury-free level control
- Fully adjustable pumping range
- 2 in FNPT threaded discharge with 1-1/2 in FNPT flange provided
- Quick-disconnect power cord 25 ft length standard
