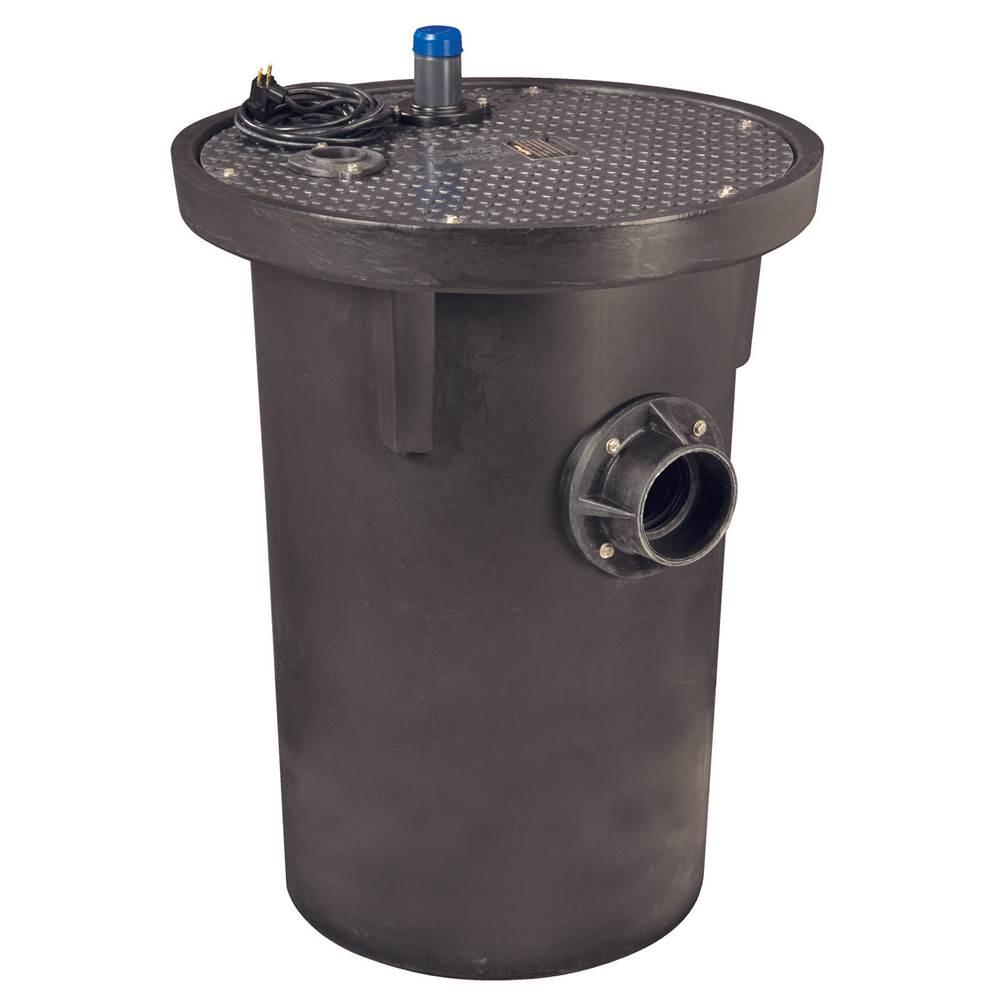

Liberty Pumps® 700 Series 702/LE51A Sewage Ejector System, 115 VAC, 12 A, 1/2 hp, 140 gpm, Polyethylene
- Manufacturer: Liberty Pumps
- Brand Name: Liberty Pumps®
- Part#: LIB702/LE51A
- MPN: 702/LE51A
- UPC: 671812100785
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
For multi-unit residential and commercial installations, the 700 Series simplex sewage package arrives fully assembled with any of Liberty's LE Series sewage pumps. Available with many options including 2 in discharge and pre-mounted alarm floats.
Liberty Pumps® Sewage Ejector System, 700 Series, 115 VAC, 12 A, HP Rating: 1/2 hp, 1725 rpm Speed, 140 gpm Flow Rate, 1 ph, 2 in Discharge, 70 gal Capacity, Maximum Feet of Head: 24 ft, 221 deg F, Dimensions: 30 in L x 30 in W x 40 in H, Polyethylene
| Amperage Rating | : | 12 A |
| Capacity | : | 70 gal |
| Dimensions | : | 30 in L x 30 in W x 40 in H |
| Discharge Size | : | 2 in |
| Flow Rate | : | 140 gpm |
| HP Rating | : | 1/2 hp |
| Material | : | Polyethylene |
| Maximum Feet of Head | : | 24 ft |
| Phase | : | 1 ph |
| Series | : | 700 Series |
| Speed Rating | : | 1725 rpm |
| Temperature Rating | : | 221 deg F |
| Voltage Rating | : | 115 VAC |
- Pre-assembled sewage ejector system
- Stainless steel cover bolts
- 2 in discharge
- 2 in threaded vent flange
- 4 in inlet hub with rubber pipe seal
- Heavy-duty structural foam basin
- Torque-stop in pump restraints
- Compression molded fiberglass cover with no-skid pattern
