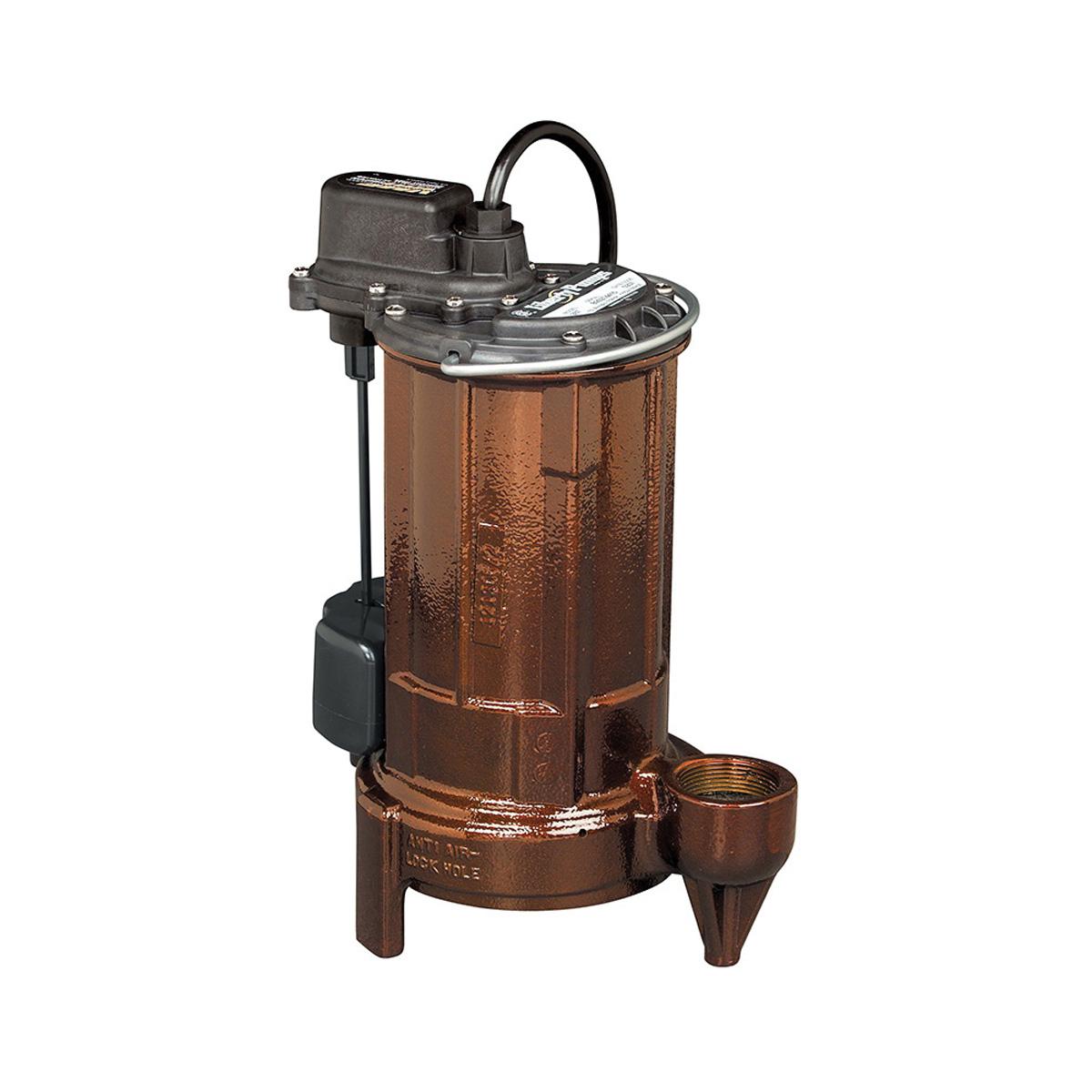

Liberty Pumps® 280 Series 283-2 Sump Pump, 115 V, 8 A, 1/2 hp, 68 gpm, 40 ft Max Feet of Head, Iron, Black/Bronze/Gray
- Manufacturer: Liberty Pumps
- Brand Name: Liberty Pumps®
- Part#: LIB283-2
- MPN: 283-2
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
With a shut-off head of 37 ft and 3/4 in solids handling capability, the 280 Series by Liberty covers a wide range of low head to mid range pump applications. Designed for STEP systems, mound systems, liquid waste transfer and high output sump applications, you can count on the 280 Series to offer superior performance. Designed with Liberty's unique one-piece cast iron body and quick disconnect cords 25 ft lengths. High output 1/2 hp submersible with rugged cast iron housing. The Liberty 280 Series provides a cost effective mid range pump for on-site waste water systems, liquid waste transfer and commercial heavy-duty sump pump applications that require higher head or more flow. Designed around Liberty's unique uni body casting, the 280 Series will provide years of reliable performance.
Liberty Pumps® Sump Pump, 115 V, 8 A, 60 Hz, 1/2 hp, 3450 rpm, 68 gpm Flow Rate, 1 ph Phase, 1-1/2 in Discharge, 25 ft Cord Length, Maximum Feet of Head: 40 ft, 140 deg F, Polymer Impeller, Iron, 13 in H, Black/Bronze/Gray
| Amperage Rating | : | 8 A |
| Color | : | Black/Bronze/Gray |
| Cord Length | : | 25 ft |
| Dimensions | : | 13 in H |
| Discharge Size | : | 1-1/2 in |
| Flow Rate | : | 68 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/2 hp |
| Impeller Material | : | Polymer |
| Material | : | Iron |
| Maximum Feet of Head | : | 40 ft |
| Phase | : | 1 ph |
| Series | : | 280 Series |
| Speed Rating | : | 3450 rpm |
| Temperature Rating | : | 140 deg F |
| Voltage Rating | : | 115 V |
- Liberty's unique, one-piece uni-body casting
- Quick-disconnect 25 ft standard power cord allows replacement of cord in seconds without breaking seals to motor
- 3/4 in solids handling
- Permanently lubricated upper and lower bearings
- Oil-filled, hermetically sealed motors with thermal overload protection
- Stainless corrosion-resistant steel removable bottom screen, rotor shaft and fasteners
- Vortex style impeller permitting passage of solids up to 3/4 in
- Epoxy powder-coat finish
- Easily removable stainless steel bottom screen
