Franklin Electric 554222101 LGP554222101
  1. pin-int

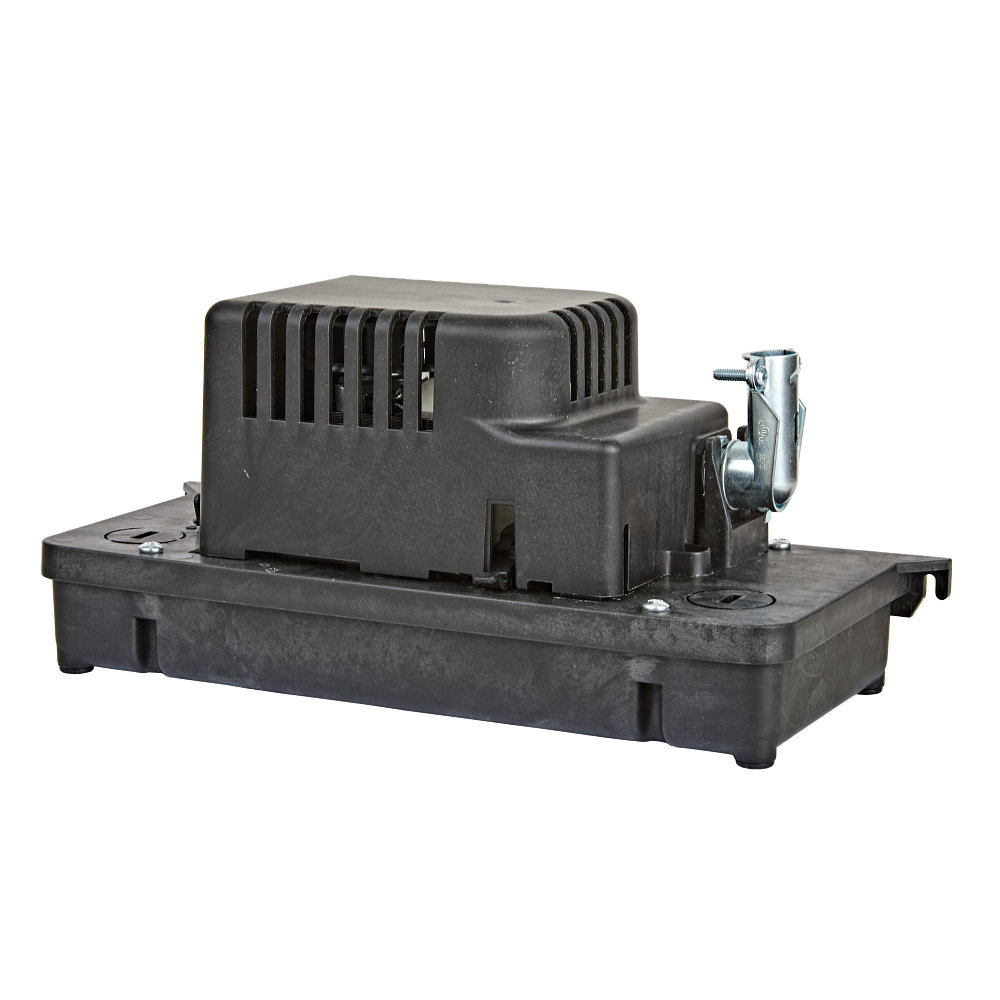

Franklin Electric Plenum Series VCCA-20-P (230 V) 554222101 Low-Profile Condensate Pump, 115/230 V

Franklin Electric Plenum Series VCCA-20-P (230 V) 554222101 Low-Profile Condensate Pump, 115/230 V

  • Manufacturer: Franklin Electric
  • Brand Name: Franklin Electric
  • Part#: LGP554222101
  • MPN: 554222101
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

VCCA-20-P Series Low Profile pump is designed for automatic collection and removal of condensate from air conditioning, refrigeration, and dehumidification equipment installed in air handling and plenum applications having limited space and where gravity drainage is not possible or practical.

Franklin Electric Low-Profile Condensate Pump, Plenum Series, Model: VCCA-20-P (230 V), 115/230 V, 1.5 A, 75 W, 1/30 hp, 50/60 Hz, 1.33 gpm Flow Rate, 3/8 in Discharge, 17 ft Maximum Head, 6 ft Cord, 140 deg F, 11.99 in L x 5.03 in W x 5.24 in H, Stainless Steel, For Use With: Air Conditioners, Dehumidifiers

Amperage Rating      :      1.5 A
Cord Size      :      6 ft
Dimensions      :      11.99 in L x 5.03 in W x 5.24 in H
Discharge Size      :      3/8 in
Flow Rate      :      1.33 gpm
Frequency Rating      :      50/60 Hz
HP Rating      :      1/30 hp
Housing Material      :      Stainless Steel
Material      :      Stainless Steel
Maximum Feet of Head      :      17 ft
Maximum Head      :      17 ft
Model      :      VCCA-20-P (230 V)
Operating Temperature      :      140 deg F
Power Rating      :      75 W
Pump Type      :      Condensate
Series      :      Plenum Series
Suitable For Use With      :      Air Conditioners, Dehumidifiers
Temperature Rating      :      140 deg F
Voltage Rating      :      115/230 V
  • The pump is labeled "suitable for use in air handling spaces"
  • 1/30 hp motor
  • Low profile for limited space applications
  • 72" 3-conductor lead wires with adjustable conduit fitting for 1/2" diameter
  • asaaflexible metal conduit
  • 1/4-turn, twist-off locking check valve discharge adapter for 3/8" ID tubing
  • Additional check valve included for 3/8" copper tubing
  • Pump switch test lever (for manual test operation)
  • Rubber feet on bottom of tank to isolate pump when placed on hard surface
  • Three 1-1/8" diameter inlets
  • Easy-to-knock-out plugs in two of the inlet openings
  • Includes overflow detection switch with 72" leads
  • Intermittent liquid temperature up to 140 deg F
  • Designed for hard-wire installation only
  • Thermal overload protection
  • Stainless steel motor shaft
  • cCSAus
  • pdfOwners/User Manual https://assets.unilogcorp.com/267/ITEM/DOC/Franklin_Electric_554222101_Owners_User_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Franklin_Electric_554222101_Specification_Sheet.pdf
