Grundfos DDA 7.5-16 97722357 Chemical Metering Pump, Dosing, 100-240 V, 0.17 x 0.25 in, 0.25 x 0.375 in, 0.375 x 0.5 in
- Manufacturer: Grundfos
- Brand Name: Grundfos
- Part#: GRU97722357
- MPN: 97722357
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability

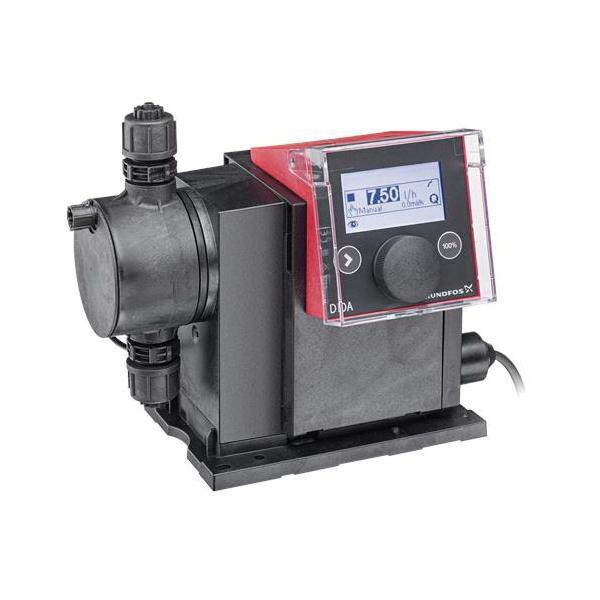

The SMART Digital DDA is a compact positive displacement, diaphragm dosing pump with variable speed drive (stepper motor) and intelligent control electronics with minimum energy consumption. The SMART Digital Dosing Series operates at full stroke length to ensure optimum accuracy, priming and suction, even for high viscosity or degassing liquids. The duration of each discharge stroke varies according to the capacity set, resulting in optimum smooth and continuous discharge flow. The click stop mounting plate allows installation in three different positions without using any additional accessories. The control cube can be turned easily into front, left or right position. The click wheel and the multi-colored backlit graphical, plain text LC display make commissioning and operation intuitive. The control elements are protected by a transparent cover.
Grundfos Chemical Metering Pump, Model: DDA 7.5-16, Dosing Chemical Metering Pump, 100-240 V, 50/60 Hz, 24 W Power Consumption, 1 ph Phase, 0.17 x 0.25 in, 0.25 x 0.375 in, 0.375 x 0.5 in Connection, Tube Connection, 1.981 gph Flow Rate, 145.04 psi, Turndown Ratio: 1:3000, 1 % Accuracy, A with Alarm Relay and Analog Input Flow Control, 19.7 ft Suction Lift, 190 spm Strokes per Minute, 50 mPa-s Maximum Viscosity, Ceramic Trim, EPDM Softgoods, Polypropylene Body, Red, 7.91 in H x 11 in W
| Accuracy | : | 1 % |
| Body Material | : | Polypropylene |
| Chemical Metering Pump Type | : | Dosing |
| Color | : | Red |
| Connection Size | : | 0.17 x 0.25 in, 0.25 x 0.375 in, 0.375 x 0.5 in |
| Connection Type | : | Tube |
| Dimensions | : | 7.91 in H x 11 in W |
| Flow Control Type | : | A with Alarm Relay and Analog Input |
| Flow Rate | : | 1.981 gph |
| Frequency Rating | : | 50/60 Hz |
| Maximum Viscosity | : | 50 mPa-s |
| Model | : | DDA 7.5-16 |
| Phase | : | 1 ph |
| Power Consumption | : | 24 W |
| Pressure Rating | : | 145.04 psi |
| Softgoods Material | : | EPDM |
| Strokes per Minute | : | 190 spm |
| Suction Lift | : | 19.7 ft |
| Trim Material | : | Ceramic |
| Turndown Ratio | : | 1:3000 |
| Voltage Rating | : | 100-240 V |
- Auto deaeration during pump standby to avoid breakdowns due to air locking
- Two SlowMode steps (anti-cavitation), 50% (maximum flow: 0.9906 US gpm) and 25% (maximum flow)
- Service information display to show when service and which wear-part order number is required
- Two-step key lock function to protect the pump against unauthorized access
- Additional display function to provide further information, e.g. the actual mA input signal
- Counter for total dosed volume (resettable), operating hours
- Save and load customized settings as well as reload of factory settings
