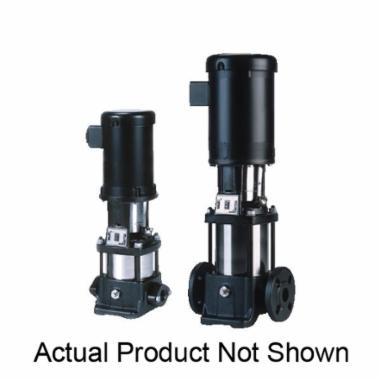

Grundfos CR Series 96083182 3-Stage Centrifugal Pump, 1/2 hp, 25 mm, 32 mm Inlet Connection, 15.4 gpm
- Manufacturer: Grundfos
- Brand Name: Grundfos
- Part#: GRU96083182
- MPN: 96083182
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Vertical, multi-stage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron - all other wetted parts are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via combined DIN-ANSI-JIS flanges.
Grundfos 3-Stage Centrifugal Pump, Series: CR Series, 60 Hz Frequency, HP Rating: 1/2 hp, 25 mm, 32 mm Inlet Connection, 25 mm, 32 mm Outlet Connection, 15.4 gpm Flow Rate, 362.59 psi Maximum, 93.51 ft Maximum Head, 3485 rpm Speed, -4 to 248 deg F, 56C Frame, Vertical Mounting, Cast Iron/Stainless Steel Housing, 9.84 in Overall Length, 8.27 in Overall Width, 12 in Overall Height
| Flow Rate | : | 15.4 gpm |
| Frame | : | 56C |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/2 hp |
| Housing Material | : | Cast Iron/Stainless Steel |
| Inlet Connection Size | : | 25 mm, 32 mm |
| Maximum Head | : | 93.51 ft |
| Maximum Pressure | : | 362.59 psi |
| Mounting Type | : | Vertical |
| Outlet Connection Size | : | 25 mm, 32 mm |
| Overall Height | : | 12 in |
| Overall Length | : | 9.84 in |
| Overall Width | : | 8.27 in |
| Series | : | CR Series |
| Speed Rating | : | 3485 rpm |
| Temperature Rating | : | -4 to 248 deg F |
- Compact, inline design fits into small footprint
- Easy installation and operation with settings and internal connections done at factory
- Highly efficient design reduces energy consumption by up to half compared to fixed speed pumps
- Unique cartridge seal design can be replaced in minutes
- Spacer coupling allows motor to be left in place during seal replacement
- Remote control/fieldbus monitoring and data collection
- Building management system compatible
- User friendly controller interface with advanced features and functionality
- Laser welded stainless impellers promote class leading efficiency
- 13 flow sizes, capable of producing up to almost 725 psi pressure and with a variety of shaft seals, rubber materials and supply voltages
