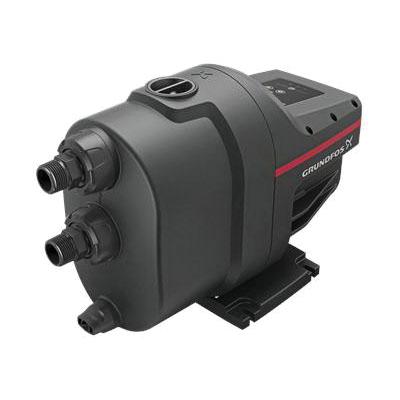

Grundfos 99631739 Booster Pump, 1 in Inlet, 1 in Outlet, Composite
- Manufacturer: Grundfos
- Brand Name: Grundfos
- Part#: GRU99631739
- MPN: 99631739
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The Grundfos SCALA1 is a fully integrated, all-in-one, self-priming, compact waterworks designed for pressure boosting in domestic and light commercial applications, such as garden irrigation or pressure boosting to one and two family houses and apartments.
Grundfos Booster Pump, Model: SCALA1 5-55, 230 V, 5.25 A, 1.09 hp Horsepower Rating, 1 ph ph, 1250 W Wattage, 21.5 gpm Flow Rate, 1 in Inlet, 1 in Outlet, 180.5 ft Head, 116 psi Working Pressure Rating, 55 dBA Sound Level, 32 to 131 deg F, X4D Enclosure, Composite, 466 mm L x 202 mm W x 316 mm H
| Amperage Rating | : | 5.25 A |
| Dimensions | : | 466 mm L x 202 mm W x 316 mm H |
| Enclosure Type | : | X4D |
| Flow Rate | : | 21.5 gpm |
| Head Size | : | 180.5 ft |
| Horsepower Rating | : | 1.09 hp |
| Inlet Size | : | 1 in |
| Material | : | Composite |
| Model | : | SCALA1 5-55 |
| Number of Phases | : | 1 ph |
| Outlet Size | : | 1 in |
| Sound Level | : | 55 dBA |
| Temperature Rating | : | 32 to 131 deg F |
| Voltage Rating | : | 230 V |
| Wattage | : | 1250 W |
| Working Pressure Rating | : | 116 psi |
- Dry running protection that will automatically stop the pump in case of water shortage
- Cycling protection which will prevent pump starting frequently in case of minor leakages in installation
- Max runtime protection can stop the pump after a desired period of continuous operation, preventing potential damage due flooding in case of pipe breakages
