Mission™ MR02 88 MRBMR02 88
  1. pin-int

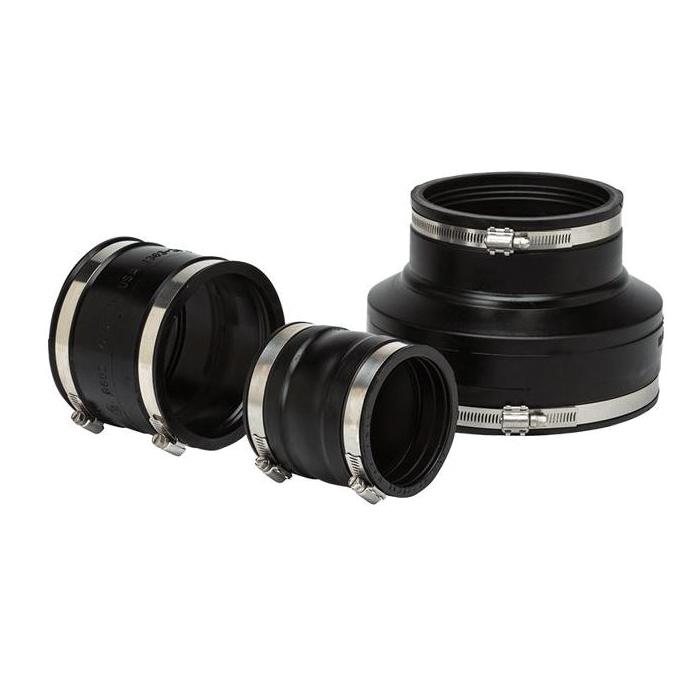

Mission™ FLEX-SEAL® MR02 88 Unshielded Sewer Coupling, 8 in, Cast Iron x PVC, Synthetic Rubber, Natural

Mission™ FLEX-SEAL® MR02 88 Unshielded Sewer Coupling, 8 in, Cast Iron x PVC, Synthetic Rubber, Natural

  • Manufacturer: Mission Rubber Company
  • Brand Name: Mission™
  • Part#: MRBMR02 88
  • MPN: MR02 88
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

Flexible, unshielded sewer couplings connect 8 in Clay pipe to 8 in Cast Iron or Plastic pipe. For non-pressure, gravity flow applications only. Recommended for underground installations, although some jurisdictions will allow use above ground. Easy to install and reuse. Custom, large diameter sizes available.

Mission™ Unshielded Sewer Coupling, MR02 Series, 8 in Fitting, Cast Iron x PVC Connection, 1000 psi Tensile Strength, 250 % Elongation, 60 in-lb Torque, Material Standard: ASTM A240, A240M-06, C425-04, C1173-06, Synthetic Rubber, Natural, 10 in L x 6 in W, Domestic/Import: Domestic, Additional Information: 5/16 in Hex Screw

Additional Information      :      5/16 in Hex Screw
Color      :      Natural
Connection Type      :      Cast Iron x PVC
Dimensions      :      10 in L x 6 in W
Domestic/Import      :      Domestic
Elongation      :      250 %
Fitting Size      :      8 in
Material Standard      :      ASTM A240, A240M-06, C425-04, C1173-06
Material      :      Synthetic Rubber
Series      :      MR02 Series
Tensile Strength      :      1000 psi
Torque Rating      :      60 in-lb
  • Unshielded coupling is a flexible sewer coupling designed to connect similar and dissimilar pipe materials and sizes
  • Leak-proof seal - stainless steel clamps provide a positive seal when properly tightened to 60 in/lb of torque, axially slotted clamps enable bands to tighten independently to accommodate variances in the outside diameters of the pipe to be joined, ensuring a water-tight, leak-proof and root-proof seal
  • Corrosion-resistant - use of 300 Series stainless steel components are highly effective in a variety of environments, such as marine applications, poorly aerated or moist soils, contaminated ground conditions (particularly industrial fill sites) and where the ground water contains chloride, sulfates or bicarbonates
  • Withstands tension and compression - synthetic rubbers permit a substantial degree of distortion without change in basic physical-resistance, unlike other manufacturers thermoplastic coupling materials, molded synthetic rubber gasket is strong, durable and resilient to ultraviolet rays, ozone, fungus growth, natural erosive properties and normal sewer gases
  • Pre-set calibration - all Flex-Seal® unshielded couplings are designed to be installed with a pre-set torque wrench calibrated to 60 in/lb maximum to accommodate the 300 Series stainless steel 5/16 in hex head screw
