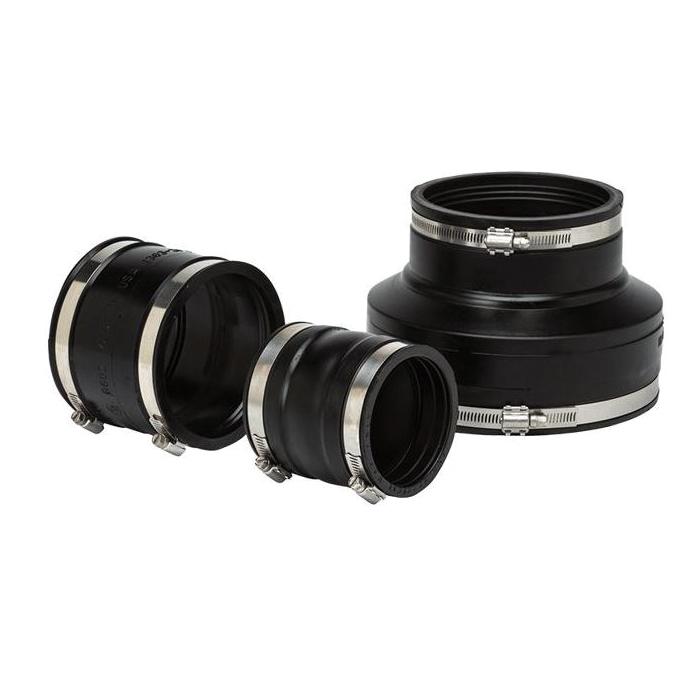

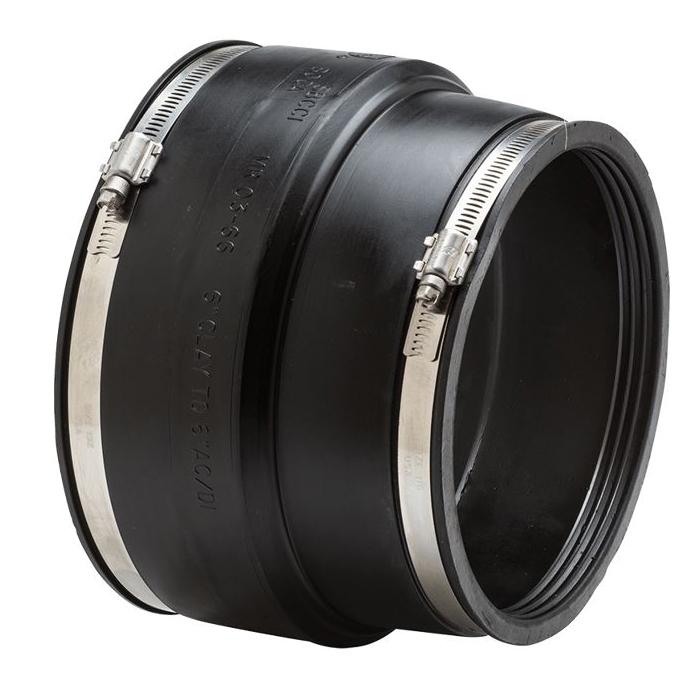

Mission™ FLEX-SEAL® MR02 43 Unshielded Sewer Coupling, 4 x 3 in, Cast Iron x PVC, Synthetic Rubber, Natural
- Manufacturer: Mission Rubber Company
- Brand Name: Mission™
- Part#: MRBMR02 43
- MPN: MR02 43
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Flexible, unshielded sewer couplings connect clay pipe to cast iron or Schedule 40 plastic pipe. For non-pressure, gravity flow applications only. Recommended for underground installations.
Mission™ Unshielded Sewer Coupling, MR02 Series, 4 x 3 in Fitting, Cast Iron x PVC Connection, 1000 psi Tensile Strength, 250 % Elongation, 60 in-lb Torque, Material Standard: ASTM A240, A240M-06, C425-04, C1173-06, Synthetic Rubber, Natural, 4 in W, Domestic/Import: Domestic, Additional Information: 5/16 in Hex Screw
| Additional Information | : | 5/16 in Hex Screw |
| Color | : | Natural |
| Connection Type | : | Cast Iron x PVC |
| Dimensions | : | 4 in W |
| Domestic/Import | : | Domestic |
| Elongation | : | 250 % |
| Fitting Size | : | 4 x 3 in |
| Material Standard | : | ASTM A240, A240M-06, C425-04, C1173-06 |
| Material | : | Synthetic Rubber |
| Series | : | MR02 Series |
| Tensile Strength | : | 1000 psi |
| Torque Rating | : | 60 in-lb |
- Unshielded coupling is a flexible sewer coupling designed to connect similar and dissimilar pipe materials and sizes
- Leak-proof seal - stainless steel clamps provide a positive seal when properly tightened to 60 in/lb of torque, axially slotted clamps enable bands to tighten independently to accommodate variances in the outside diameters of the pipe to be joined, ensuring a water-tight, leak-proof and root-proof seal
- Corrosion-resistant - use of 300 Series stainless steel components are highly effective in a variety of environments, such as marine applications, poorly aerated or moist soils, contaminated ground conditions (particularly industrial fill sites) and where the ground water contains chloride, sulfates or bicarbonates
- Withstands tension and compression - synthetic rubbers permit a substantial degree of distortion without change in basic physical-resistance, unlike other manufacturers thermoplastic coupling materials, molded synthetic rubber gasket is strong, durable and resilient to ultraviolet rays, ozone, fungus growth, natural erosive properties and normal sewer gases
- Pre-set calibration - all Flex-Seal® unshielded couplings are designed to be installed with a pre-set torque wrench calibrated to 60 in/lb maximum to accommodate the 300 Series stainless steel 5/16 in hex head screw
