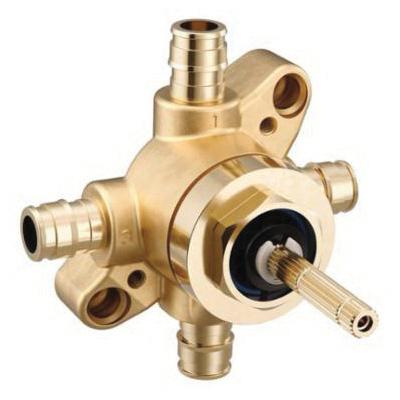

Moen® U361CX Transfer Valve, 1/2 in Inlet, Cold Expansion PEX Inlet, 1/2 in Outlet, Cold Expansion PEX Outlet, Brass
- Manufacturer: Moen Incorporated
- Brand Name: MOEN®
- Part#: MONU361CX
- MPN: U361CX
- UPC: 026508319642
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Introducing M-CORE™, a valve system that's simpler and faster to install and offers functionality with desired style choices to create an ideal shower system.
Moen® Transfer Valve, 1/2 in Inlet, Cold Expansion PEX Inlet, 1/2 in Outlet, Cold Expansion PEX Outlet, 100 psi, Brass, Wall Mounting, 160 deg F, 3 in L x 3-5/8 in W x 3 in D
| Dimensions | : | 3 in L x 3-5/8 in W x 3 in D |
| Inlet Size | : | 1/2 in |
| Inlet Type | : | Cold Expansion PEX |
| Material | : | Brass |
| Mounting Type | : | Wall |
| Outlet Size | : | 1/2 in |
| Outlet Type | : | Cold Expansion PEX |
| Pressure Rating | : | 100 psi |
| Temperature Rating | : | 160 deg F |
- Simplified transfer valve trim offering, one trim will work with either the 2/3 (U231) function or 3/6 (U361) function valve, M-CORE® transfer valve's and trim are equipped with detents that allow for noticeable transition between functions
- Built-on the MOEN® M-PACT® common valve system allowing you to update the faucet style in the future without replacing any plumbing
Instruction/Installation Manual
