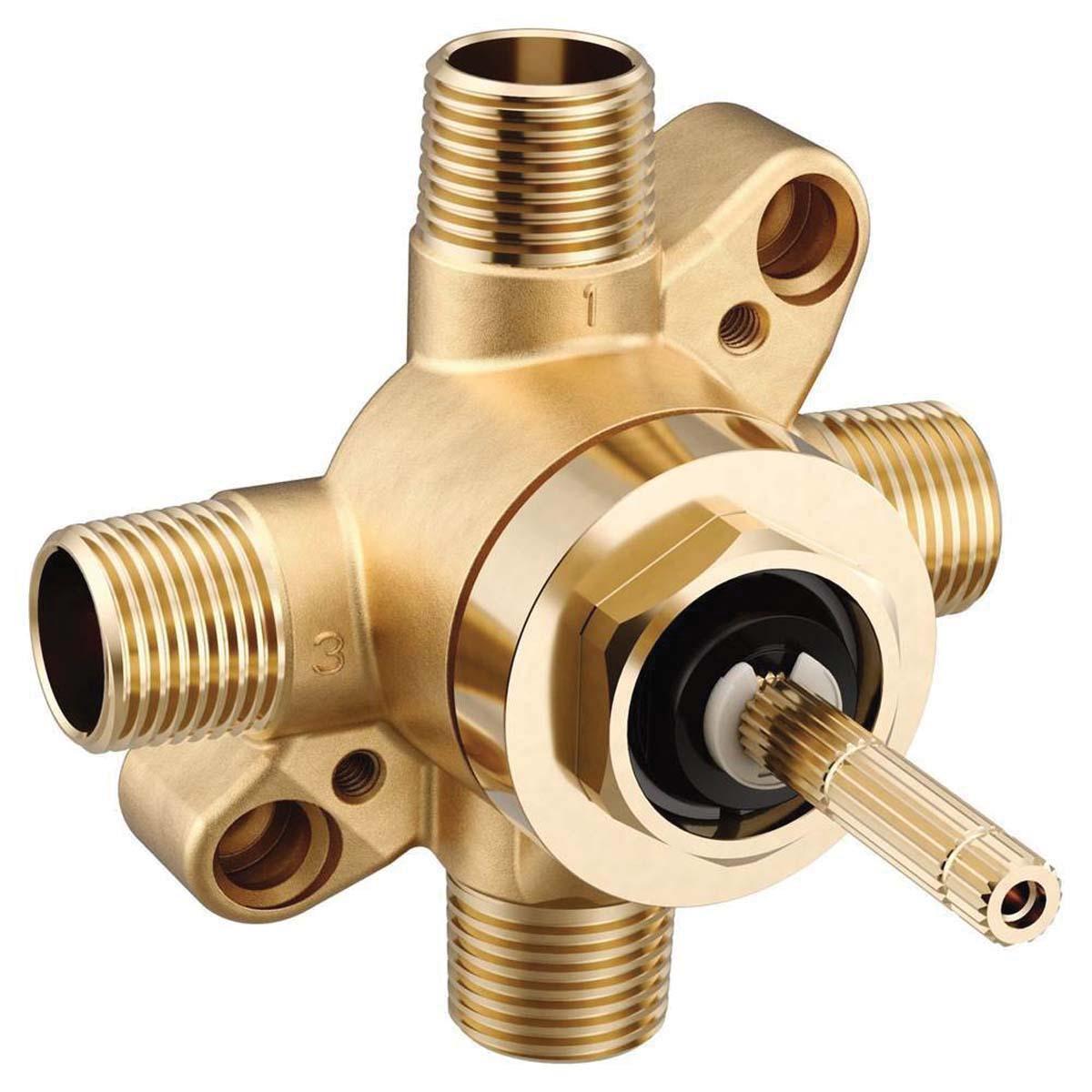

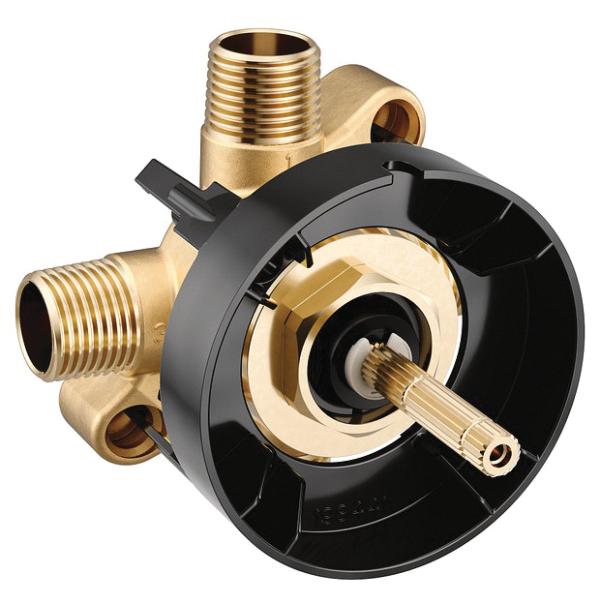

Moen® U231 Series U231CI Port 2/3 Independent Function Transfer Valve, 1/2 in Inlet, CC, IPS Inlet, 1/2 in Outlet
- Manufacturer: Moen Incorporated
- Brand Name: MOEN®
- Part#: MONU231CI
- MPN: U231CI
- UPC: 026508319574
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Introducing M-CORE™, a valve system that's simpler and faster to install and offers functionality with desired style choices to create an ideal shower system.
Moen® Port 2/3 Independent Function Transfer Valve, U231 Series, 1/2 in Inlet, CC, IPS Inlet, 1/2 in Outlet, CC, IPS Outlet, 4 Ways, Brass, Finish: Unfinished, Wall Mounting, 3-1/2 in L x 3-1/2 in W
| Dimensions | : | 3-1/2 in L x 3-1/2 in W |
| Finish | : | Unfinished |
| Inlet Size | : | 1/2 in |
| Inlet Type | : | CC, IPS |
| Material | : | Brass |
| Mounting Type | : | Wall |
| Number of Ways | : | 4 |
| Outlet Size | : | 1/2 in |
| Outlet Type | : | CC, IPS |
| Series | : | U231 Series |
- M-CORE® transfer valve's and trim are equipped with detents that allow for noticeable transition between functions
- Built-on the MOEN® M-PACT® common valve system allowing you to update the faucet style in the future without replacing any plumbing
- Durable ceramic cartridge
Full Engineering Drawing
