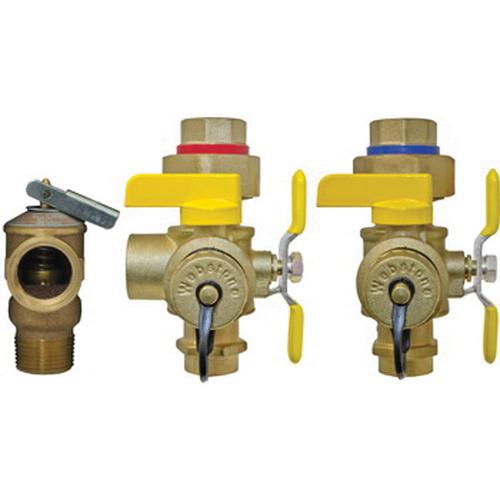

Webstone 5044 Series 50443WPR The Isolator Service Valve Kit, 3/4 in, IPS Union x Sweat, 131 to 600 psi, Brass
- Manufacturer: NIBCO Inc
- Brand Name: Webstone
- Part#: WBS50443WPR
- MPN: 50443WPR
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Webstone The Isolator Service Valve Kit, 5044 Series, 3/4 in Nominal, IPS Union x Sweat Connection, 131 to 600 psi, 200000 Btu/hr Nominal Capacity, Brass Body, PTFE Seat, Brass Stem, PTFE Seal, Brass Packing, Stainless Steel/Vinyl Handle, 100 to 180 deg F, 4-15/16 in L
| Body Material | : | Brass |
| Connection Type | : | IPS Union x Sweat |
| Dimensions | : | 4-15/16 in L |
| Handle Material | : | Stainless Steel/Vinyl |
| Nominal Capacity | : | 200000 Btu/hr |
| Nominal Size | : | 3/4 in |
| Packing Material | : | Brass |
| Pressure Rating | : | 131 to 600 psi |
| Seal Material | : | PTFE |
| Seat Material | : | PTFE |
| Series | : | 5044 Series |
| Stem Material | : | Brass |
| Temperature Rating | : | 100 to 180 deg F |
- Heavy duty forged brass valves with full port main flow channel and drain
- Hi-flow full port 3/4 in drain offers the greatest flow rate
- 304 stainless steel wing handle for easy actuation of the main ball
- Color-coded insulator rings for easy identification of hot and cold valves
- Aluminum handle for easy actuation of the drain ball
- Protection for the life of your system, emergencies are handled with quick quarter-turn ball valve shut-offs for total isolation of your system in seconds
