NIBCO® H-41414 WBS41414
  1. pin-int

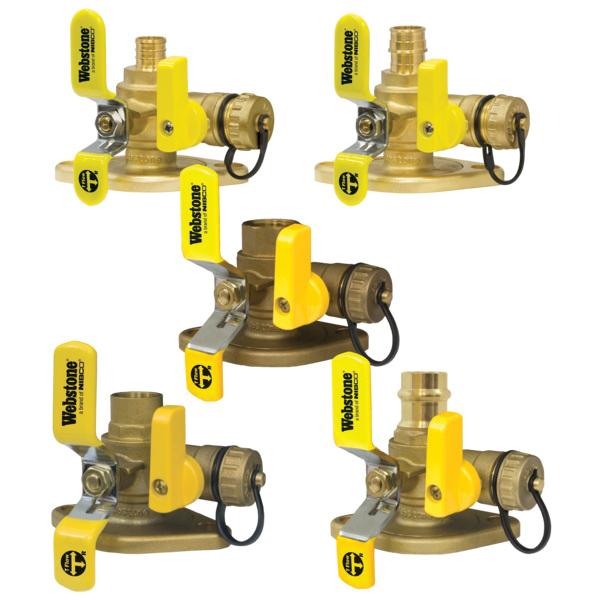

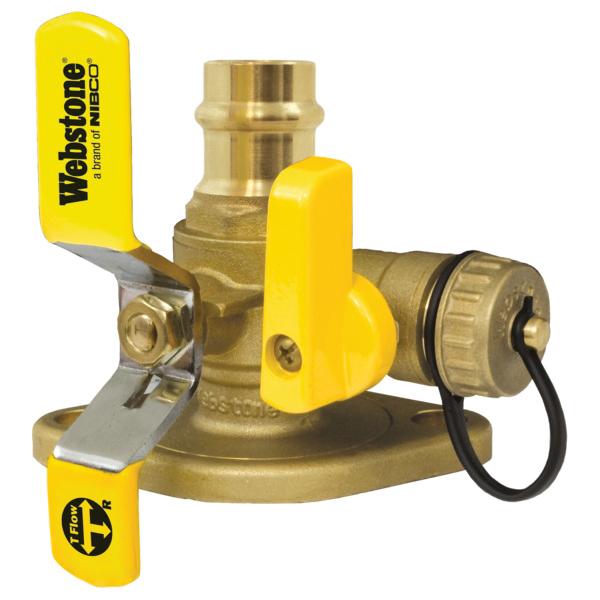

NIBCO® 4141 Series H-41414 Ball Valve with Rotating Flange, Multi-Function Drain, 1 in, IPS x Flanged, Brass

NIBCO® 4141 Series H-41414 Ball Valve with Rotating Flange, Multi-Function Drain, 1 in, IPS x Flanged, Brass

  • Manufacturer: NIBCO Inc
  • Brand Name: NIBCO®
  • Part#: WBS41414
  • MPN: H-41414
  • UPC: 018394414143
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

Isolator w/ Rotating Flange & Multi-Function Drain, Full Port Forged Brass Uni-Flange Ball Valve, w/ Detachable Rotating Flange, Multi-Function Hi-Flow Hose Drain, Adjustable Packing Glands, Nuts & Bolts.

NIBCO® Ball Valve, Series: 4141 Series, 1 in Nominal, IPS x Flanged Connection, Full Port, 600 psi WOG, 2-15/16 in Inlet to Outlet Length, 2-5/8 in Top to Inlet Center, Brass Body, PTFE Seat, Brass Stem, PTFE Seal, Brass Packing, Steel Handle, Brass Ball, 100 deg F, Domestic/Import: Import

Ball Material      :      Brass
Body Material      :      Brass
Connection Type      :      IPS x Flanged
Domestic/Import      :      Import
Handle Material      :      Steel
Inlet to Outlet Length      :      2-15/16 in
Nominal Size      :      1 in
Packing Material      :      Brass
Port Type      :      Full
Pressure Rating      :      600 psi WOG
Seal Material      :      PTFE
Seat Material      :      PTFE
Series      :      4141 Series
Stem Material      :      Brass
Temperature Rating      :      100 deg F
Top to Inlet Center      :      2-5/8 in

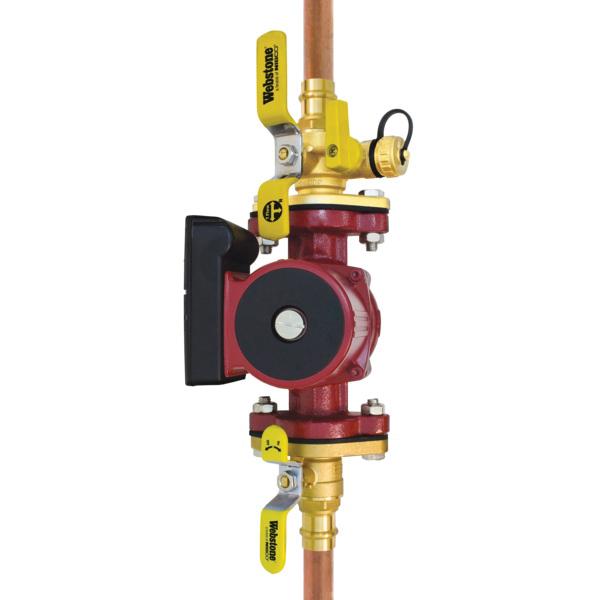

  • Easily Isolates the Pump for Replacement
  • Prevents Electrolysis and Eliminates Galvanic Corrosion
  • Rotating Flange is Secured by a Snug-Fit Snap-Ring that Provides Greater Control Over Positioning During Installation
  • Flange Features a Conical Inlet to Minimize Turbulence

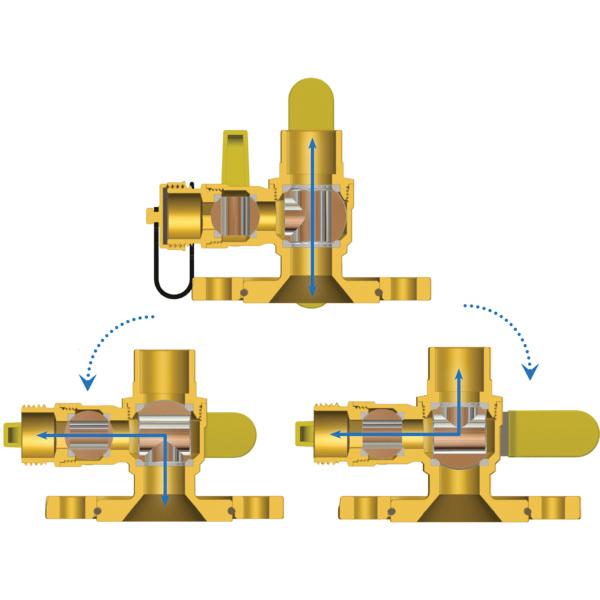

  • Multi-Function Drain Makes the Isolator the Only Valve That Drains From Either Side of the Pump
  • Fits Virtually Any Standard Circulator Pump
  • Saves 63 Minutes

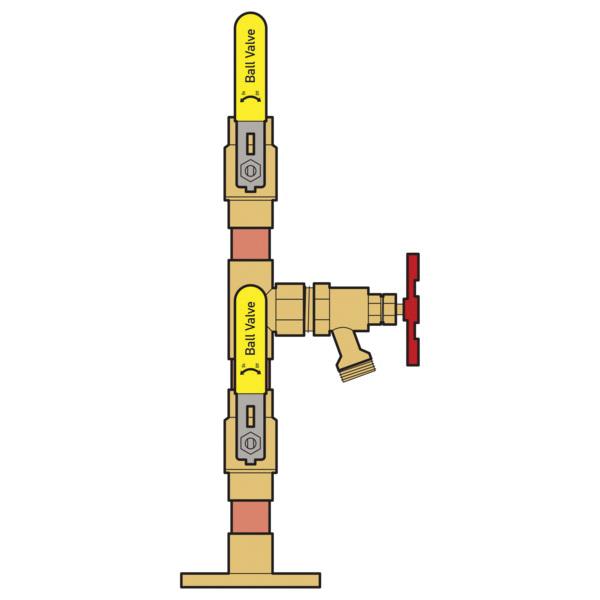

  • Replaces 8 Components
  • Eliminates 7 Leak Paths
  • This valve is actuated by a blowout proof stem
  • Adjustable Packing Gland
