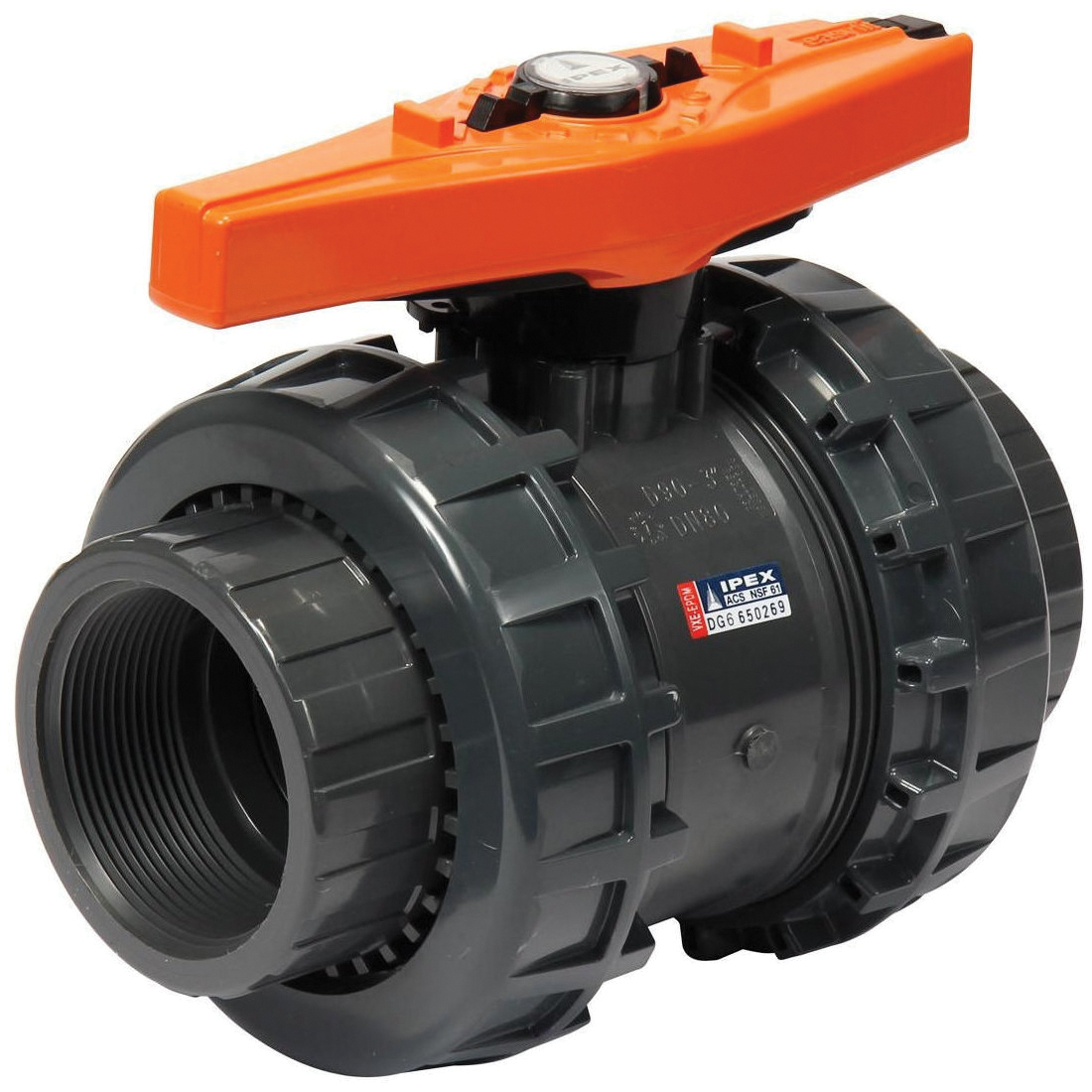

Xirtec® VXE Series 353017 Ball Valve, 3 in, FNPT, PVC, 150 psi
- Manufacturer: IPEX®
- Brand Name: Xirtec®
- Part#: PVCVXFV2-3
- MPN: 353017
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
These cutting edge valves feature an ultra-compact double block design, and full port bi-directional operation. The true union design allows the valve to be easily removed from the piping system and fully serviced. A threaded seat stop carrier provides improved seal integrity under tough service conditions while the EasyFit multifunction handle doubles as a tool for ball seat adjustment, and for tightening union nuts precisely. This PVC valve features PTFE seats, EPDM seals and threaded end connections.
Aliaxis Group SA Xirtec, VXE Series, 353017, Ball Valve, 3in, FNPT, PVC, 150psi
| Ball Material | : | PVC |
| Body Material | : | PVC |
| Color | : | Dark Gray |
| Connection Type | : | FNPT |
| Flow Coefficient (Cv) | : | 487.2 Cv |
| Handle Material | : | PVC |
| Inlet to Outlet Length | : | 9.76 in |
| Material Standard | : | ASTM D2464, ASTM F1498 |
| Nominal Size | : | 3 in |
| Port Type | : | Full |
| Pressure Rating | : | 150 psi |
| Seal Material | : | EPDM |
| Seat Material | : | PTFE |
| Series | : | VXE Series |
| Stem Material | : | PVC |
| Temperature Rating | : | 73 deg F |
| Top to Inlet Center | : | 5.95 in |
- Rated up to 232 psi at 73 Degrees F and available in sizes 3/8" to 4"
- Ultra-compact valves
- Full-port, bi-directional double block design
- EasyFit multifunction handles doubles as a tool for ball seat adjustment
