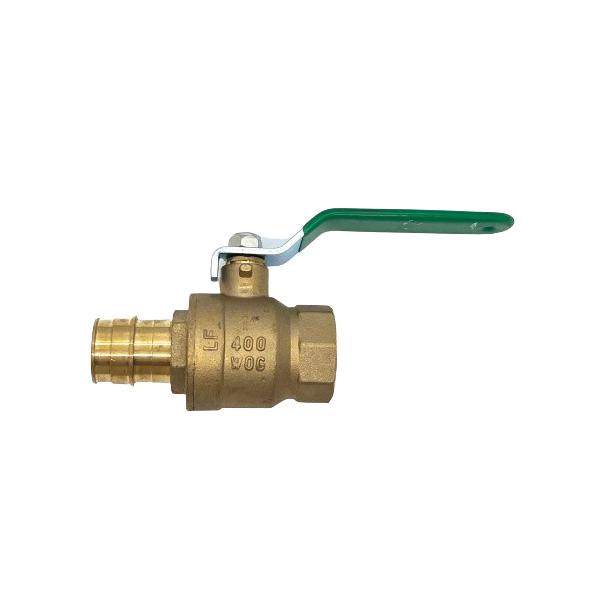

Eastern Foundry and Fitting EFFNU-LF Series EFFNU-02-LF Ball Valve, 3/4 in, PEX x FNPT, Brass, 400 psi
- Manufacturer: Eastern Foundry and Fitting Inc
- Brand Name: Eastern Foundry and Fitting
- Part#: EFFEFFNU-02-LF
- MPN: EFFNU-02-LF
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Eastern Foundry and Fitting Ball Valve, EFFNU-LF Series, 3/4 in Nominal, PEX x FNPT Connection, 400 psi, Gas, Oil, Water Media, 4.075 in Inlet to Outlet Length, 2.283 in Top to Inlet Center, 0.748 in Opening, Material Standard: C46400, Brass Body, PTFE Seat, Brass Stem, EPDM/NBR Seal, Steel Handle, Stainless Steel Ball, EPDM/NBR Softgoods, Lead-Free, Additional Information: 2-Piece
| Additional Information | : | 2-Piece |
| Ball Material | : | Stainless Steel |
| Body Material | : | Brass |
| Connection Type | : | PEX x FNPT |
| Handle Material | : | Steel |
| Inlet to Outlet Length | : | 4.075 in |
| Lead-Free/Contains Lead | : | Lead-Free |
| Material Standard | : | C46400 |
| Media | : | Gas, Oil, Water |
| Nominal Size | : | 3/4 in |
| Opening Size | : | 0.748 in |
| Pressure Rating | : | 400 psi |
| Seal Material | : | EPDM/NBR |
| Seat Material | : | PTFE |
| Series | : | EFFNU-LF Series |
| Softgoods Material | : | EPDM/NBR |
| Stem Material | : | Brass |
| Top to Inlet Center | : | 2.283 in |
- 2 piece forged brass construction
- Dual PTFE Seats & EPDM O-Rings
- Blow-out proof Triple Seal Stem
- Rust resistant handle
- Stainless steel ball
- Resists Stress Corrosion & De-Zincification
Specification Sheet
