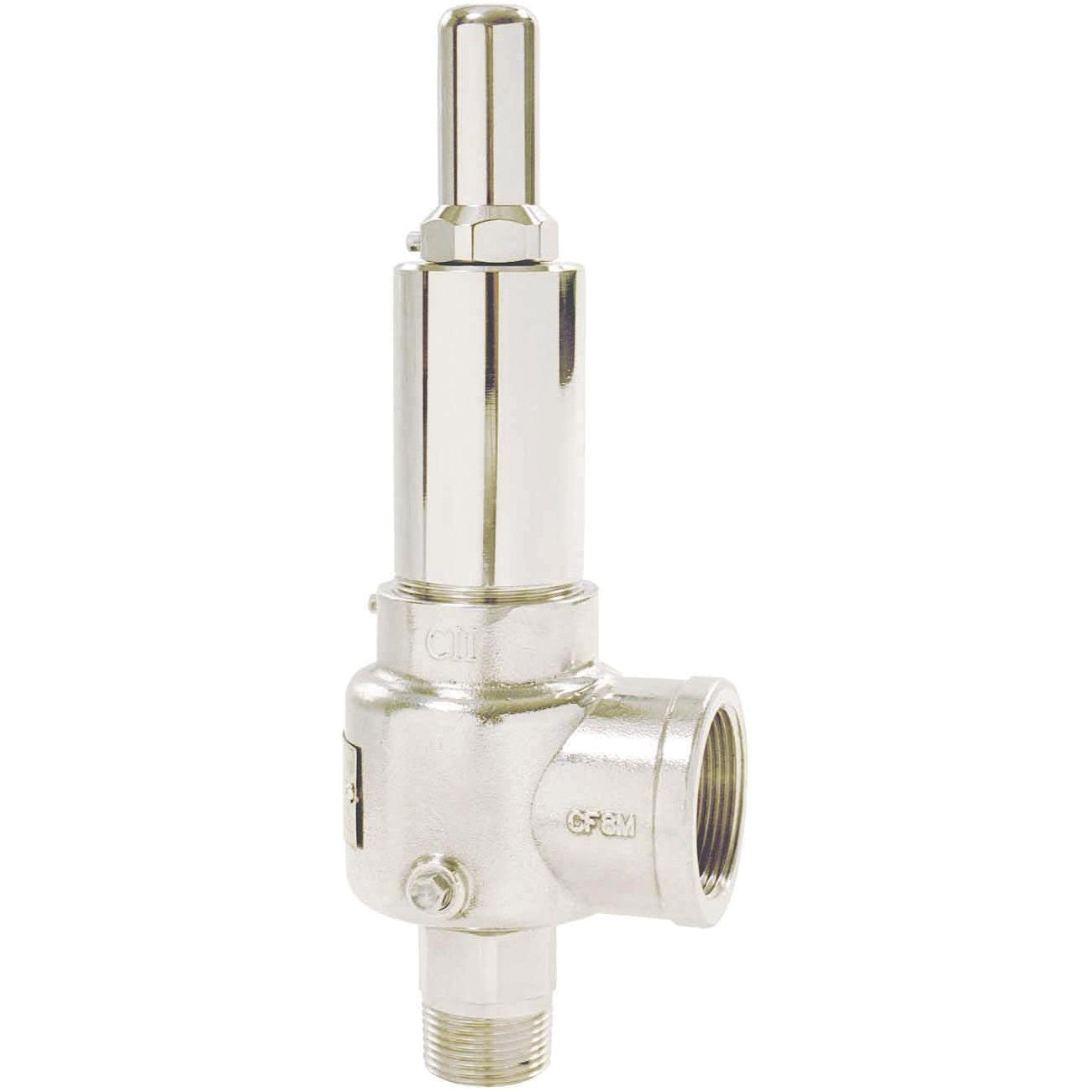

Apollo® 500 Series 511EDBJMAA0050 Safety Relief Valve, 3/4 x 1-1/4 in Nominal, MNPT x FNPT, 50 psi, 800 deg F
- Manufacturer: Aalberts Integrated Piping Systems
- Brand Name: Apollo®
- Part#: APL511EDBJMAA0050
- MPN: 511EDBJMAA0050
- UPC: 670750042591
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
ASME Section VIII capacity certified safety relief valve for overpressure protection of steam, air/gas and liquid systems, pressure vessels, piping and similar equipment.
Apollo® Safety Relief Valve, 500 Series, 3/4 x 1-1/4 in Nominal, MNPT x FNPT Connection, 50 psi, Liquid Media, Bronze Body, Metal Seat, Brass Trim, 800 deg F, 8.45 in H
| Body Material | : | Bronze |
| Connection Type | : | MNPT x FNPT |
| Dimensions | : | 8.45 in H |
| Media | : | Liquid |
| Nominal Size | : | 3/4 x 1-1/4 in |
| Pressure Rating | : | 50 psi |
| Seat Material | : | Metal |
| Series | : | 500 Series |
| Temperature Rating | : | 800 deg F |
| Trim Material | : | Brass |
- ASME Section VIII Certified Capacities
- 5-1200 psig Set Pressures @ 800 deg F
- 1/2" - 2" Inlet Connections
- Lapped Metal Seats; O-ring and PCTFE Seats Optional
- Screwed Cap or Packed Lift Lever Configuration
Specification Sheet
