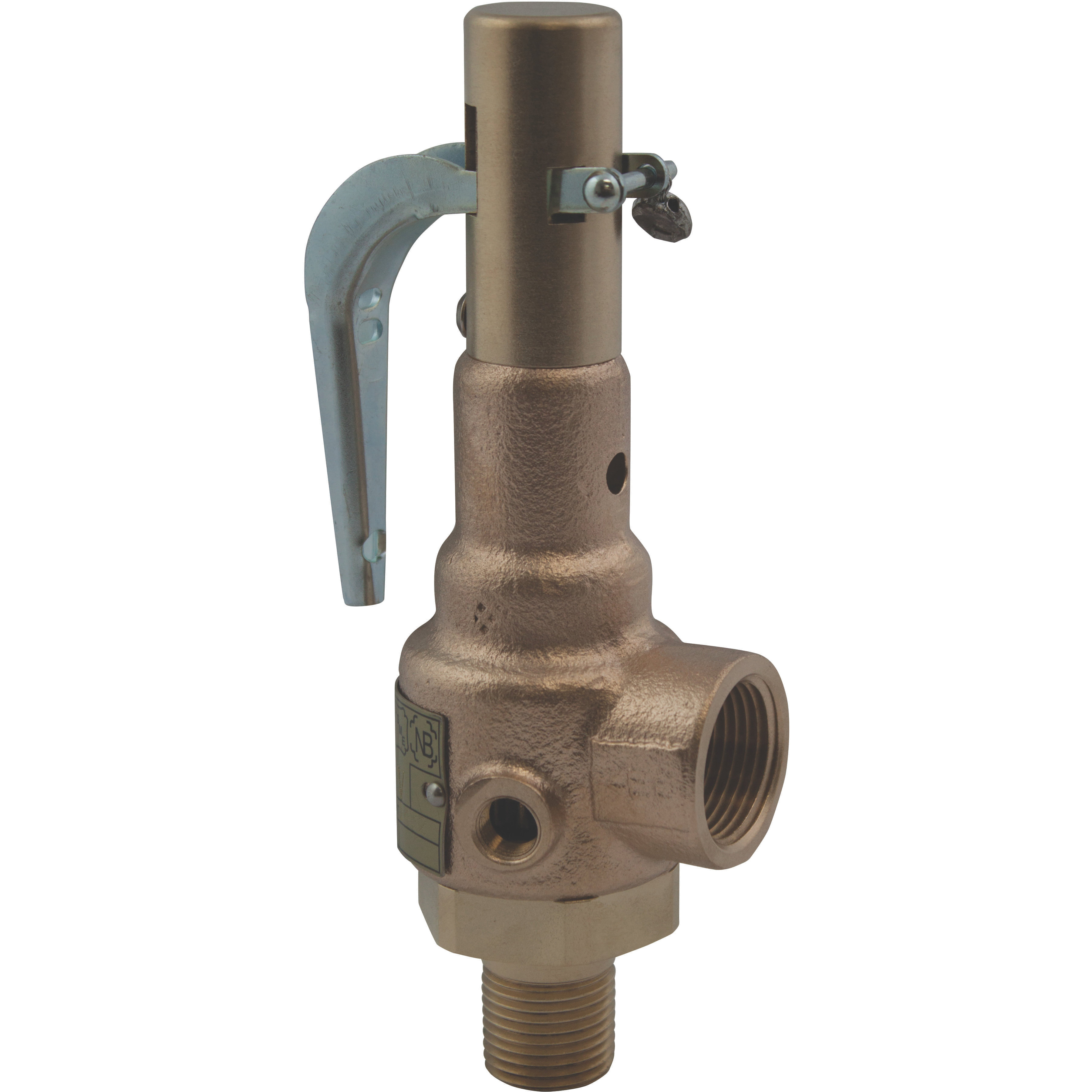

Apollo® 19KHHL125 Safety Relief Valve, 2 in Nominal, MNPT x FNPT, 125 psi, -60 to 406 deg F, Bronze Body
- Manufacturer: Aalberts Integrated Piping Systems
- Brand Name: Apollo®
- Part#: APL19KHHL125
- MPN: 19KHHL125
- UPC: 670750178481
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
ASME Sections I & VIII capacity certified safety valve for overpressure protection of steam power boilers, pressure piping systems, pressure vessels, piping and similar equipment. Suitable for steam, air and non-hazardous gases.
Apollo® Safety Relief Valve, 19 Series, 2 in Nominal, MNPT x FNPT Connection, 125 psi, Steam Media, Bronze Body, PTFE Seat, Brass Trim, Yellow, -60 to 406 deg F, 12 in H
| Body Material | : | Bronze |
| Color | : | Yellow |
| Connection Type | : | MNPT x FNPT |
| Dimensions | : | 12 in H |
| Media | : | Steam |
| Nominal Size | : | 2 in |
| Pressure Rating | : | 125 psi |
| Seat Material | : | PTFE |
| Series | : | 19 Series |
| Temperature Rating | : | -60 to 406 deg F |
| Trim Material | : | Brass |
- ASME Section I & VIII Certified Capacities
- 5 - 300 psig Set Pressures @ -60 deg F min./406 deg F max
- 1/2" - 2-1/2" Inlet Connections Available
- Stainless Steel Wetted Trim (19L, 19S)
- PFA and Metal Seat Styles Available
Specification Sheet
