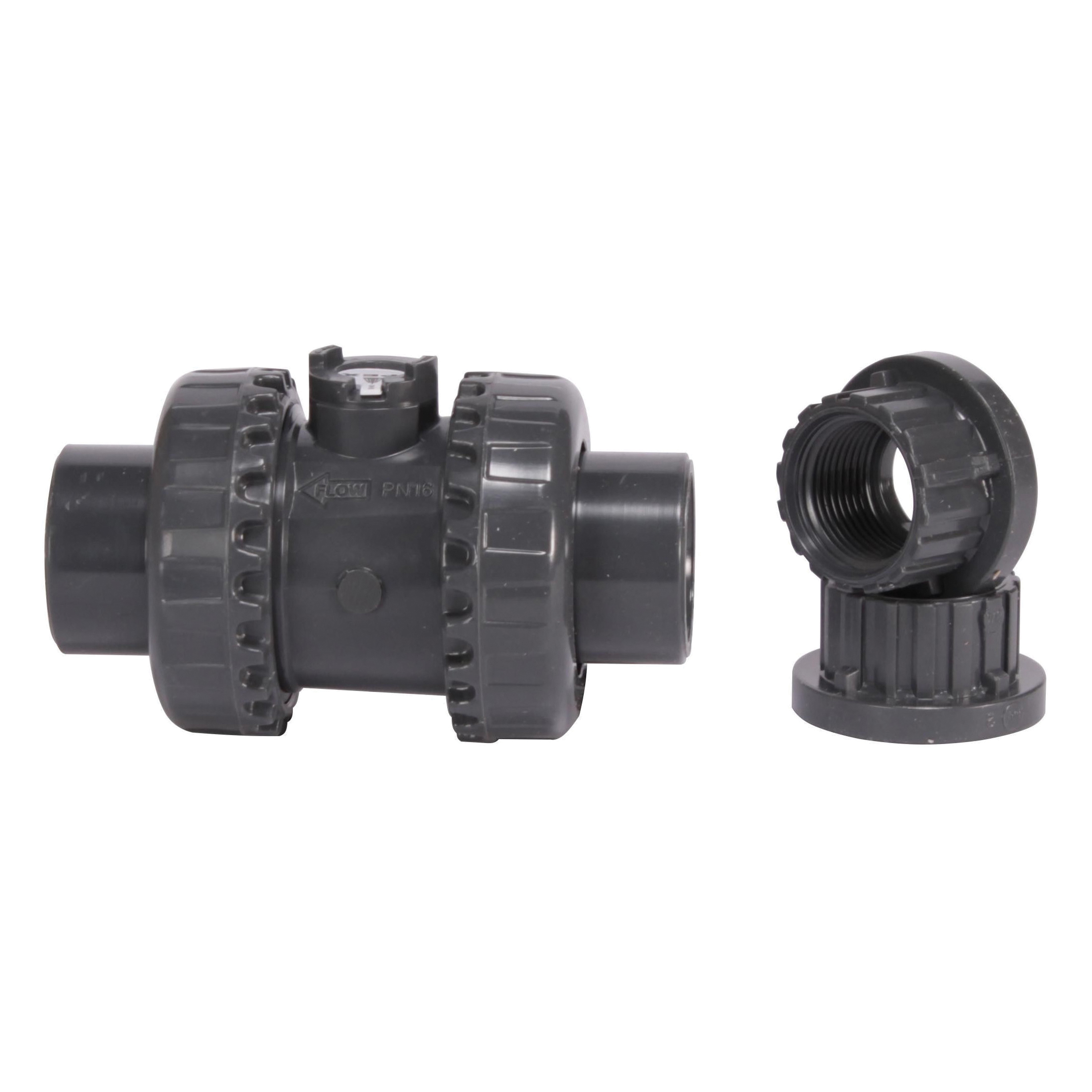

Xirtec® SXE Series 052018 True Union Ball Check Valve, 2 in Nominal, Socket x FNPT, 232 psi, PVC Body
- Manufacturer: Aliaxis Group SA
- Brand Name: Xirtec®
- Part#: PVCVBBV108-2
- MPN: 052018
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The SXE is a complement to the VXE and VEE ball valve product lines, with many of the same features providing trouble free service for industrial, OEM and water service applications. A true union design allows for simple maintenance, while the EasyFit multifunction handle can be used as a tool for ball seal carrier adjustment, and for tightening union nuts precisely. The internal design is optimized for maximum flow and minimum turbulence, preventing ball sticking and chatter. Just a few psi of back pressure for positive shutoff in both vertical and horizontal installations. The SXE valve is made from PVC and uses EPDM seals in combination with its socket and threaded connections.
Xirtec® True Union Ball Check Valve, SXE Series, Socket x FNPT Connection, 2 in Nominal, 232 psi, Water Media, Material Standard: ASTM D1784, PVC Body, EPDM Seal, PVC Ball, Dark Gray
| Ball Material | : | PVC |
| Body Material | : | PVC |
| Color | : | Dark Gray |
| Connection Type | : | Socket x FNPT |
| Material Standard | : | ASTM D1784 |
| Media | : | Water |
| Nominal Size | : | 2 in |
| Pressure Rating | : | 232 psi |
| Seal Material | : | EPDM |
| Series | : | SXE Series |
- Rated up to 232 psi at 73 Degrees F and available in sizes 1/2" to 4"
- Prevents back-flow of process media
- Very little back pressure to seal
- Suitable for vertical and horzontal installations
Catalog
