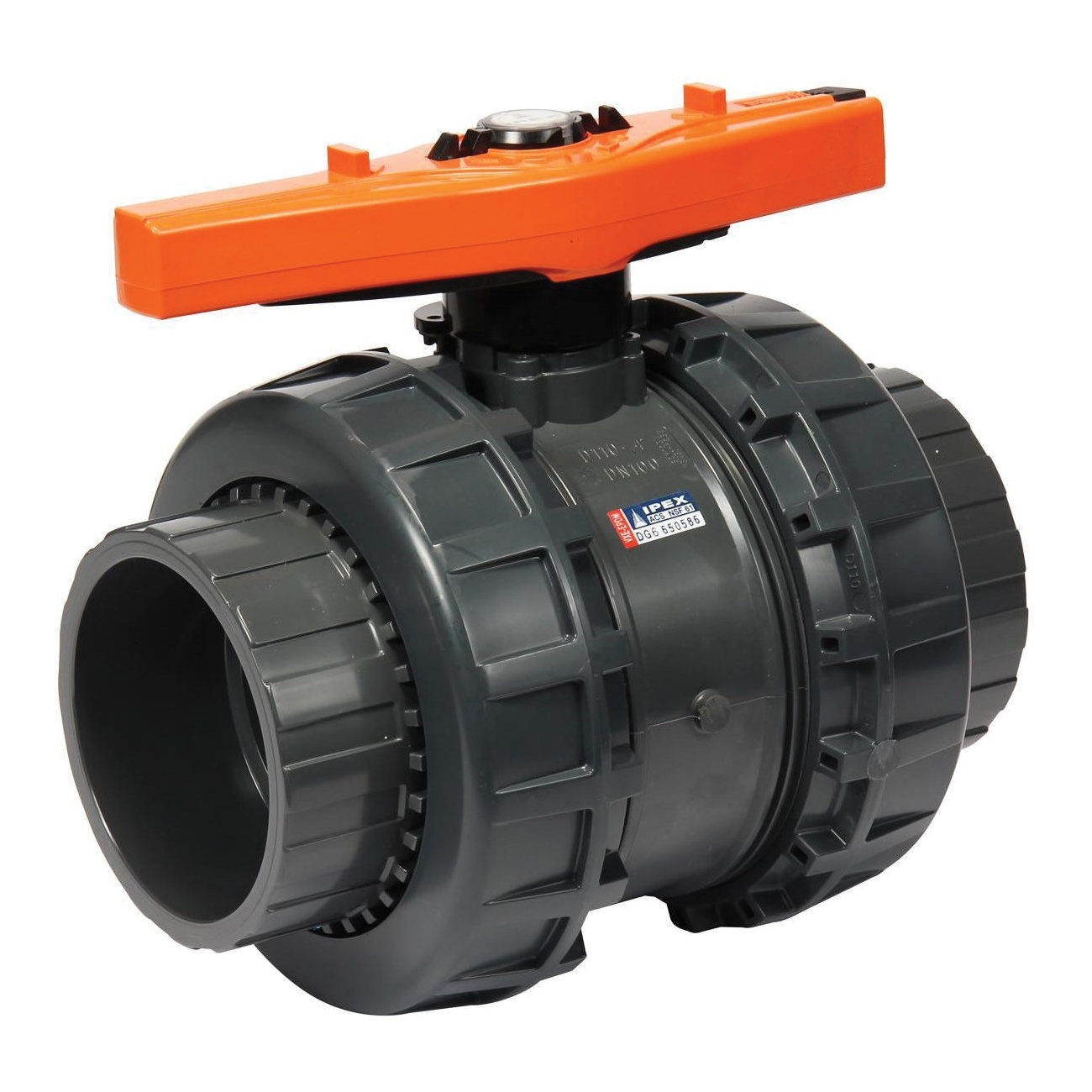

Xirtec® VXE Series 353015 True Union Ball Valve, 4 in IPS Nominal, Socket, 232 psi, T-Handle Operator, PVC Body
- Manufacturer: Aliaxis Group SA
- Brand Name: Xirtec®
- Part#: PVCVXAV1-4
- MPN: 353015
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
These cutting edge valves feature an ultra-compact double block design, and full port bi-directional operation. The true union design allows the valve to be easily removed from the piping system and fully serviced. A threaded seat stop carrier provides improved seal integrity under tough service conditions while the EasyFit multifunction handle doubles as a tool for ball seat adjustment, and for tightening union nuts precisely. This PVC valve features PTFE seats, EPDM seals and socket end connections.
Xirtec® True Union Ball Valve, VXE Series, Socket Connection, Full Port, 4 in IPS Nominal, 232 psi, Water Media, 11.14 in Inlet to Outlet Length, 6.87 in Top to Inlet Center, T-Handle Operator, Material Standard: ASTM D1784, PVC Body, PTFE Seat, PVC Stem, EPDM Seal, PVC Handle, PVC Ball, Dark Gray
| Ball Material | : | PVC |
| Body Material | : | PVC |
| Color | : | Dark Gray |
| Connection Type | : | Socket |
| Handle Material | : | PVC |
| Inlet to Outlet Length | : | 11.14 in |
| Material Standard | : | ASTM D1784 |
| Media | : | Water |
| Nominal Size | : | 4 in IPS |
| Operator Type | : | T-Handle |
| Port Type | : | Full |
| Pressure Rating | : | 232 psi |
| Seal Material | : | EPDM |
| Seat Material | : | PTFE |
| Series | : | VXE Series |
| Stem Material | : | PVC |
| Top to Inlet Center | : | 6.87 in |
- Rated up to 232 psi at 73 Degrees F and available in sizes 3/8" to 4"
- Ultra-compact valves
- Full-port, bi-directional double block design
- EasyFit multifunction handles doubles as a tool for ball seat adjustment
