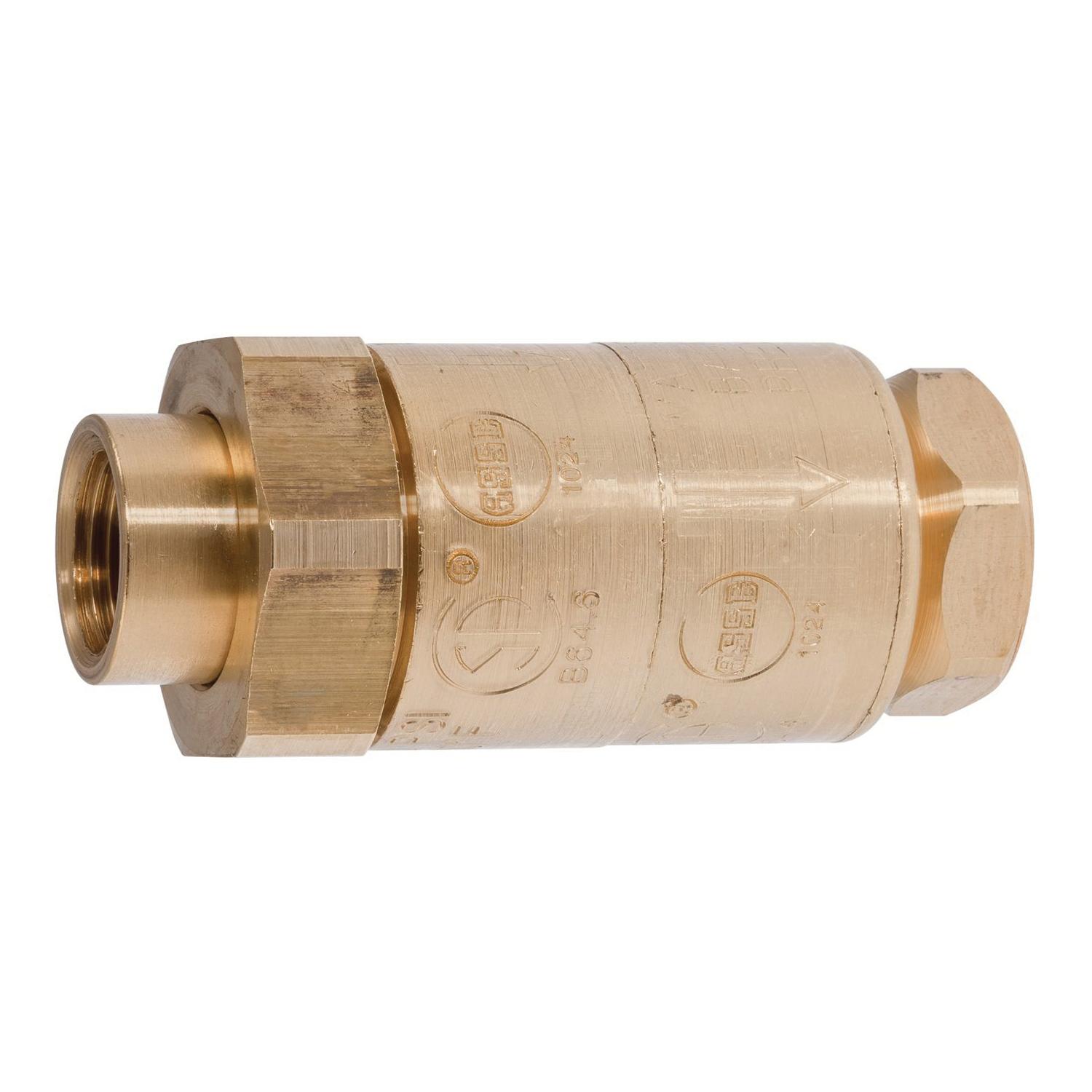

WATTS® 7 Series 0061851 Backflow Preventer, 3/8 in, Contains Lead
- Manufacturer: Watts Water Technologies
- Brand Name: WATTS®
- Part#: WTS7U2-2-38
- MPN: 0061851
- UPC: 098268003970
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
This 3/8 in, Series 7, dual check valve backflow preventer prevents the reverse flow of polluted water from entering into the drinking water supply at the service entrance or at individual outlets. It consists of a chrome-plated brass body construction, with two independently operating check valves and stainless steel springs. The valve is designed for non-health hazard residential water system containment, continuous pressure applications, such as wash down sinks with a hose type device. Check with local inspection authorities for installation requirements. Minimum working pressure is 10 psi (69 kPa). Maximum working pressure is 150 psi (10 bar). Maximum recommended flow is 15 gpm (57 Lpm).
WATTS® Backflow Preventer, 7 Series, 3/8 in Nominal, 150 psi Pressure, 15 gpm Flow Rate, Media: Water, Bronze Body, Lead-Free/Contains Lead: Contains Lead, 33 to 180 deg F
| Body Material | : | Bronze |
| Flow Rate | : | 15 gpm |
| Lead-Free/Contains Lead | : | Contains Lead |
| Media | : | Water |
| Nominal Size | : | 3/8 in |
| Plumbing and Flow Control | : | Plumbing and Flow Control |
| Pressure Rating | : | 150 psi |
| Series | : | 7 Series |
| Temperature Rating | : | 33 to 180 deg F |
- Compact design
- Handheld sprayers
